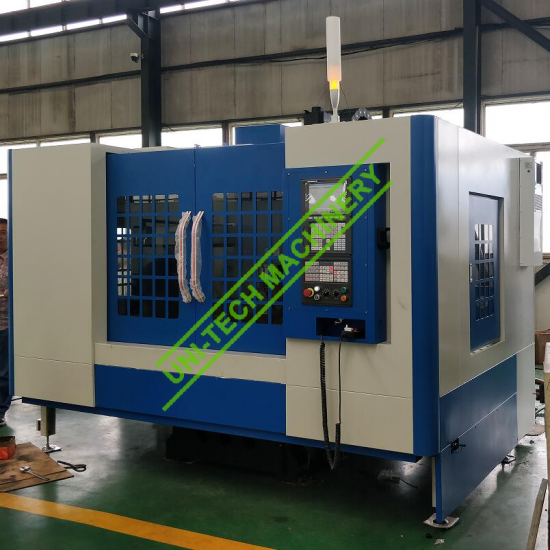

CNC Milling Machine VMC1160

CNC Milling Machine VMC1160

STANDARD  CONFIGURATION：
Taiwan HIWIN or Yintai 3-axis 45mm roller linearway
Taiwan HIWIN or Yintai  Leadscrew
Imported Bearing
Taiwan spindle unit BT40-150/8000rpm
Taiwan Tool Magazine(ARM type 24 tools)
Electrical box open the door and power off
Schneider + Delixi Electric
GSK218 system
Main motor 11KW

Category:
Tags:

Description

ltem Unit VMC1160
Worktable size mm 1200*600
T-slot(N*W*D) mm 5-18-100
Max. load bearing of worktable Kg 800
X axis travel mm 1100
Y axis travel mm 600
Z axis travel mm 600
Distance from column front to Spindle center mm 650
Distance from table top surface to Spindle nose mm 120-720
Spindle hole taper BT40-150
Spindle power KW 11
Max. Spindle speed rpm 8000
X axis 2 guideways
Y axis 2 guideways
Z axis 2 guideways
X/Y/Z NM 18/18/28
Max. feed speed mm/min 0-10000
Rapid feed speed (XYZ) mm/min 24/24/24
Positioning accuracy(XYZ) mm 0.005
Re-positioning accuracy(XYZ) mm 0.003
Tool Magazine
Tool magazine capacity 24
Tool chinge time(T-T) s 2.5
Machine dimension mm 2400*2280*2540
L*W*H
Machine weight Kg 5500
