Name: Vertical Machine Center USK420
SKU: 4210
Availability: InStock

Vertical Machine Center USK420

Features:

1.The base, slide, table, column, headstock and other major parts are made of HT250 cast iron base.

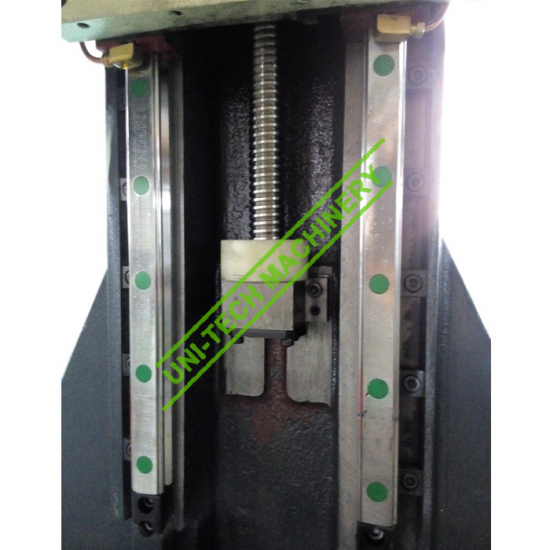

2.Linear guide way are from Taiwan HIWIN.

3.Z axis balance with weights to ensure smooth movement of the headstock, stable.

4.The spindle unit maximum speed up to 10000rpm.

5.X,Y,Z axis screw protection devices to ensure clean screw and guide.

6.Full protection cover, more safe and reliable.

7.Reliable centralized lubrication system.

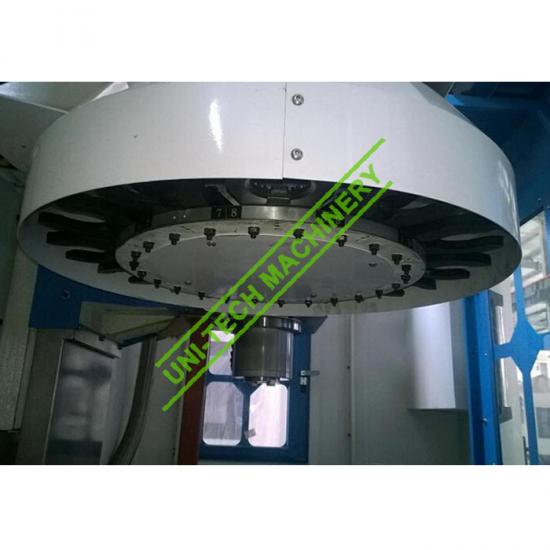

8.Using10 tools funnel type tool changer from Taiwan, time is short, high efficiency.

9.Using the oil-water separation device can be collected most of the lubricating oil is separated from the coolant.

Description

Model					USK420
ITEM					Specification
Table size L(mm)×W(mm)					800×260
T slot QTY /width/interval distance(mm)					5-16-50
Maximum load(KG)					150
X travel (mm)					410
Y travel (mm)					260
Z travel (mm)					410
Spindle nose to table (mm)					70-480
Spindle center to column (mm)					315
Spindle taper					BT30
Max. spindle speed (Rpm)					8000
Main motor (kW)					2.2
Feed motor		System			GSK	Siemens
		X torque(N.M)			6	5
		Y torque(N.M)			6	5
		Ztorque(N.M)			6	6
		Max.install size		XY	Square 110×11diameter φ95
				Z	Square 130×130diameterφ110
Rapid moving speed (m/min. )					10
Cutting speed (mm/min)					1-4000
Ball screw (diameter mm/pitch )mm					20/5
					25/5
Linear guide way width( mm)					20
					25
Accuracy	Positioning accuracy (mm)				0.016
Tool changer	Repeatability accuracy (mm)				0.008
	Funnel type (optional ) BT30				12
	Tool changing time (s)				8
Air pressure Mpa					0.6
Machine weight (kg)			Frame		800
			Complete machine		1300
Machine overall size :L(mm)×W(mm)×H(mm)			Frame		830×1000×1800
			Complete machine		1900×1400×2100
