Name: Electric Stacker CDD10B,CDD15B.CTD10B,CTD15B
SKU: 3145
Availability: InStock

Electric Stacker CDD10B,CDD15B.CTD10B,CTD15B

Features:

1. Compact design with strong European steel construction.

2. Simple and convenient lifting operating system.

3. Light and easy manual steering system, equipped with a parking brake.

4. Smooth control of precise lifting and lowering.

5. Special design are available according to customers’ requirements.

Remark:

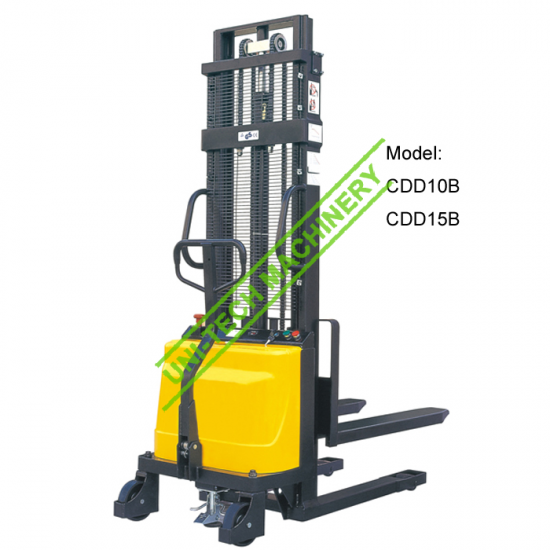

CDD series are with fixed legs & fixed forks.

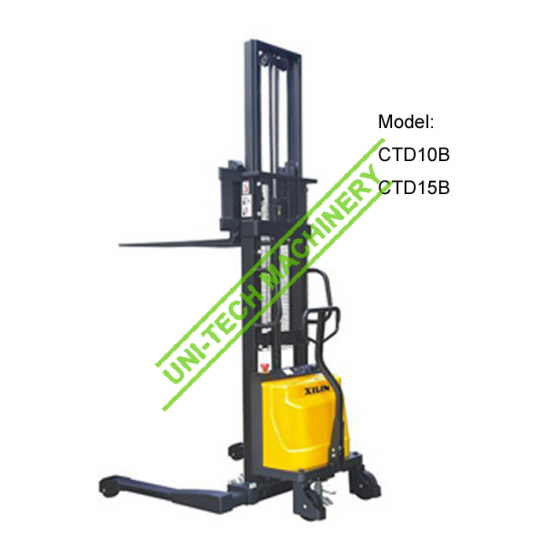

CTD series are with straddle legs & adjustable forks.

Description

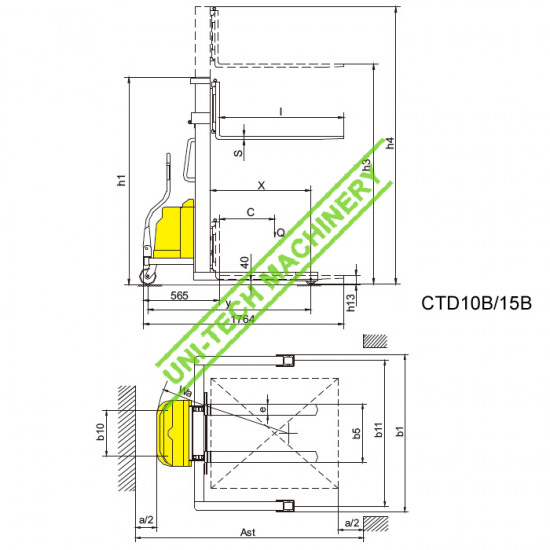

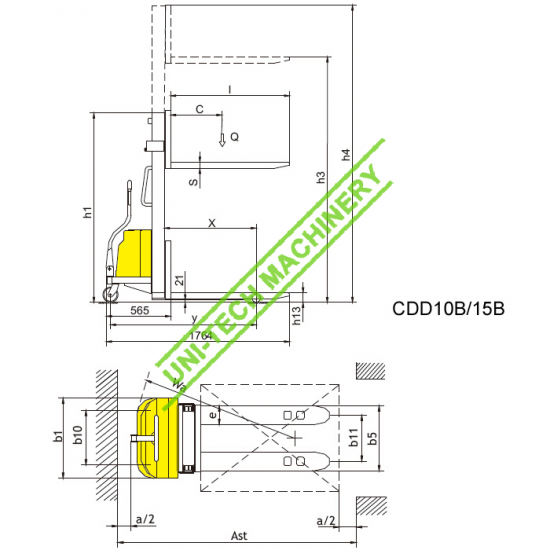

Model	Unit	CDD10B	CDD15B	CTD10B	CTD15B
Capacity	Q(kg)	1000	1500	1000	1500
Load centre distance	c(mm)	500		600
Load distance, centre of drive axle to fork	x(mm)	815		800
Lowered fork height	h13(mm)	90		70
Max. lift height	h3(mm)	1600/2500/3000/3300		1600/2500/3000/3300/3500
Height, mast lowered	h1(mm)	2090/1840/2090/2200		2145/1895/2145/2295/2395
Height, mast extended	h4(mm)	2090/2997/3497/3797		2145/3052/3552/3852/4052
Fork dimensions	s/e/l(mm)	60/170/1070(1150)		35/100/1070(1150)	35/100/1070(1150)
Overall width	b1(mm)	722		1132-1532
Width overall forks	b5(mm)	580/695		200-800	200-800
Aisle width for pallets 800×1200 lengthways	Ast(mm)	2188/2258		2142	2212
Turning radius	Wa(mm)	1340/1410		1340	1410
Lift speed, laden/unladen	m/s	0.08/0.1		0.08/0.1
Lowering speed, laden/unladen	m/s	0.15/0.12		0.15/0.12
Battery voltage, nominal capacity K5	V/Ah	12/200	24/200	12/200	24/200
Battery weight	kg	60	120	60	120
Battery dimensions l/w/h	mm	250x190x295		250×190×295
Service weight(with battery)	kg	420/480/500/550	580/660/680/700	490/550/570/580/650	580/630/660/680/690
