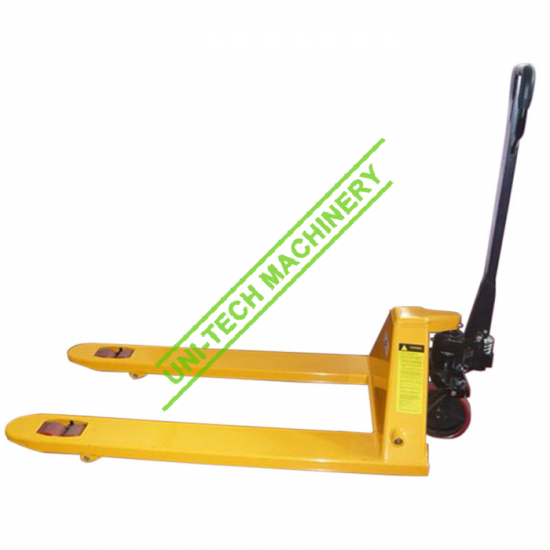

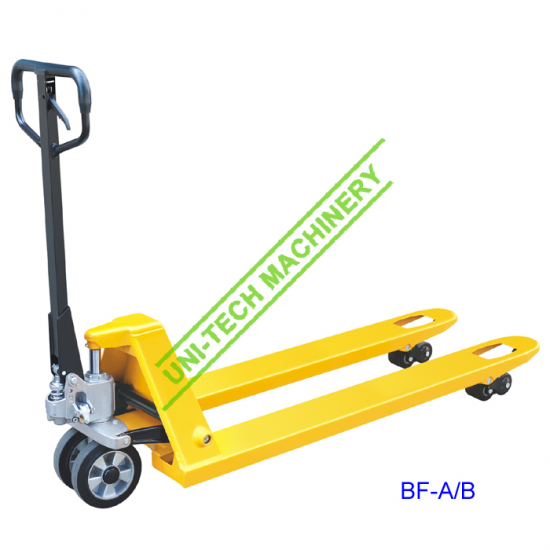

Hand Pallet BF-A;BF-B

Features:

1. 3 position hand control-Raise, Lower, Neutral.

2. 12 lubrication grease nipples on all movable parts for easy maintenance.

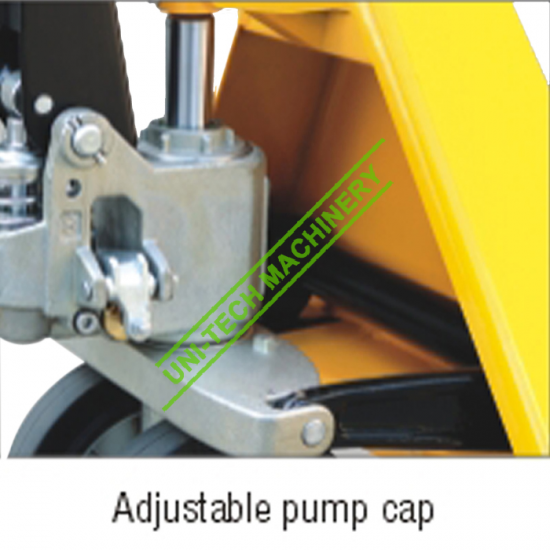

3. Adjustable pump cap ensures a long service life.

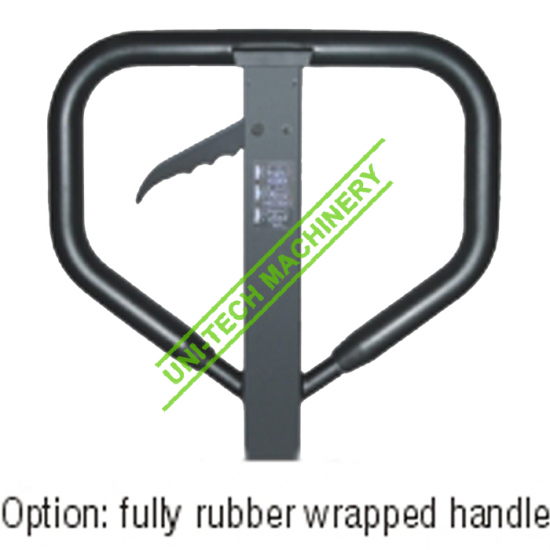

4. Ergonomic large rubber handle with three control lever.

5. Supporting base: The new type is thicker in case of bending problems.

6. Forks: The thickness of the new type is 53mm to make strength increased.

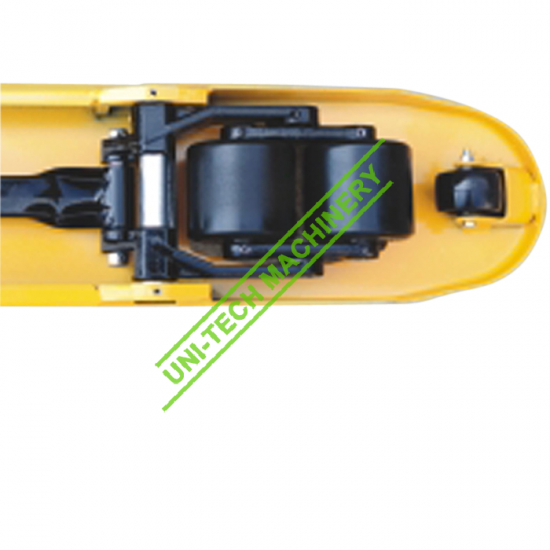

7. Great innovation on part of wheel frame:

    A. The new type wheel frame enhances strength to prevent distortion problems.

    B. The new type frame without roll ring & roll sheath.

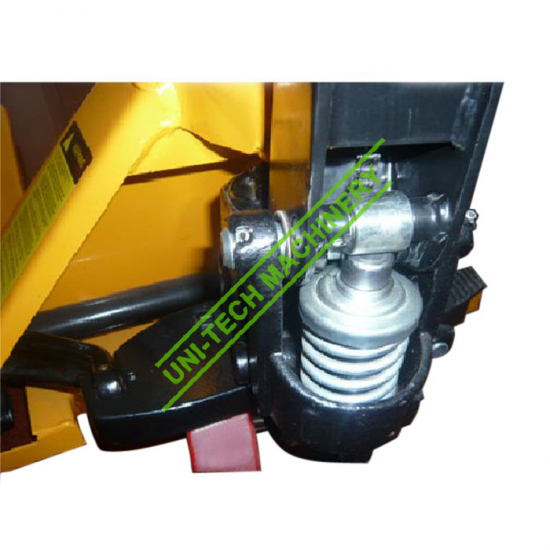

    C. Adopts double-spring pins construction with strengthening ribbing under triangle to prevent pin snipping problems.

8. With copping supporting NOG & strengthening ribbing under top triangle cover.

9. Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.

10. 210 steering arc, and small turning radius.



Category:

Description

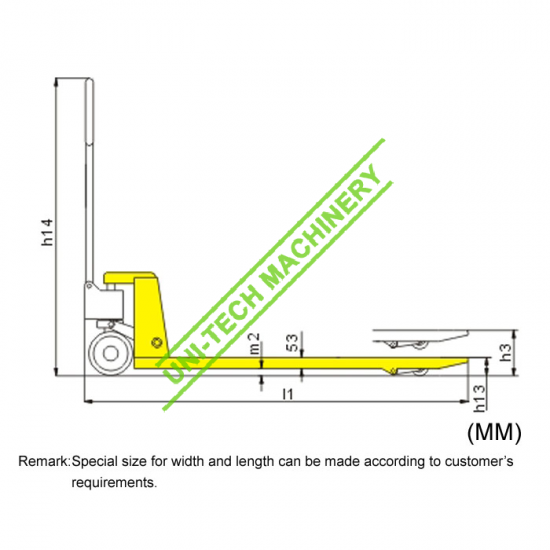

Model Unit BF-A BF-B
Capacity Q(kg) 2500/300 2500/300
Lowered fork height h15(mm) 85 75
Steering wheel mm 200 180
Fork wheel single mm 80×93 74×93
Fork wheel tandem mm 80×70 74×70
Max. lift height h3(mm) 200 190
Total height h14(mm) 1224 1214

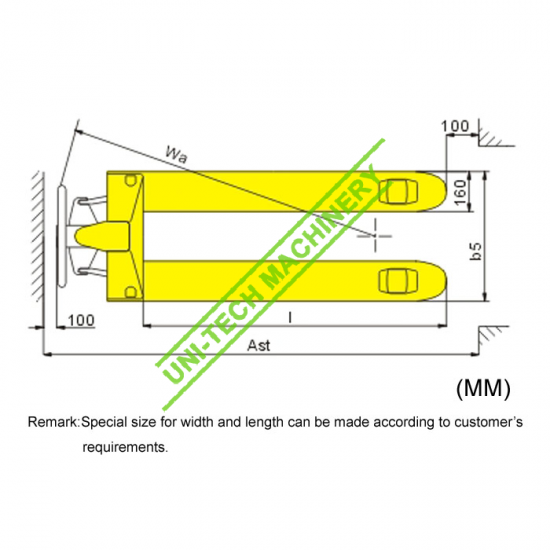

Overall length l1(mm) 1483/1533/1603 1483/1533/1603
Fork length l(mm) 1100/1150/1220 1100/1150/1220
Width overall forks b5(mm) 520/550/685 520/550/685
Ground clearance, center of wheel base m2(mm) 32 22
Aisle width for pallets 1000×1200 cross ways Ast(mm) 1733/1733/1803 1733/1733/1803
Aisle width for pallets 800×1200 length ways Ast(mm) 1883/1783/1803 1783/1783/1803
Turning radius W3(mm) 1216/1266/1336 1216/1266/1336
Service weight kg 63-75 63-75
