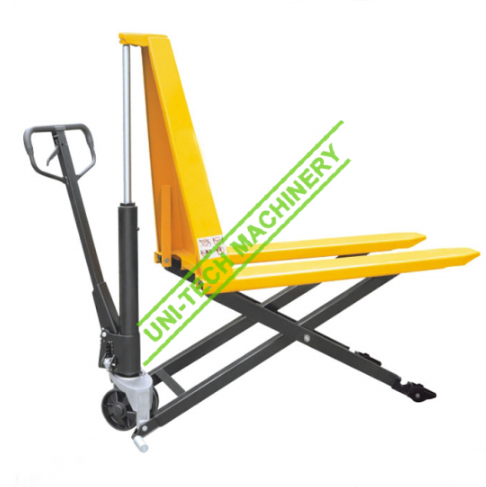

High Lift Chuck HLC7

Name: High Lift Chuck HLC7
SKU: 3102
Availability: InStock

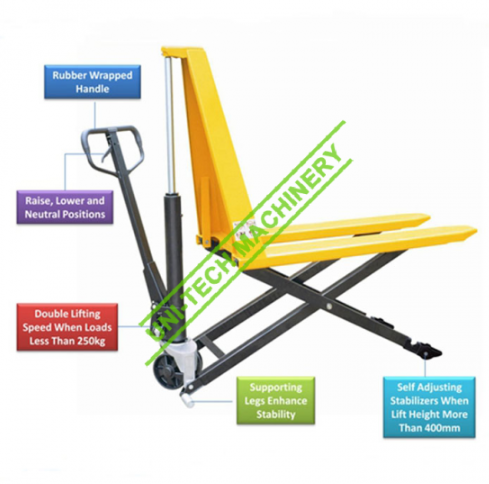

Features:

1. The manual high lift pallet truck offers the user an efficient and versatile tool for material handling.

2. Improved safety: Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm for maximum stability.

3. Great ability: Extra long front legs increase the stability when handling unevenly loaded pallets.

4. Quick-lift operation: Quick-lift function doubles the lifting speed when lifting loads less than 250kg.

5. Easy maneuvering of loads throughout work place.

6. Easy placing of load to correct ergonomic work height.

Description

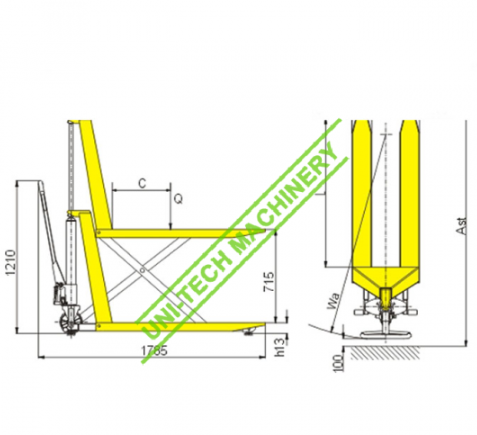

Model	Unit	HLC7
Capacity	Q(kg)	1000
Lowered fork height	h15(mm)	85
Steering wheel	mm	180×50

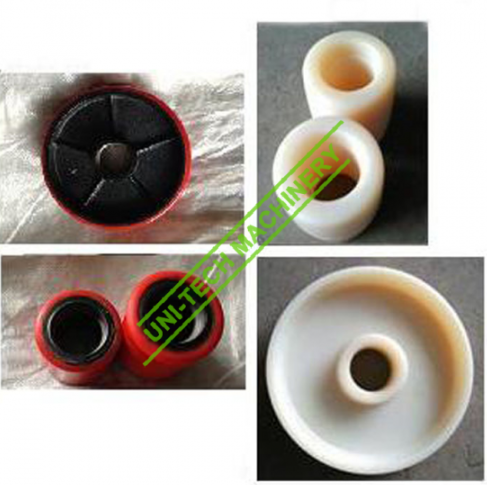

Fork wheel	mm	74×50
Fork wheel length	mm	1220
Width overall forks	b5(mm)	550/685
Aisle width for pallets 1000×1200 cross ways	Ast(mm)	1985
Aisle width for pallets 800×1200 length ways	Ast(mm)	1985
Turning radius	W3(mm)	1670
Service weight	kg	112

Features:

1. The manual high lift pallet truck offers the user an efficient and versatile tool for material handling.

2. Improved safety: Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm for maximum stability.

3. Great ability: Extra long front legs increase the stability when handling unevenly loaded pallets.

4. Quick-lift operation: Quick-lift function doubles the lifting speed when lifting loads less than 250kg.

5. Easy maneuvering of loads throughout work place.

6. Easy placing of load to correct ergonomic work height.

Model	Unit	HLC7
Capacity	Q(kg)	1000
Lowered fork height	h15(mm)	85
Steering wheel	mm	180×50
Fork wheel	mm	74×50
Fork wheel length	mm	1220
Width overall forks	b5(mm)	550/685
Aisle width for pallets 1000×1200 cross ways	Ast(mm)	1985
Aisle width for pallets 800×1200 length ways	Ast(mm)	1985
Turning radius	W3(mm)	1670
Service weight	kg	112
