Low Position Transmission Jack TL07 Series

Main Features:

1.    Includes 360° swivel handle for use in the most restricted working areas

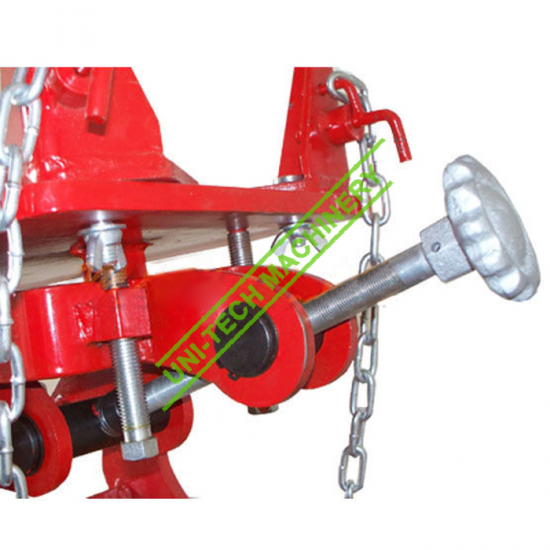

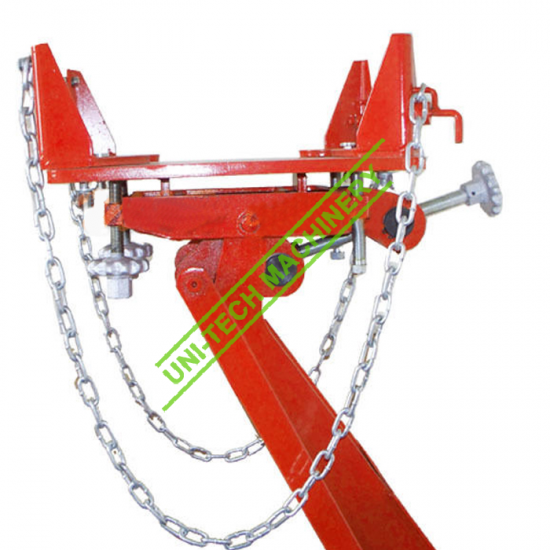

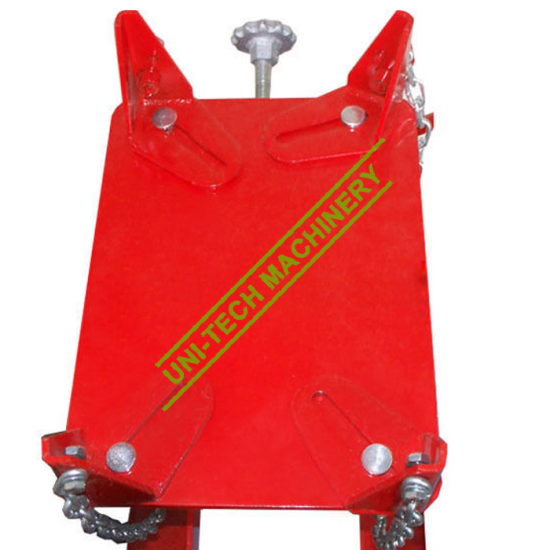

2.    Universal mounting head provides a wide tilt range

3.    Included safety chains make it easy to secure the transmission to the jack

4.    Low profile design with 4heavy-duty steel swivel casters for easy positioning and effortless maneuvering throughout the shop

5.    Wide base provides exceptional stability

6.    Constructed with a heavy duty steel frame

7.    Extra-long handle included for easy pumping force

8.    Integrated overload protection valve keeps from overloading the system

9.    Spring return ram speeds up your work

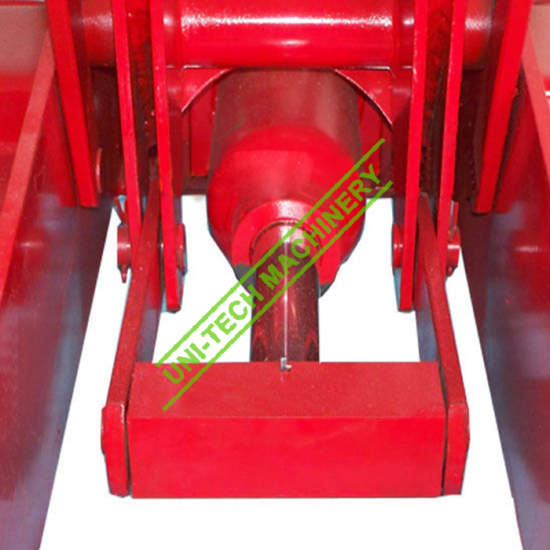

10.  High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life

11.  Polished inner cylinder walls extend the life of the hydraulic seals to minimize abrasion and wear

12.  The cylinder ram and pistons are polished and chromed

13.  Guided by high performance seals, wear rings and dust seals

Description

Model Min. height
(mm)
Max. height
(mm)
Max. lifting
weight(Ton)
Packing size(mm) GW/NW(kg)

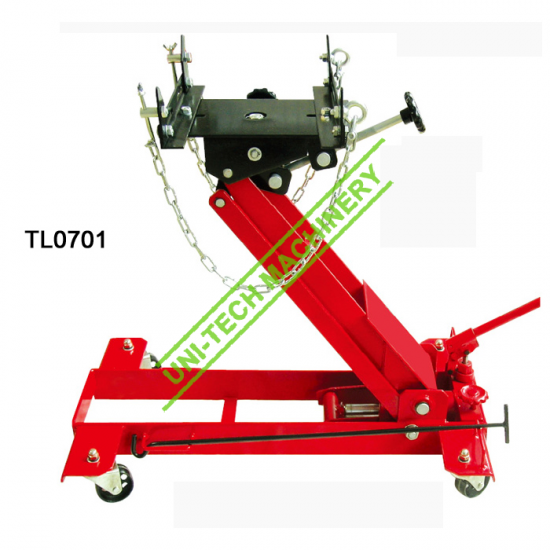

TL0701 170 680 0.5 650x565x85
1260x220x160
60/58

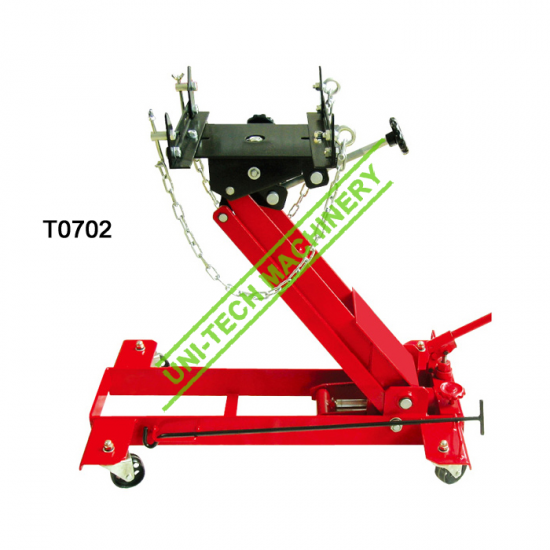

TL0702 230 760 1 650x565x85
1390x270x170
79/74

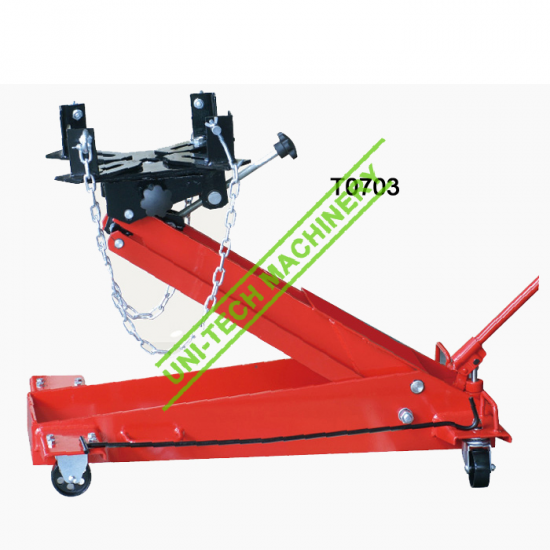

TL0703 230 880 1.5 850x565x85
1430x270x170
83/80
TL0704 230 880 2 710x180x160
1330x830x110
1420x300x210
133/130
