Tube and Profile End Grinder PRS-76,PRS-76A,PRS-76C

Features:

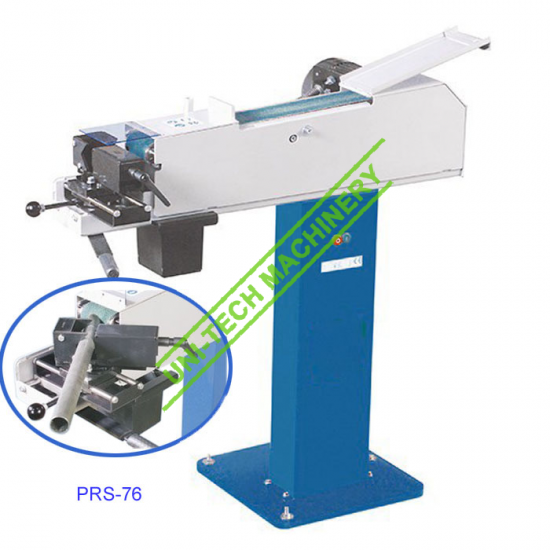

1.PRS-76

1) Easy operation, rotating design.

2) Grinds at any angle from 30° to 90°.

3) Grinds any diameter from 20 to 76mm.

4) Grinds all major materials.

5) Suitable for tubes and profiles.

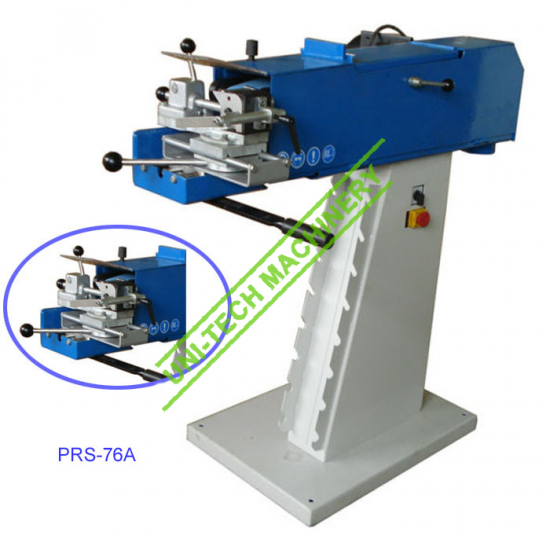

2.PRS-76A

1) Steady Tri-angle stand with 8 sets roller holder.

2) 2 optional speeds fulfill different requirements.

3.PRS-76C

1) Combination of tube grinding, surface grinding and wheel grinding three functions.

2) With double speed motor, forward and reverse control.

3) Grinds at any angle from 30° to 90°.

4) Grinds any diameter from 20-76mm.

5) With dust collector connector.



Category:
Tags:

Description

Item PRS-76 PRS-76A PRS-76C
Motor power 3 kw 2.2/2.8kw 2.2/2.8kw
Adjustable slide 200x75mm 200x75mm 200x75mm
Grinding areas 30°~90° 30°~90° 30°~90°
Speed 2800rpm 2800rpm 2800rpm
Belt size 100x2000mm 100x2000mm 100x2000mm
Belt speed 30m/sec 15m/sec,30m/sec 15m/sec,30m/sec
Packing size 130x56x46cm 137x62x66cm 137x62x66cm
N.W./G.W. 168/196kgs 178/208kgs 188/218kgs
