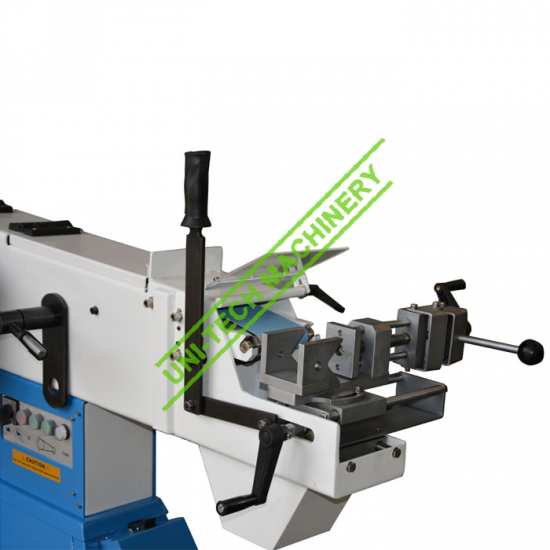

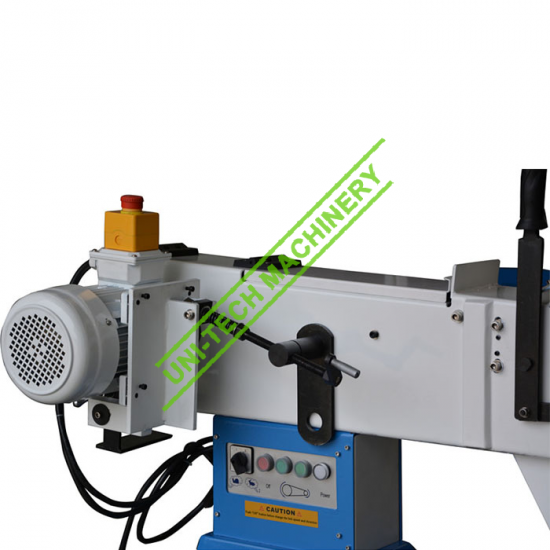

Tube and Profile End Grinder PRS-76D

Features:

1. Combination of tube grinding, surface grinding and wheel grinding three functions.

2. With double speed motor, forward and reverse control.

3. Grinds any diameter form 20-76mm.

4. Grinds at any angle from 30 to 90 degree.

5. Motor power: 3KW/2.4KW.

6. With separate emergency stop switch.

7. Standard accessories including one set of rollers.

8. It can sand in front and on back.

9. With CE standard (CE electric control box).

Category:
Tags:

Description

Model PRS-76D
Belt dimension  100x2000mm
Motor rating  3kw/2.4kw
Speed 2905rmp
Belt speed 30m/s
Grinding area  Ф20-76mm
Adjustable slide 30℃-90℃
Dimension  1220X550X650mm
Packing size  130×76×76cm
Weight  178/206kg
