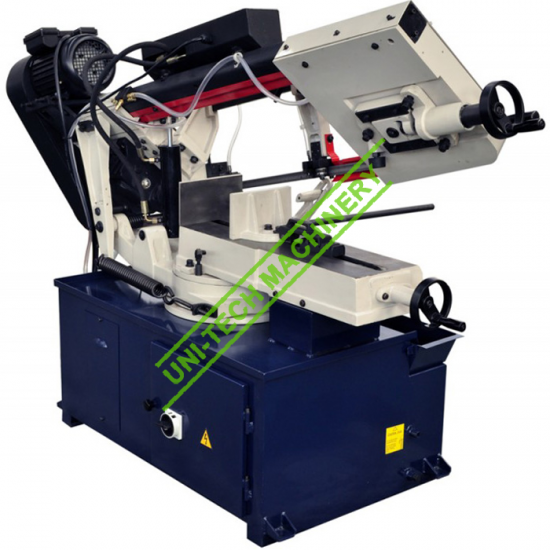

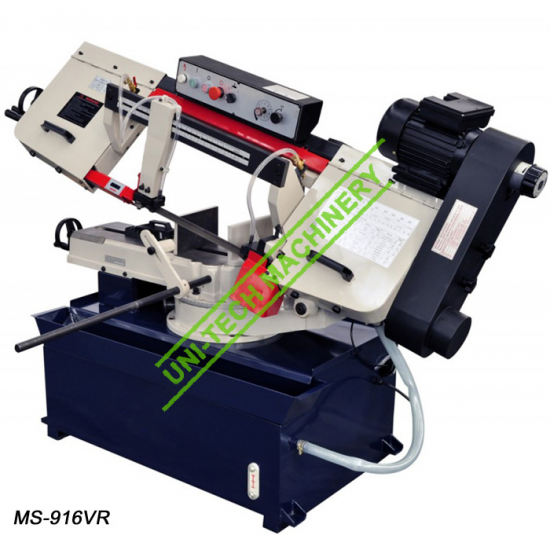

Band Sawing Machine MS-916

Main Features:

1. Maximum capability 9″

2. Featured in variable speed

3. The quick clamps can be rotated from 0° to 45°

4. High-capacity due to controlled by motor

5. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.

6. Has a sizing device (the machine will automatically stop after sawing materials)

7. With power break protection device, machine will power off automatically when the rear protective cover is opened

8. With cooling system, can prolong the service life of saw blade and improve the precision of work piece

9. Equipped with a block feeder (with fixed sawing length)

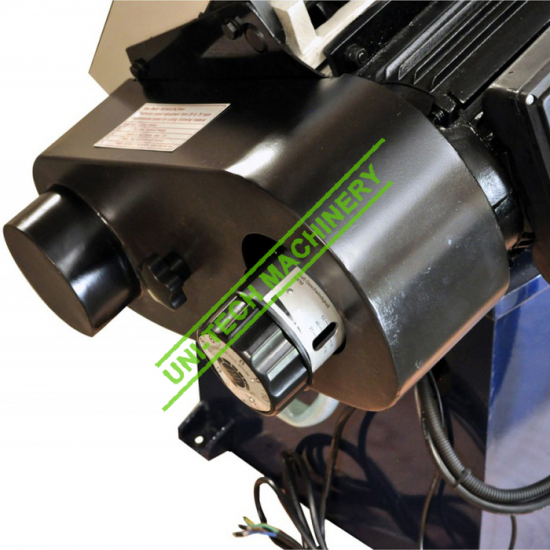

10.V-belt driven, is infinitely adjustable blade speed through PIV transmission



Category:
Tags:

Description

Notice:

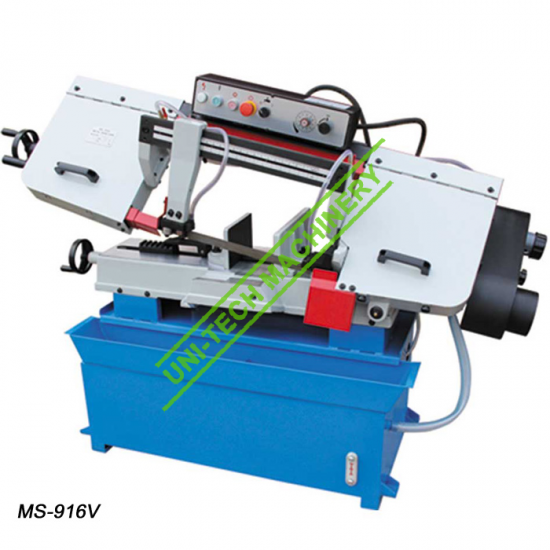

BS-916V

1)     BS916V is infinitely adjustable blade speed through PIV transmission

2)     Featured in variable speed



BS-916VR

1)     BS916VR is infinitely adjustable blade speed through PIV transmission

2)     Featured in variable speed

3)     Special for swiveling arm



Model BS-916VR BS-916V
Capacity Circular @90° 229mm(9″) 229mm(9″)
Rectangular @90 ° 127x405mm(5″x16″) 127x405mm(5″x16″)
Circular @45° 150mm(6″) 150mm(6″)
Rectangular @45 ° 150x190mm(6″x7.5″) 150x190mm(6″x7.5″)
Blade speed @ 60HZ 22-122MPM 95-402FPM 22-122MPM 95-402FPM
@ 50HZ 18-102MPM 78-335 FPM 18-102MPM 78-335 FPM
Blade size(MM) 27×0.9×3215 27×0.9×2655
Motor power 1.5kW 2HP (3PH)
Drive V-belt
Packing size(cm) 188x78x134 180x77x114
N.W./G.W.(kg) 320/380 300/360
