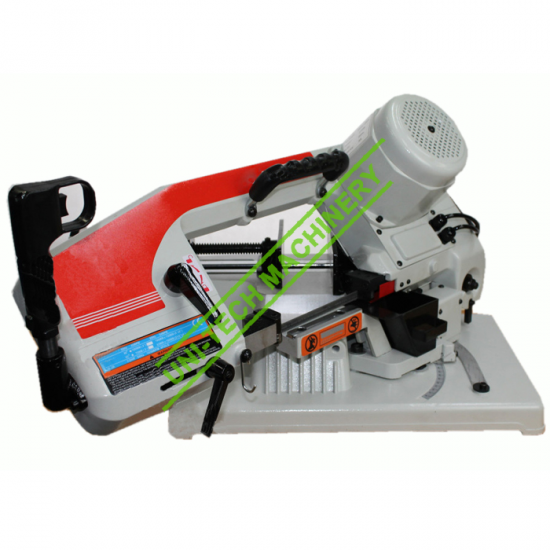

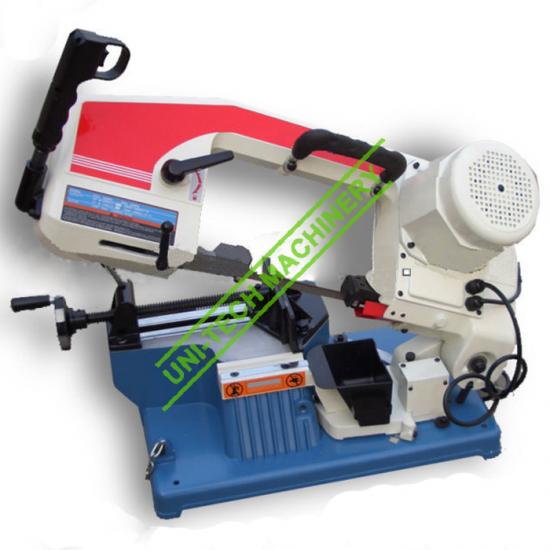

Portable Band Sawing Machine PS-100

Main Features:

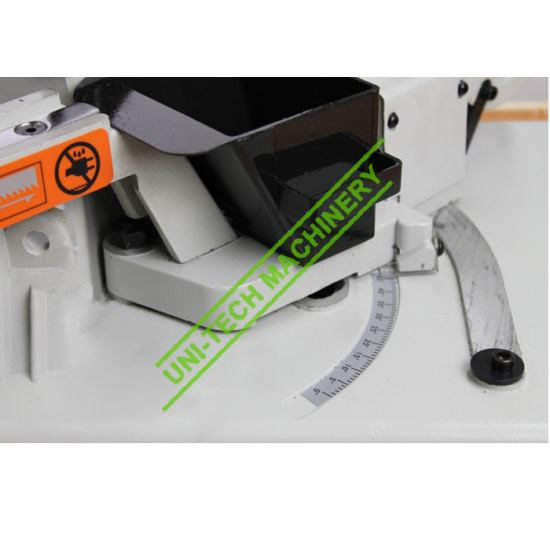

1. Angle cutting from 0° to 45°

2. Easy to carry roomy work sites.

3. An aluminum-casting structure, light weight and stability.

4. Electronic variable speed.

5. Worm gear box has hardened and ground gears

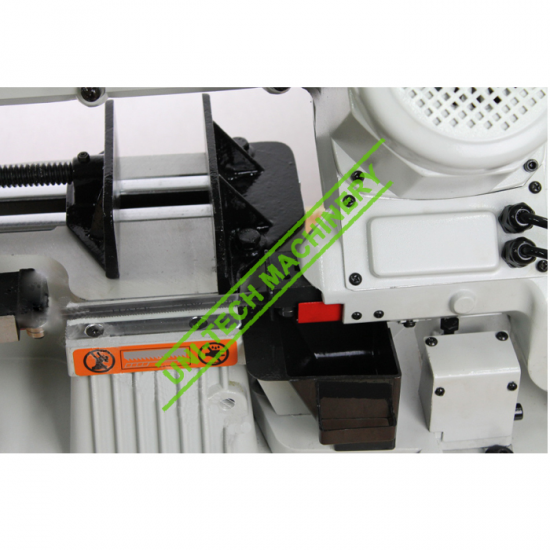

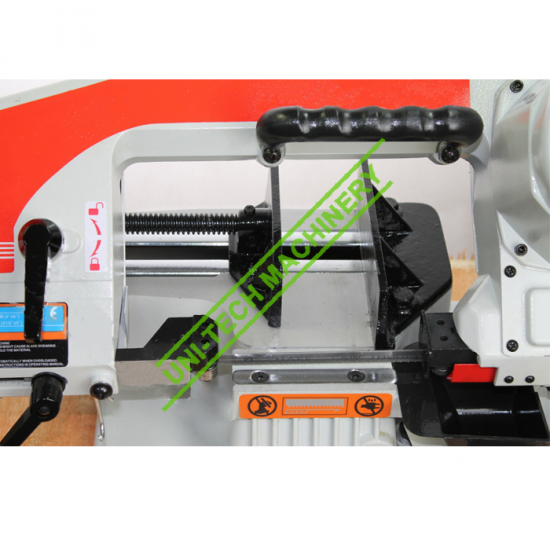

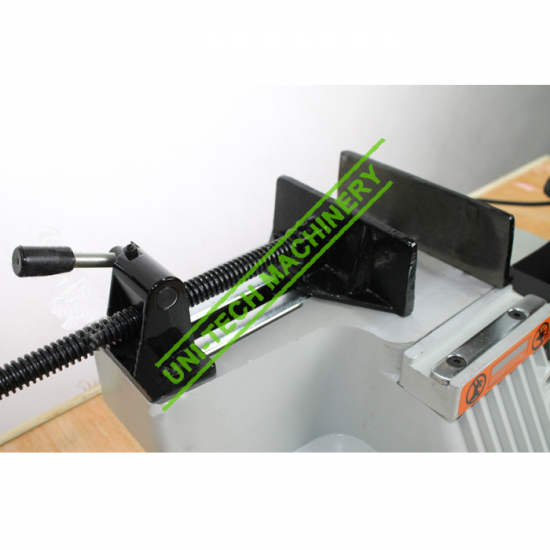

6. Quick-release vise for fast job changes

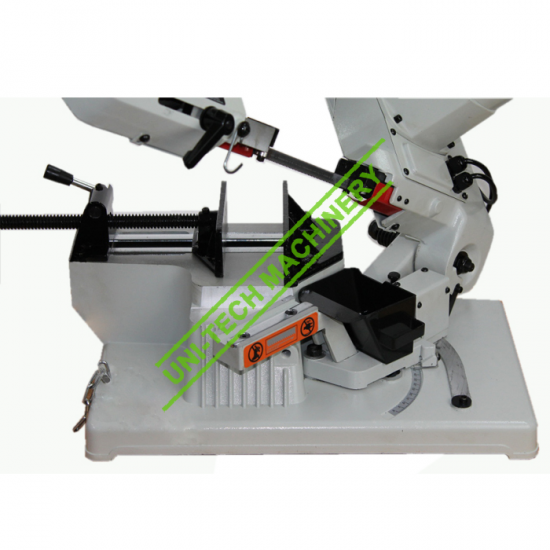

7. Rotated from 0° to 45°. It is equipped with block feeder (with fixed sawing length).

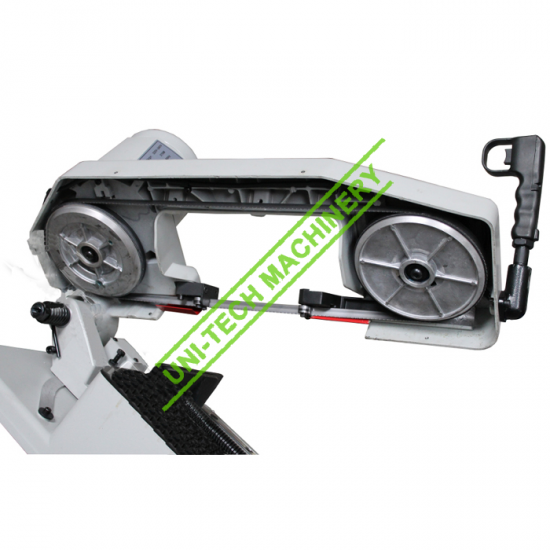

8. Blade wheels have heavy-duty ball bearings

9. Magnetic safety switch

10. Automatic shut off

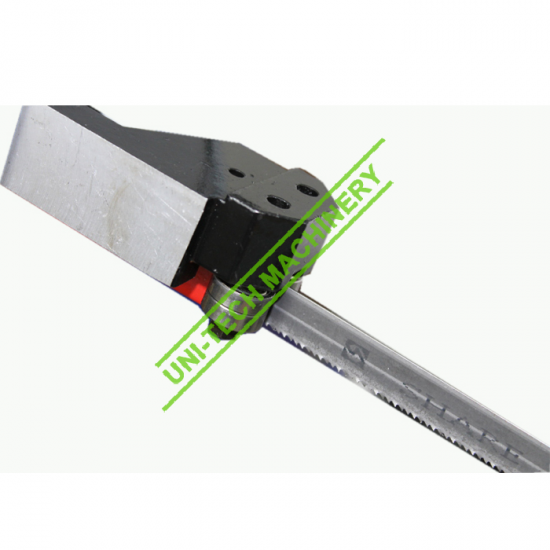

11. Adjustable blade guide system

Category:
Tags:

Description

Model PS-100
Max capacity circular @90° 100mm
Max capacity rectangular @90° 110*150mm
Max capacity circular @45° 100mm
Max capacity rectangular @45° 60*100mm
Blade speed @60HZ 54m/min
Blade speed  @50HZ 45m/min
Blade size 13*0.65*1470mm
Motor 50/60HZ/375w
Drive Gear
Packing size 72x37x40cm(22″x15″x16″)
N.W/G.W. 23/26kg
