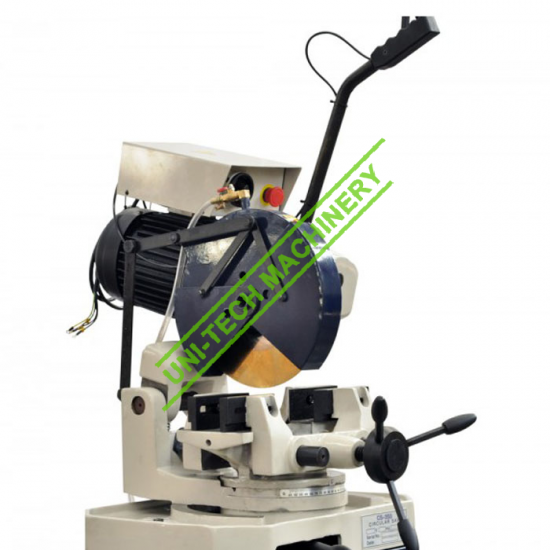

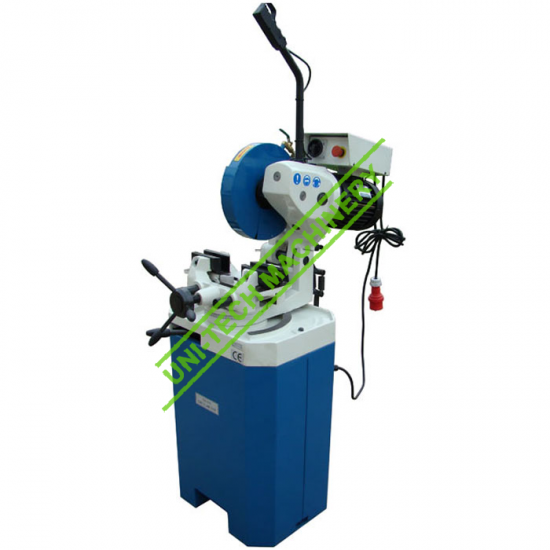

Circular Cut Saw Machine CG315,CG350

Features:

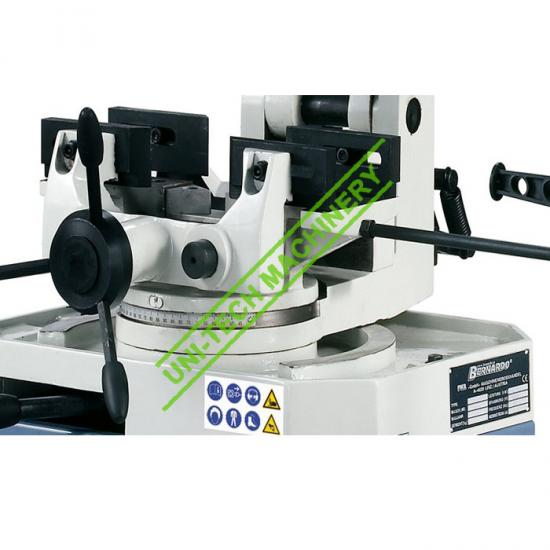

1. Double vice with material fence, for miter cutting up to 45°.

2. Ideal for cutting of steel, light metal sand plastics.

3. Sawblade cover according to CE, closes automatically when lifting the saw arm.

4. Ergonomic control handle with 24 V safety switch.

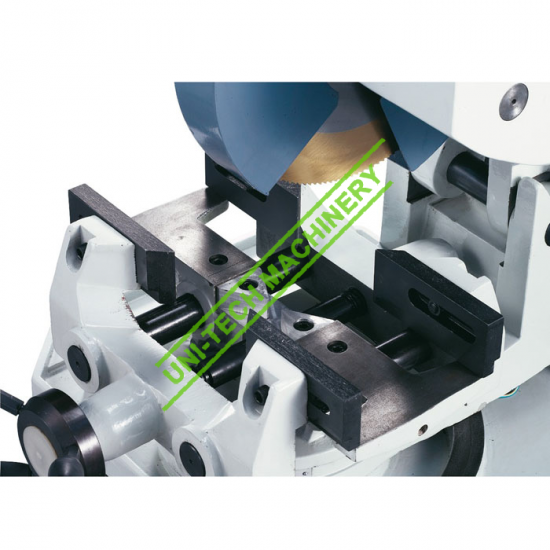

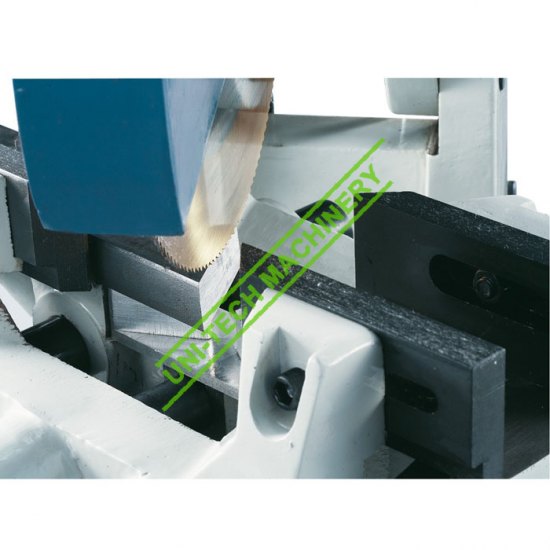

5. Precise cutting results due to the special vice which clamps workpiece on the right and left side of the sawblade.

6. Serially equipped with Tin-coated saw blade.

7. Low speed range of the sawblade is ideal for cutting of stainless steel.

8. Hardened and ground gears in oil bath.

9. Coolant device is positioned inside the machine frame, requiring minimum space.

Category:
Tags:

Description

Model CG-315 CG-350
Max. blade size 315mm(12.4’’) 350 mm(13.8’’)
Capacity Circular     @90° 100mm(4’’) 120mm(4.7’’)
Rectangular @90° 140x90mm(5.5”x3.5”) 140x100mm(5.5”x4”)
Circular    @45° 90mm(3.5”) 105mm(4.1”)
Rectangular @45° 100x90mm(4”x3.5”) 100x100mm(4”x4”)
Blade speed @50HZ 18.36rpm 18.36rpm
Vice opening 145mm(5.7”) 145mm(5.7”)
Motor power 750W1HP/1.3kW  1.7HP 1.1kW  1.5HP
Drive Gear Gear
Packing size 98x62x90cm(body) 98x65x95cm(body)
77x58x47cm(stand) 77x58x47cm(stand)
N.W/G.W 185/207kg 190/212kg
