Name: Double Column Horizontal Band Saw GDC4226,GDC4230,GDC4235,GDC4240,GDC4250,GDC4260,GDC4265,GDC4270,GD
SKU: 1594
Availability: InStock

Double Column Horizontal Band Saw GDC4226,GDC4230,GDC4235,GDC4240,GDC4250,GDC4260,GDC4265,GDC4270,GD

Main Features:

1. Double column structure, with big dia. column and inside with auto lubrication bearings, insure vertical lifting high stability

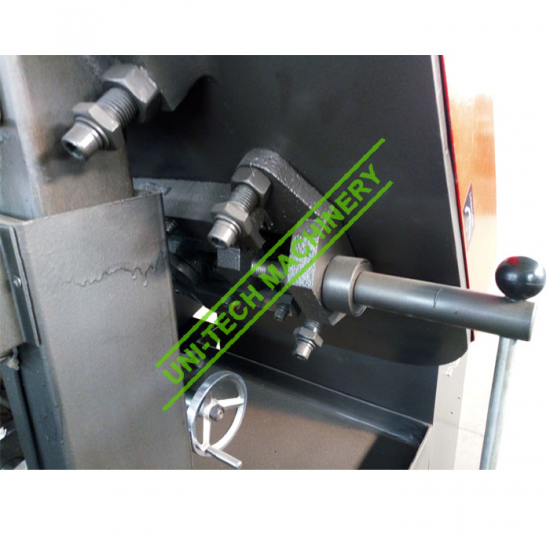

2. Blade with guide function and bearing guide function, enlarge the blade use life

3. High quality worm gear speed reduction box, with high accuracy and low noise, vibration.

4. Hydraulic system made sure the lifting speed stable and guarantee the cutting accuracy

Description

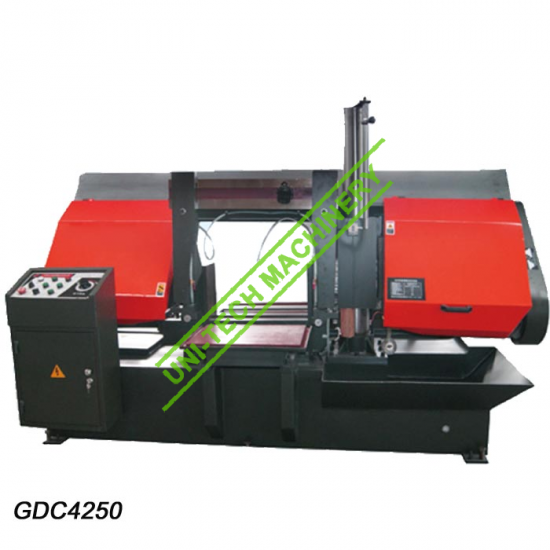

Model	GDC4226	GDC4230	GDC4235	GDC4250
Cutting capacity (mm)	260/260×260	300/320×300	350/350×350	500/550×500
Blade size (mm)	3152×27×0.9	3850×27×0.9	4115×34×1.1	5370×41×1.3
Blade cutting speed (m/min)	40/60/80	40/60/80	40/60/80	40/60/80
Main motor power (KW)	2.2	3	3	5.5
Oil pump motor power (KW)	0.37	0.55	0.75	0.75
Coolant pump motor power (KW)	0.04	0.04	0.09	0.09
Clamping type	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Net weight (KG)	600	1000	1100	1800
Overall dimension (mm)	1650×850×1350	1950×1200×1400	1950×1300×1500	2800×1300×1800

Model	GDC4240	GDC4245	GDC4265
Cutting capacity (mm)	400/420×400	450/450×450	400/650×400
Blade size (mm)	4570×34×1.1	4930×34×1.1	5150×41×1.3
Blade cutting speed (m/min)	40/60/80	32/48/68	40/60/80
Main motor power (KW)	4	4	4
Oil pump motor power (KW)	0.75	0.75	0.75
Coolant pump motor power (KW)	0.09	0.09	0.09
Clamping type	Hydraulic	Hydraulic	Hydraulic
Net weight (KG)	1300	1600	1500
Overall dimension (mm)	2200×1150×1650	2350×1150×1700	2600×1150×1700

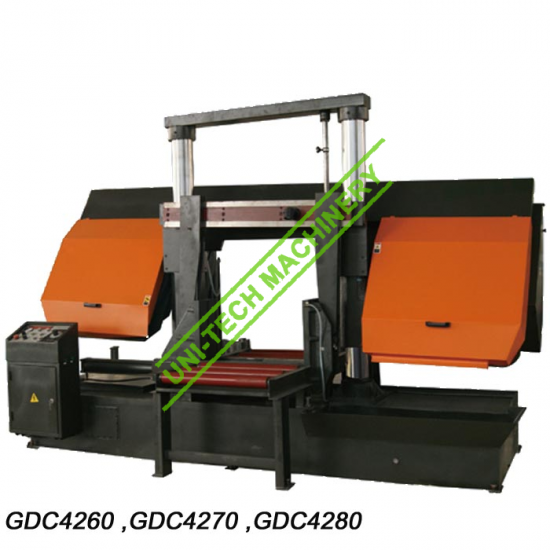

Model	GDC4260	GDC4270	GDC4280
Cutting capacity (mm)	600/600×600	700/700×700	800/800×800
Blade size (mm)	6300×41×1.3	7400×54×1.6	8800×67×1.6
Blade cutting speed (m/min)	28/52/74/85	30/45/65/75	Frequency 15-80
Main motor power (KW)	5.5	7.5	11
Oil pump motor power (KW)	1.5	1.5	1.5
Coolant pump motor power (KW)	0.12	0.12	0.12
Clamping type	Hydraulic	Hydraulic	Hydraulic
Net weight (KG)	2200	2800	4800
Overall dimension (mm)	3000×1400×1850	4000×1600×2100	4500×1700×2480
