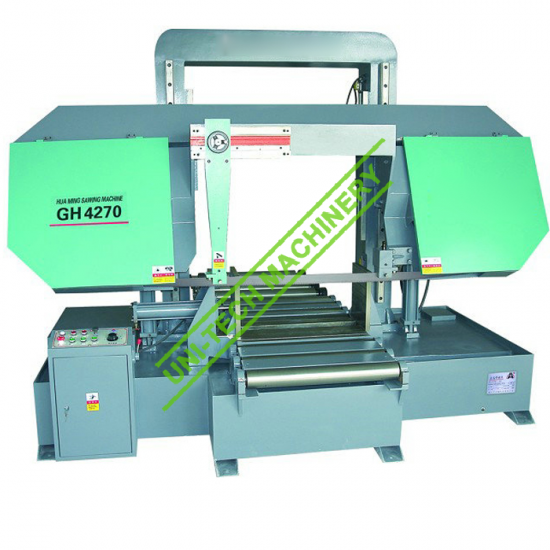

Double Column Horizontal Band Saw GH4270,GH4280,GH42100,GH42130

Main Features:

1.   Double-column horizontal band sawing machine, mainly used for all kinds of sawing large materials, have highefficiency high precision save material saving energy etc.

2.   Double column structure vertical lifting high stability

3.   Adopts linear guide rail and high precision

4.   Double oil cylinder control, to operate smoothly

5.   The hydraulic pressure controls the speed of saw stepless speed regulation

6.   The camp of workpieces and hydraulic, control easily

7.   Electric automatic feed

Description

MODEL NO GH4270 GH4280 GH42100 GH42130
Cutting capacity (mm) 800×800 800×800 1000×1000 1300×1300
Blade speed (m/min) 27,45,69 27,45,69 15-60 Variable 15-60 Variable
Blade size (mm) 7205×54×1.6 8820×67×1.6 9820×67×1.6 11180×67×1.6
Motor main (kw) 5.5 7.5 11 15
Motor hydraulic (kw) 1.1 2.25 3.75 3.75
Coolant pump (kw) 0.125 0.125 0.09 0.09
Workpiece clamping Hydraulic vice Hydraulic vice Hydraulic vice Hydraulic vice

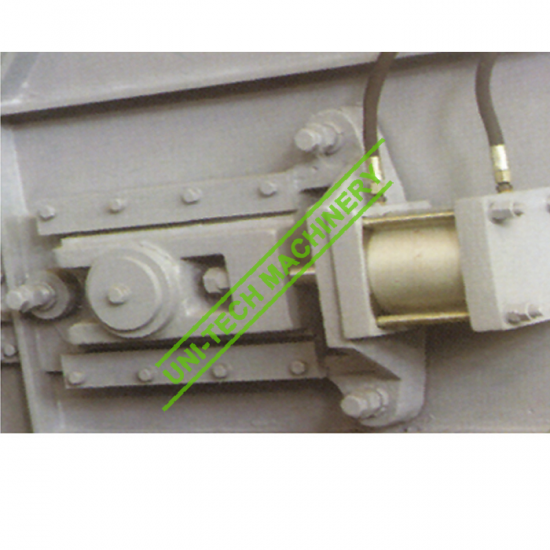

Blade tensioning Hydraulic Hydraulic Hydraulic Hydraulic
Drive configuration Gear box Gear box Gear box Gear box
Deliver expect fashion Motor Motor Motor Motor
Size outward (mm) 3500×1800×2500 4100×2150×2500 4560×2170×3040 5050×2250×3380
