Swivel Double Column Band Saw GR-330,GR-400,GR-500,GR-600

Main Features:

1.   Unique sealing Maintenance reduction system with worm gear, insurance forever-lubrication, enlarge the use life of saw blade

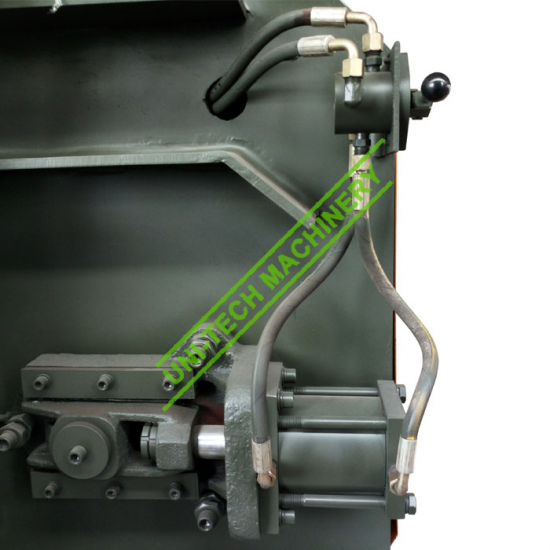

2.   Hydraulic lifting oil and high stable spring, variable, work smoothy

3.   Blade cover protection, ignore the breakage of saw blade

4.   Adjustable blade guide system

5.   Many kinds of electric protection function and with open stop

6.   Different swivel cutting, for section steel, round steel pipe, square steel pipe

7.   Vice can be movable, benefit for clamping workpiece

Category:
Tags:

Description

Model GR-330 GR-400 GR-500 GR-600
Cutting capacity at 0° 320/250×400 400/500×400 500/700×500 600/750×600
Cutting capacity at ±45° 250/250×300 400/400×400 500/500×500 600/600×600
Cutting capacity at﹣60° 180/250×180 ﹣ ﹣ ﹣
Cutting degree (°) ﹢45~﹣60 0~﹣45 0~﹣45 0~﹣45
Blade size (mm) 4115×27×0.9 4800×34×1.1 5800×41×1.3 6800×41×1.3
Blade cutting speed (m/min) 40/60/80 40/60/80 40/60/80 40/60/80
Main motor power (KW) 2.2 4 5.5 7.5
Oil pump motor power (KW) 0.75 0.7 5 1.5 2.2
Coolant pump motor power (KW) 0.01 0.09 0.12 0.12
Clamping type Hydraulic Hydraulic Hydraulic Hydraulic
Main drive structure Worm gear Worm gear Worm gear Worm gear
Worktable height (mm) 750 650 650 650
Net weight (KG) 950 1500 2200 3000
Overall dimension (mm) 1800×900×1450 2000×1200×1500 2600×1600×1650 3000×1600×1750
