Name: CNC Hydraulic Shearing Machine QC12K
SKU: 2506
Availability: InStock

CNC Hydraulic Shearing Machine QC12K

Features:

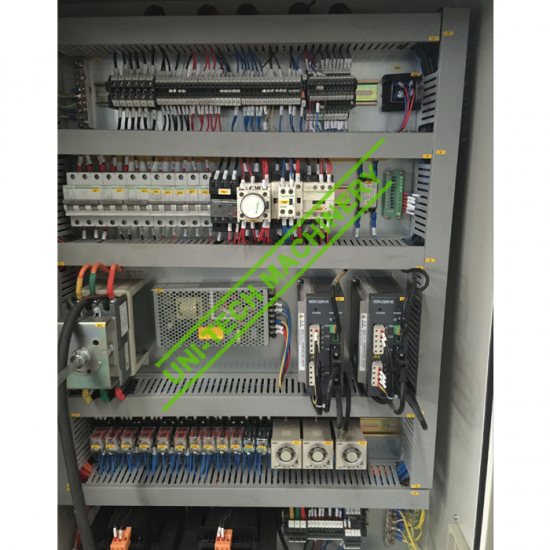

1. The machine is fitted with CNC controller special for shearing machines.

2. The position of rear stopper is displayed in real-time manner.

3. Multi-step programming function is available, and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.

4.It is provided with counting function for shearing, to display the shearingnumbers in a real-time manner, able for power-failure memory of position of rearstopper, procedures, and parameters.

Description

Model	Shearing Thickness	Shearing Width	Shearing Angle	Number of Stroke	Backgauge Rang	Motor Power
Model	mm	mm	°	min	mm	kw
QC12K-4×2500	4	2500	1°30`	18	20-600	4
QC12K-4×3200	4	3200	1°30`	18	20-600	5.5
QC12K-4×4000	4	4000	1°30`	12	20-600	5.5
QC12K-4×5000	4	5000	1°30`	10	20-600	5.5
QC12K-4×6000	4	6000	1°30`	7	20-800	7.5
QC12K-6×2500	6	2500	1°30`	18	20-600	7.5
QC12K-6×3200	6	3200	1°30`	14	20-600	7.5
QC12K-6×4000	6	4000	1°30`	12	20-600	7.5
QC12K-6×5000	6	5000	1°30`	10	20-600	7.5
QC12K-6×6000	6	6000	1°30`	7	20-800	7.5
QC12K-8×2500	8	2500	1°30`	14	20-600	7.5
QC12K-8×3200	8	3200	1°30`	10	20-600	7.5
QC12K-8×4000	8	4000	1°30`	8	20-600	11
QC12K-8×5000	8	5000	1°30`	7	20-800	15
QC12K-8×6000	8	6000	1°30`	6	20-800	15
QC12K-8×8000	8	8000	1°30`	5	20-800	15
QC12K-10×2000	10	2000	1°30`	12	20-600	11
QC12K-10×2500	10	2500	1°30`	10	20-600	11
QC12K-10×3200	10	3200	1°30`	10	20-600	11
QC12K-10×4000	10	4000	1°30`	8	20-600	15
QC12K-12×2000	12	2000	2°	12	20-600	15
QC12K-12×2500	12	2500	2°	10	20-600	15
QC12K-12×3200	12	3200	2°	9	20-600	15
QC12K-12×4000	12	4000	2°	8	20-800	18.5
QC12K-12×5000	12	5000	2°	7	20-800	22
QC12K-12×6000	12	6000	2°	6	20-800	22
QC12K-12×8000	12	8000	2°	5	20-800	22
QC12K-16×2500	16	2500	2°	8	20-600	18.5
QC12K-16×3200	16	3200	2°	7	20-600	18.5
