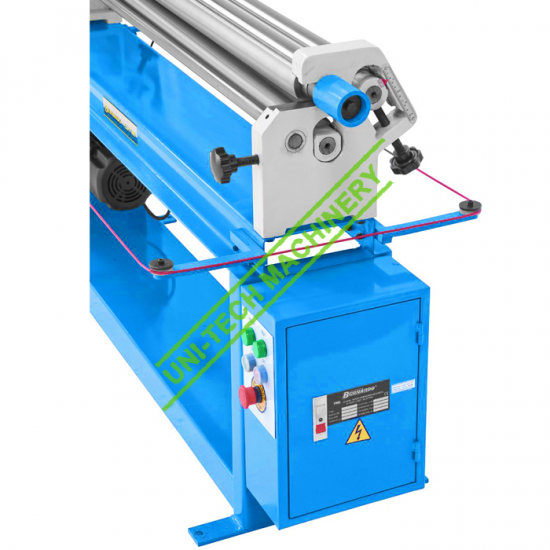

Electric Slip Rolling Machine ESR-1300×1.5

Main Features:

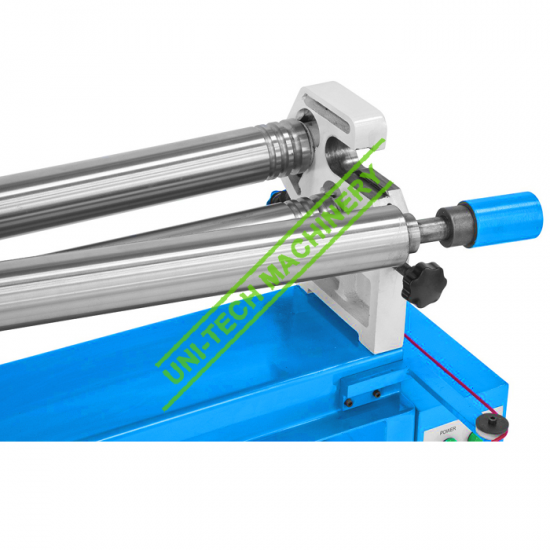

1.   Asymmetrical roll bending machine with 3 rolls

2.   High strength steel rolls

3.   Fixed top roller, adjustable lower and rear rollers

4.   Standard series wire core groove

5.   Top roll swing out across camlock

6.   Supplied with conical bending feature

Description

Model

Max rolling thickness (mm)

Max rolling width (mm)

Dia. of roll(mm)

Motor power (kw)

Packing size(cm)

N.W./G.W.(kg)

ESR-1300X1.5

1.5

1300

75

0.75

0.75

280/340

ESR-1020X2

2

1020

60

1.5

174X70X126

260/325

ESR-1300X1.5E

1.5

1300

60

1.5

190X55X110

270/340
