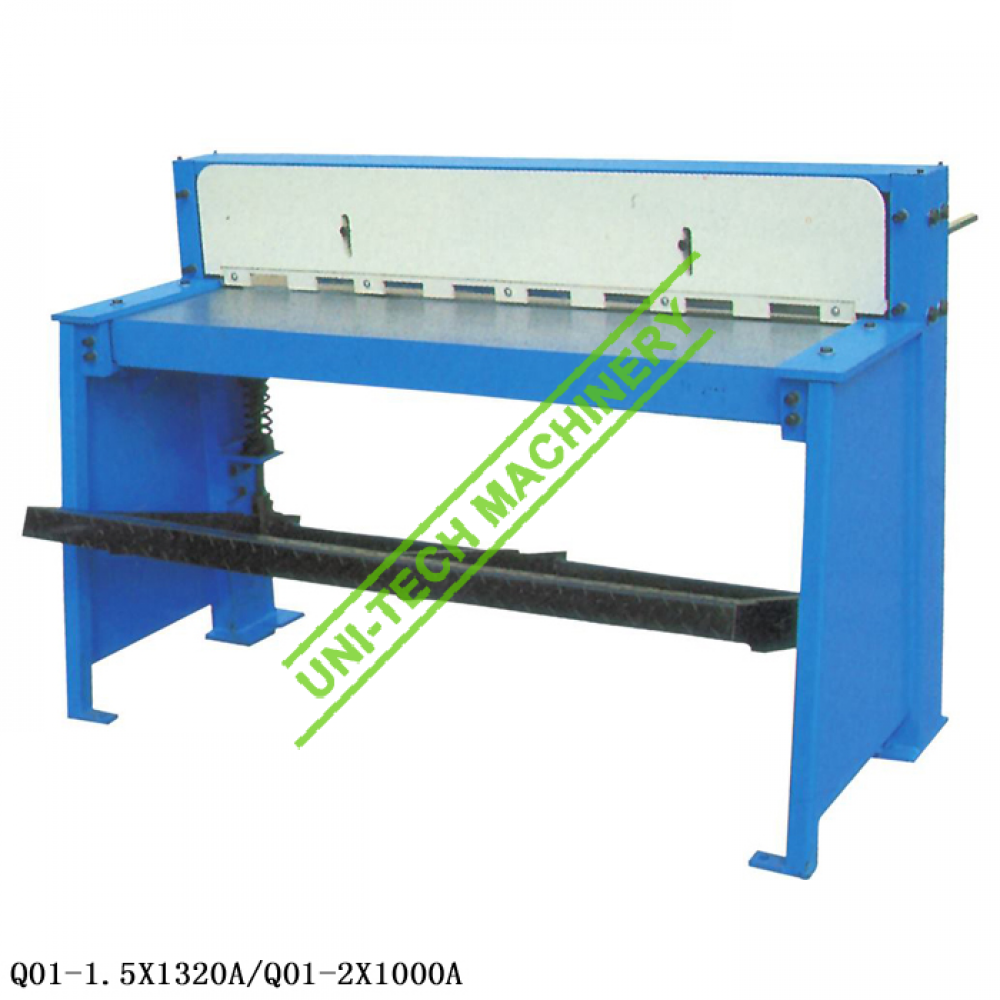

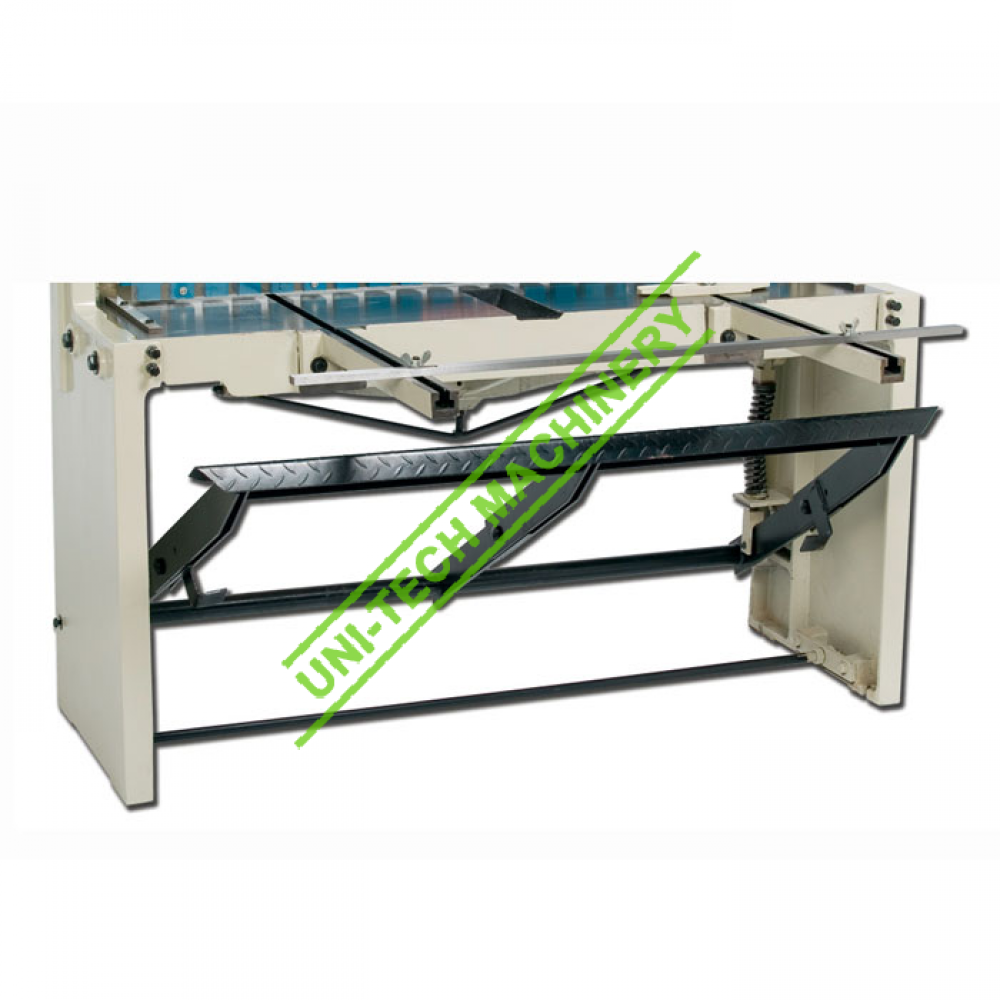

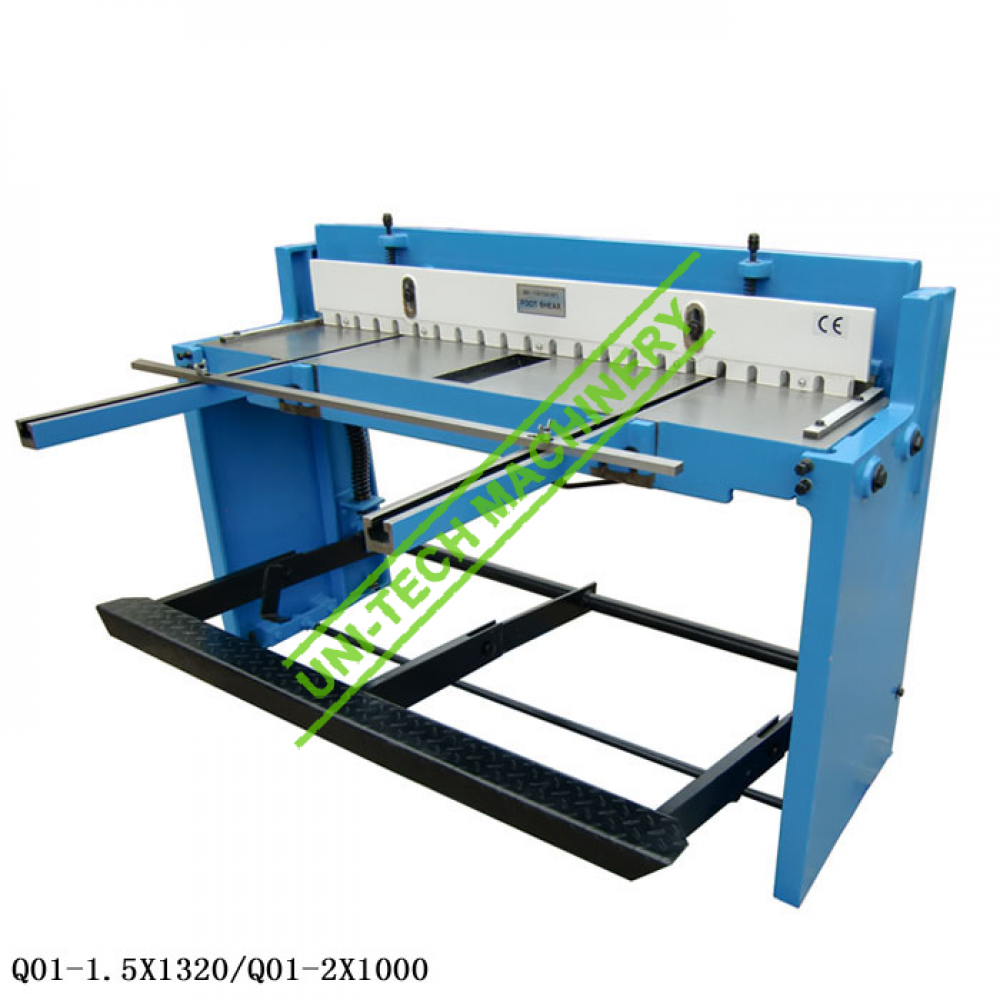

Foot Shearing Machine Q01-1.1X1000,Q01-1.5X1320,Q01-2X1000,Q01-1.5X1320A,Q01-2X1000A

Main Features:

1. With heavier weight, good stability

2. High carbon and chrome steel blade

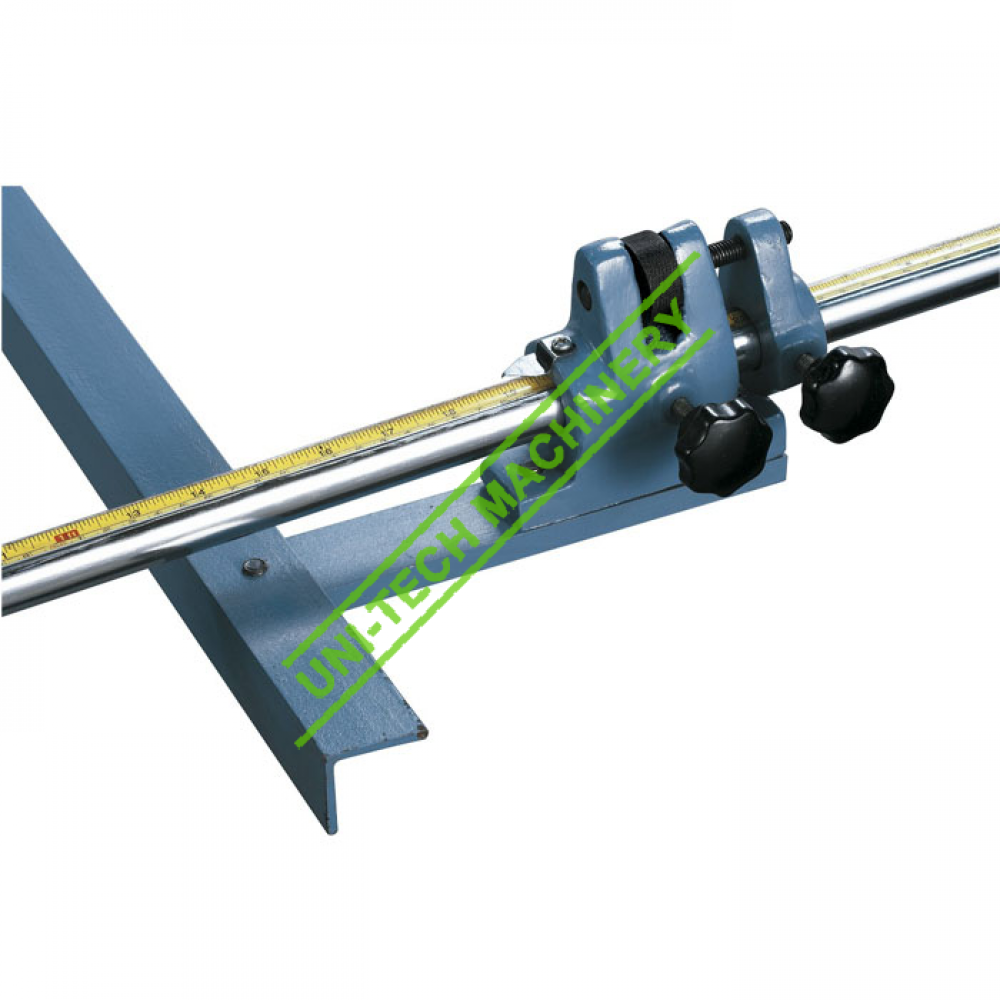

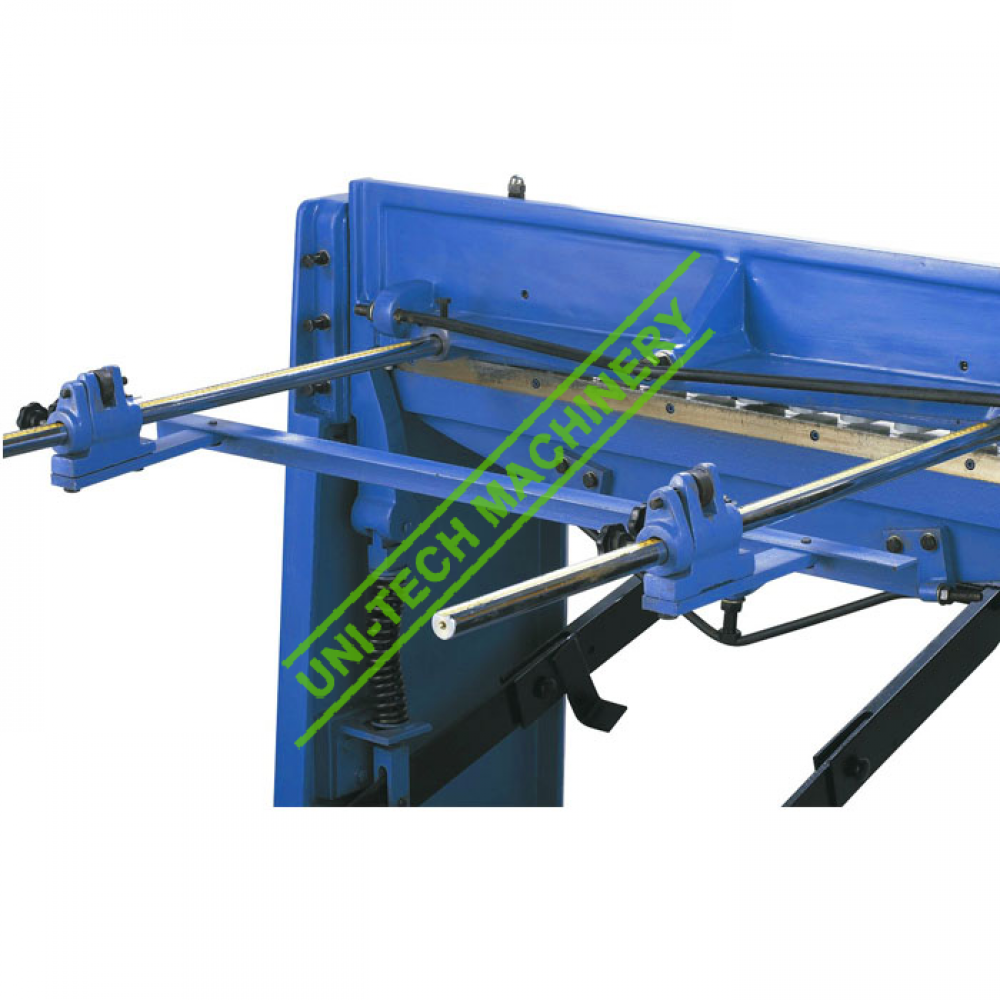

3. A fully casting structure, not easy deformation

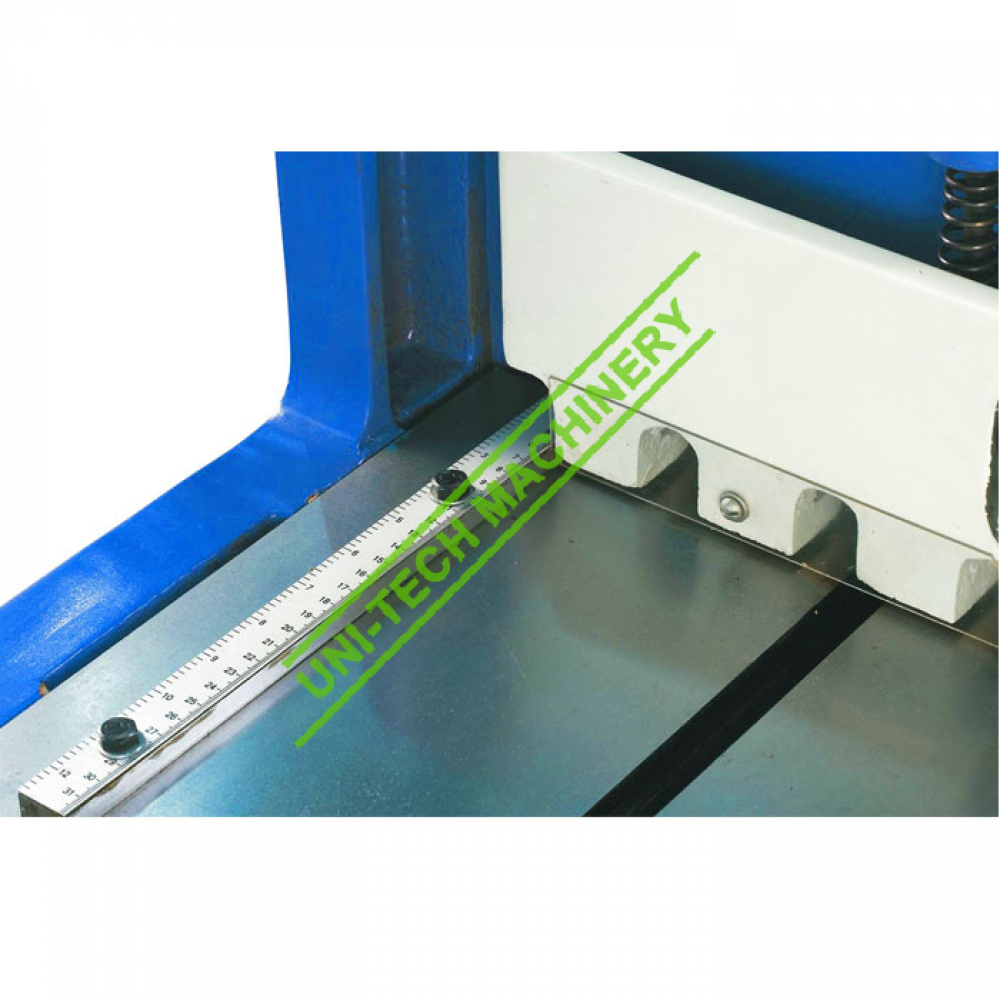

4. Used for mild steel aluminum copper, brass zinc plastic and leads

5. Back stop 0 – 700 mm with fine adjustment

6. Rectangular stop with mm-scale on both sides

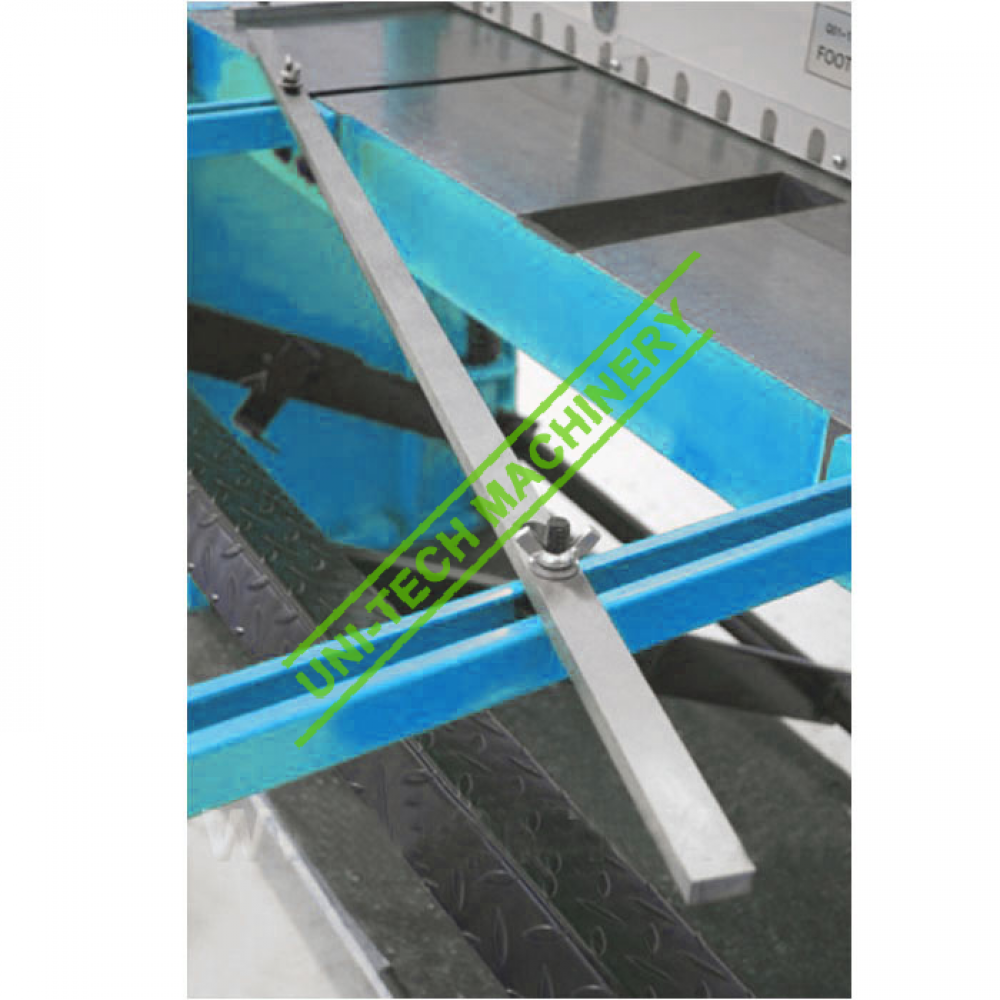

7. Front sheet support for large-sized sheets

8.It features convenient operation and high efficiency.



Description

Model Q01-1.0×1000 Q01-1.5X1320 Q01-2X1000 Q01-2X1000A Q01-1.5X1320A
Width (mm) 1000 1320 1000 1000 1320
Max. Shearing thickness (mm) 1 1.5 2 2 1.5
Back gauge range (mm) 0-700 0-700 0-700 0-800 0-800
Packing size (cm) 140x76x115 168x76x115 140x76x115 140x76x115 168x76x115
N.W./G.W. (kg) 365/410 491/545 405/450 355/400 430/500
