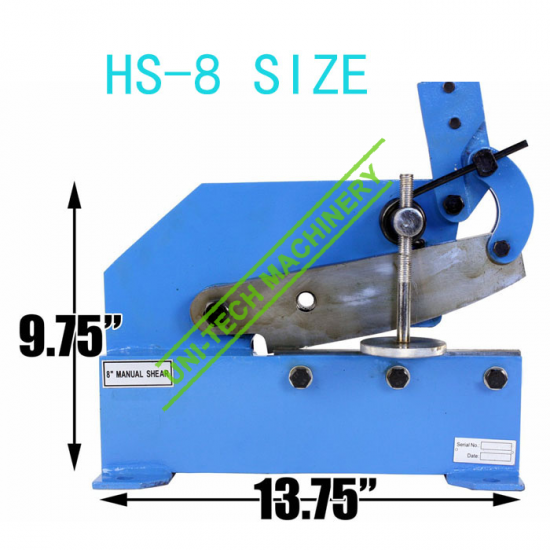

Hand Shear HS-5,HS-6,HS-8,HS-10.HS-12

Features:

1. Level arm with compensating spring

2. Easy cutting across the entire length

3. Rigid cutter body

4. Heavy duty steel fabricated

5. Use for mild steel, aluminum, copper, brass, zinc, plastic and leads

6. High carbon high chrome steel blade

7. Spring assisted return handle

8. Adjustable material thickness guide

9. Long length handle for maximum leverage



Category:

Description



Model

HS-5

HS-6

HS-8

HS-10

HS-12

Blade length

5”

6”

8”

10”

12”

Sheet Steel(mm)

6

6

6

6

6

Flat Steel(mm)

70×6

70×6

70×6

70×6

70×6

Round steel(mm)

11

11

13

13

13

Packing size (cm)

33X16X33

33X16X33

50X16X45

74X15X44

74x15x44

N.W./G.W. (kg)

9/10

11/13

17/19

21/23

26/28
