Manual Folding Machine PBB1020-2.5,PBB1270-2,PBB1520-1.5

Features:

1. For formed component bending.

2. A fully welded structure, and compact high quality engineering, ensure minimum maintenance, together with simple and safe operation.

3. Have the function of air spring which can be installed inside the arm(Optional).

4. Adjustable bending angle stop with scale up to 135°

5. With foot control. It is easy for operation and relax hands.

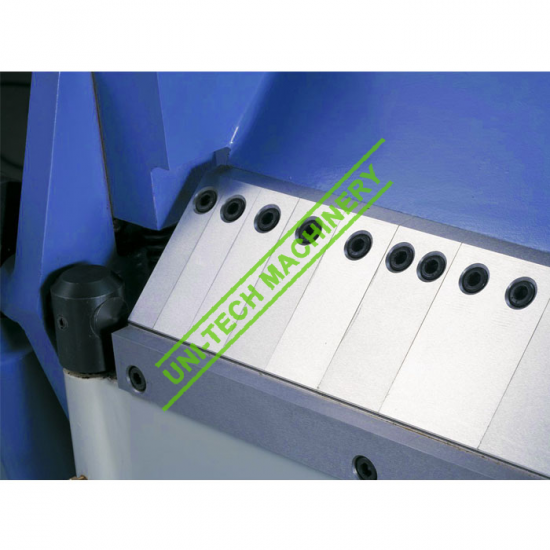

6. Segmented top beam tools.

Description

Model PBB1020/2.5 PBB1270/2 PBB1520/1.5
Max. working length(mm) 1020 1270 1520
Max. sheet thickness(mm) 2.5 2.0 1.5
Max. clamping bar lift(mm) 47 47 47
Folding angle 0-135° 0-135° 0-135°
Packing size(mm) 1460x620x1270 1700x710x1270 1960x710x1300
N.W./G.W.(kg) 285/320 320/360 385/456
