Pan & Box Brake BP-1650,BP-1648H

Features:

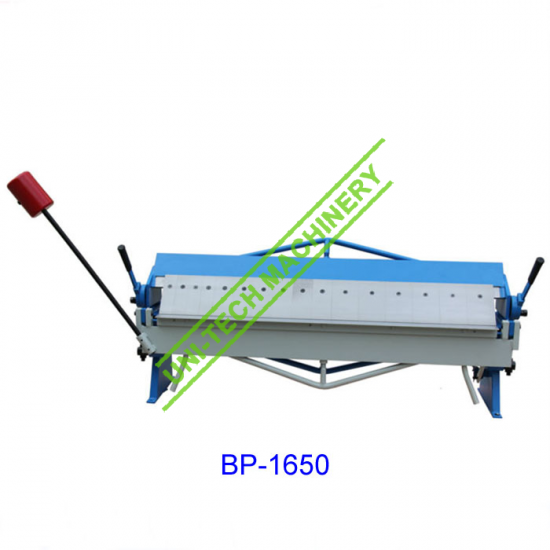

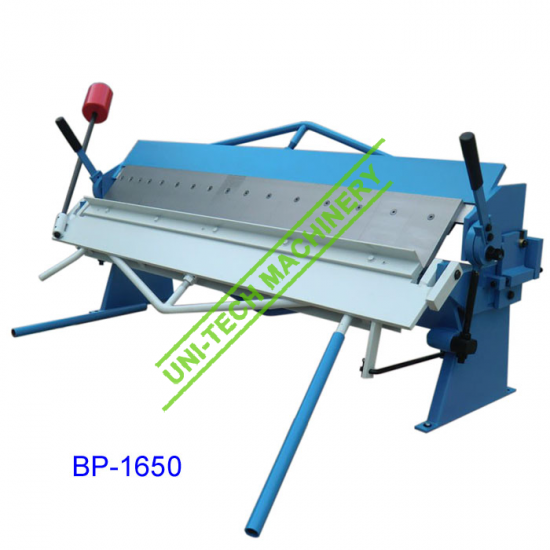

–BP-1650

1. With high blades 184mm.

2. Sectioned fingers are easily removed for box bending and special forming operation.

3. With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake.

4. Balance weight hammer saw your working effort.

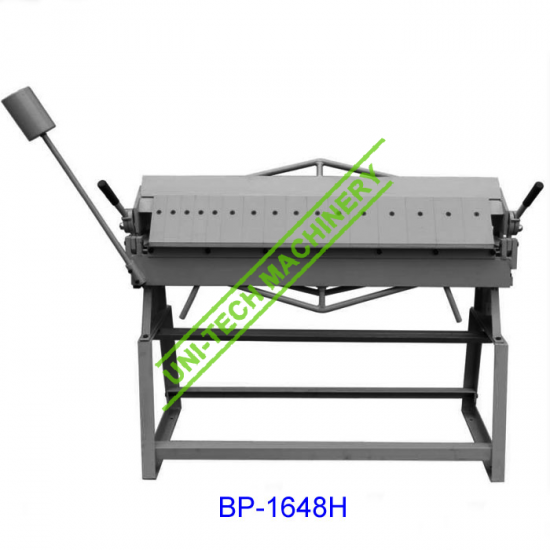

 –BP-1648H

1. With high blades 198mm.

2. All steel welded construction.

3. Adjustable truss bars and bronze bushings.

4. Removeable nose bar.

5. Equipped with precise stop rod for repeat bends.

Category:

Description

Model BP-1650 BP-1648H
Max. bending length 1270mm(50″) 1220mm(48″)
Max. thickness 1.5mm(16ga) 1.5mm(16ga)
Max. box depth 100mm(4″) 100mm(4″)
Max. lift of beam 32mm(1-1/4″) 32mm(1-1/4″)
Beam Adjustment 16mm(5/8″) 6.5mm(0.25″)
Finger nose angle 45°
Packing size 168x59x82cm 166x61x72cm
N.W./G.W. 202/247kg 237/260kg
