Electric Pipe Bending Machine PB-2D,PB-3D.PB-4D

Main Features:

1. Capable of bending angels from 0—90 degree. On pipe range from 1/2”-4”

2. Cold bending, no prewarming of pipe is required.

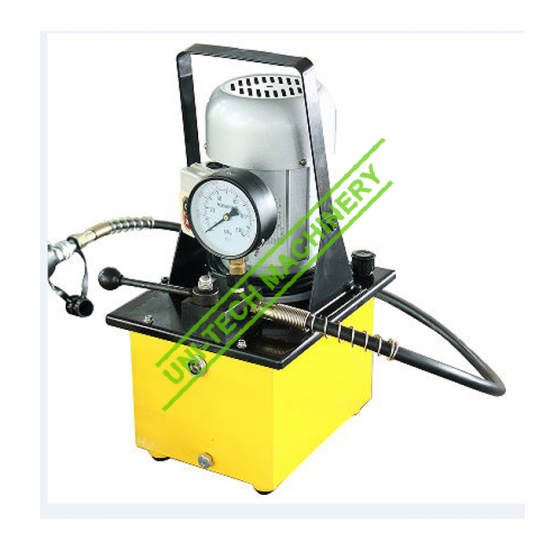

3. Effective work with the electric pump carry handle and caster ensure quick and easy move from site to site

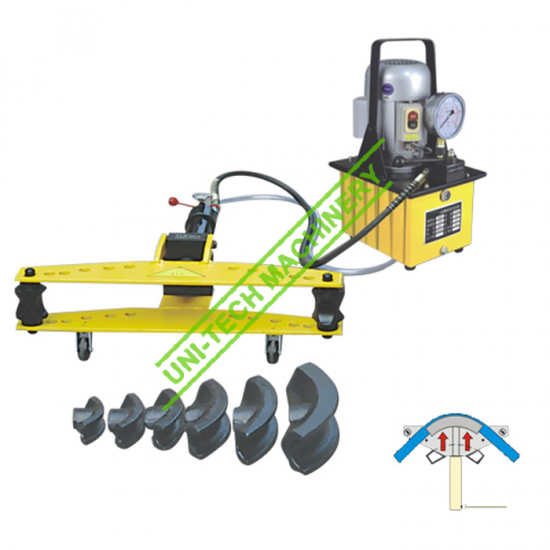

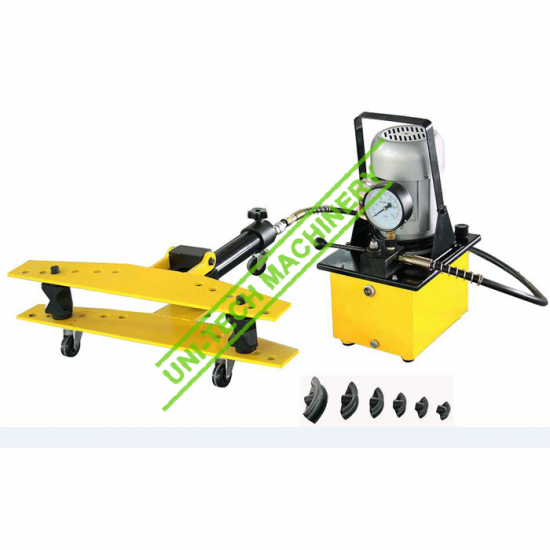

4. All components supplied in a wooden case, including electric pump, the bender , bending shoes and service pack.

Description

Model Capacity Max. stroke Bending range Bending formers Wall thickness of pipe G.W. packing size
/ (T) (mm) (mm) (in) (mm) (Kg) (mm)
PB-2D 13 250 Φ21.5-Φ60 1/2″ 3/4″ 1″ 1¼” 1½” 2″ 2.75-4.5 74 960×350×270
PB-3D 20 290 Φ21.5-Φ88.5 1/2″ 3/4″ 1″ 1¼” 1½” 2″ 2½” 3″ 2.75-5 126 1180×460×270
PB-4D 23 370 Φ21.5-Φ108 1/2″ 3/4″ 1″ 1¼” 1½” 2″ 2½” 3″ 4″ 2.75-6 174 1180×460×320
