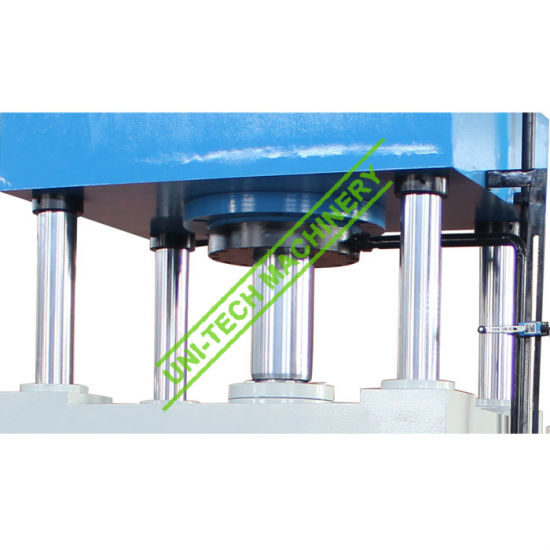

Four Column Power Press HP4,JHP4
Four Column Power Press HP4,JHP4 - Image 2
Four Column Power Press HP4,JHP4 - Image 3
Four Column Power Press HP4,JHP4 - Image 4
Four Column Power Press HP4,JHP4 - Image 5
Four Column Power Press HP4,JHP4 - Image 6

Four Column Power Press HP4,JHP4

Main Features:

1.   HP4 and JHP4 series with four column hydraulic press, structure is reasonable.

2.   HP4 with sliding beam and worktable can lift and down.

3.   JHP4 without worktable, and type is simple, price is much economic.

4.   This series is suitable for large industrial enterprises with thick, durable design philosophy

Category:

Description

Model HP4-100 HP4-150 HP4-200 HP4-250 HP4-315 HP4-500
Capacity (KN) 1000 1500 2000 2500 3150 5000
Pressure (Mpa) 31.5 31.5 31.5 31.5 32 32
Travel (mm) 300 300 300 300 400 500
Table size (mm) 860×560 870×670 970×700 1090×800 1090×800 1640×1200
630×560 670×645 700×700 800×800 800×800 1200×1400
Packing size (mm) 700×1000×1900 800×1000×2100 800×1000×2200 1300×1000×2200 1300×1000×2200 1600×1350×2950
1100×700×1150 1100×700×1200 1100×700×1200 1100×700×1300 1100×800×1500 1400×800×1500
Net weight (kg) 2200 2600 3100 4200 4600 9600





Model JHP4-50 JHP4-63 JHP4-100 JHP4-150 JHP4-200
Capacity (KN) 500 630 1000 1500 2000
Pressure (Mpa) 50 50 50 60 60
Travel (mm) 600 300 300 300 300
Table size (mm) 400×600 400×600 500×700 550×850 550×850
Packing size (mm) 800×800×2100 800×800×2100 780×850×2200 780×850×2200 1000×1000×2550
700×600×1200 700×600×1200 700×600×1300 700×200×1300 700×650×1300
Net weight (kg) 980 1060 1220 1600 1960
