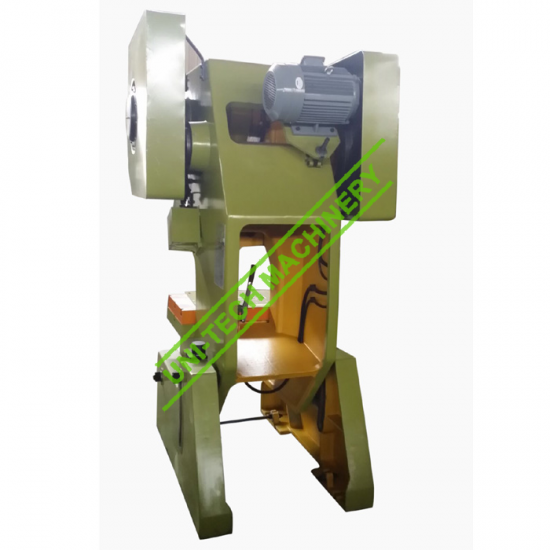

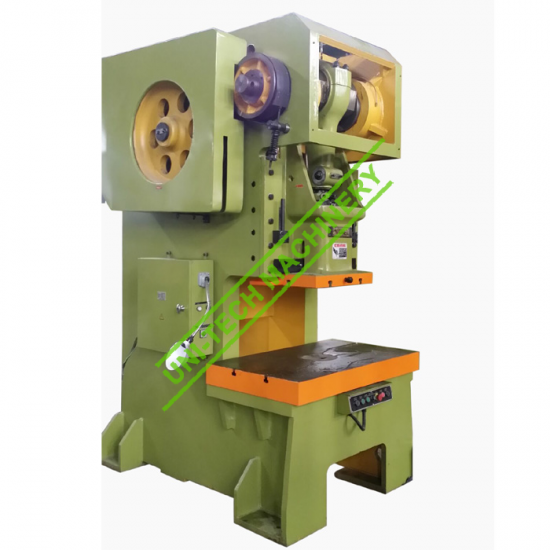

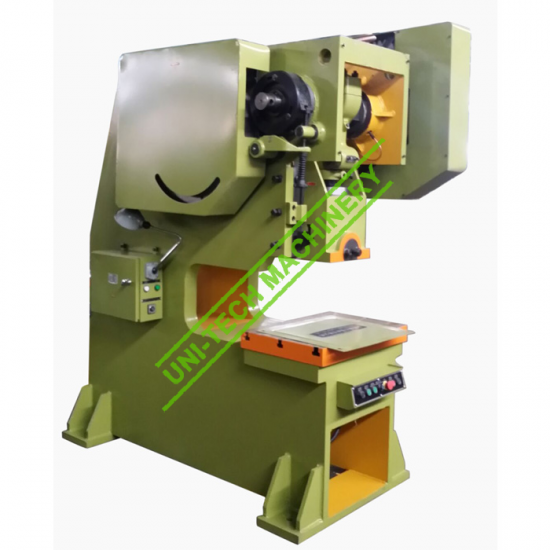

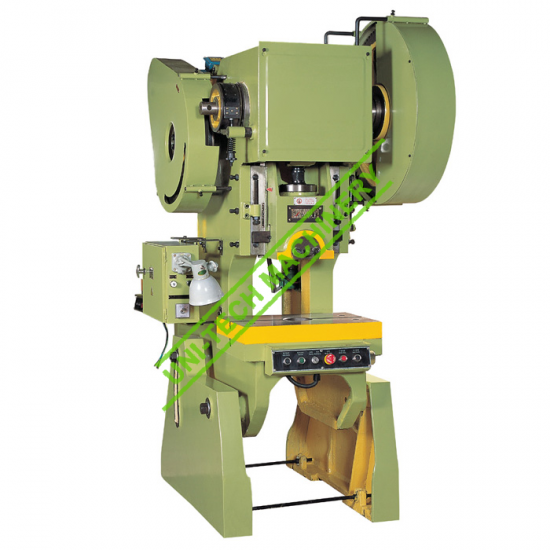

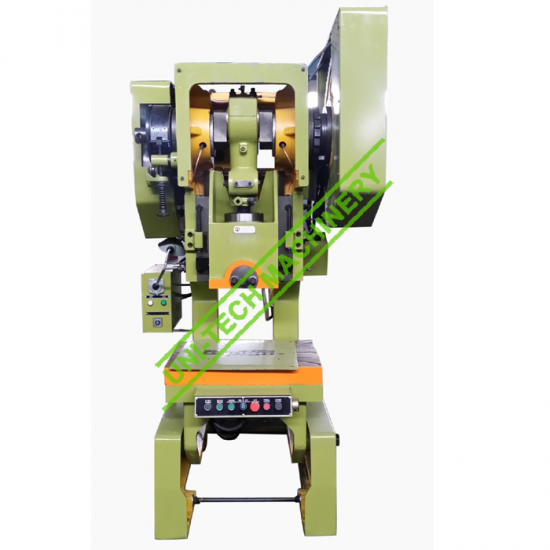

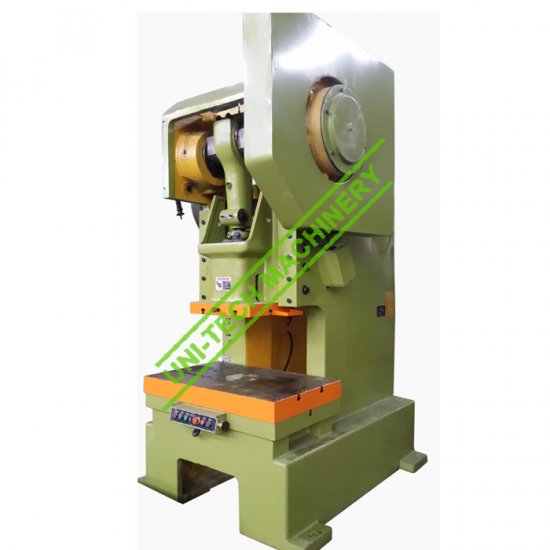

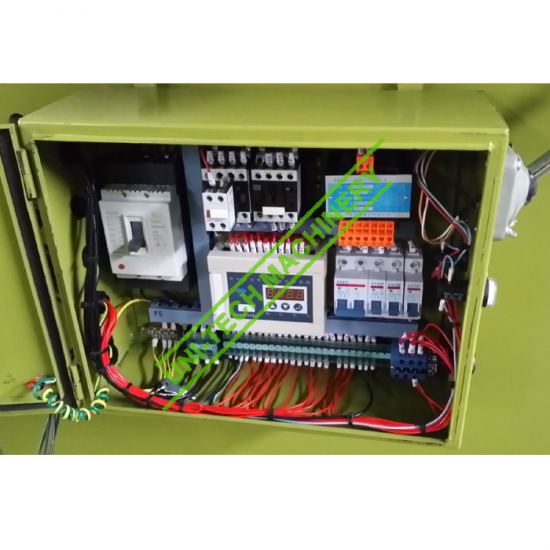

Name: J23 Series General Open Front and Inclinable Press(D with adjustable stroke)
SKU: 2032
Availability: InStock

J23 Series General Open Front and Inclinable Press(D with adjustable stroke)

Main Features:

J23 D type with adjustable stroke

1. Adopts horizontally placed crankshaft.

2. Rigid rotated bond clutch.

3. D23-63A/80A adopts dual rotated bond structure to overcome rebound of punching effectively.

4. Manual shut height adjustment with scale display.

5. The type with “A” equipped with emergency stop device, which could make the slide stop at 0°～135°areaand equipped with light curtain protector as well.

6. Adopts horizontally placed crankshaft.

7. Stroke adjustment device mounted on crankshaft.

8. Rigid rotated bond clutch.

9. Manual shut height adjustment with scale display.

Description

Description	Unit	JC23-6.3	J23-10B	J23-16	J23-16B	J23-25A	JG23-35A
Capacity	kN	63	100	160	160	250	350
Nominal Force	mm	3	4	5	5	5	5
Slide Stroke	mm	35	60	55	70	80	100
SPM	min^-1	170	145	125	125	60	53
Max. Die Height	mm	110	130	160	170	180	180
Die Height Adjustment	mm	30	35	45	45	70	75
Between Slide Center & Frame	mm	110	130	160	170	210	200
Bolster (FB×LR)	mm	200×310	240×360	300×450	320×480	400×600	380×610
Bolster Opening	mm	Φ60	Φ120×20	Φ100	Φ100	Φ120	Φ130
(Up Hole Dia.×Dpth×Low Hole Dia.)	mm	Φ60	×Φ100	Φ100	Φ100	Φ120	Φ130
Bolster Thickness	mm	40	50	40	60	70	70
Bolster Opening (Dia.×FB×LR)	mm	Φ140×110×160	Φ130×90×180	Φ210×160×240	Φ210×160×240	Φ180×130×260	Φ180×130×290
Slide Area (FB×LR)	mm	120×140	150×170	180×200	180×200	210×250	210×250
Shank Hole (Dia.×Dpth)	mm	Φ30×55	Φ30×55	Φ40×60	Φ40×60	Φ40×70	Φ40×60
Max. Inclined Angle	°	30°	25°	25°	25°	25°	25°
Between Columns	mm	150	180	220	220	260	300
Motor Power	kW	0.75	1.1	1.5	1.5	2.2	3
Outline Size (FB×LR×H)	mm	780×610×1505	915×700×1690	1150×900×1910	1150×900×1910	1325×990×2140	1490×1080×2200
Net Weight	kg	360	600	1080	1080	1900	2440

Description	Unit	JG23-40A	JC23-63A	JD23-63A	J23-80A	JD23-80A
Capacity	kN	400	630	630	800	800
Nominal Force	mm	6	8	8	9	9
Slide Stroke	mm	120	120	120	130	130
SPM	min^-1	55	50	50	45	45
Max. Die Height	mm	220	270	270	290	290
Die Height Adjustment	mm	80	80	80	100	100
Between Slide Center & Frame	mm	260	260	260	270	300
Bolster (FB×LR)	mm	480×710	480×710	480×710	520×860	580×860
Bolster Opening	mm	Φ220×25	Φ220×45	Φ200×45	Φ200×45	Φ200×45
(Up Hole Dia.×Dpth×Low Hole Dia.)	mm	×Φ180	×Φ180	×Φ180	×Φ180	×Φ180
Bolster Thickness	mm	80	90	90	100	100
Bolster Opening (Dia.×FB×LR)	mm	Φ200×150×300	Φ250×200×340	Φ250×200×340	Φ250×200×340	Φ280×220×380
Slide Area (FB×LR)	mm	270×320	280×320	280×320	280×380	280×380
Shank Hole (Dia.×Dpth)	mm	Φ50×70	Φ50×80	Φ50×80	Φ60×75	Φ60×75
Max. Inclined Angle	°	25°	25°	25°	20°	20°
Between Columns	mm	300	350	350	410	410
Motor Power	kW	4	5.5	5.5	7.5	7.5
Outline Size (FB×LR×H)	mm	1600×1180×2310	1810×1350×2640	1885×1350×2670	1810×1410×2790	1990×1410×2945
Net Weight	kg	3180	4000	4970	4790	5970

Description	Unit	JC23-6.3D	J23-10D	J23-16D	J23-25D	JG23-40D	JC23-63D	J23-80D
Capacity	kN	63	100	160	250	400	630	800
Nominal Force	mm	2	2	2	2.5	4	4	5
Slide Stroke	mm	0-40	0-60	0-70	0-80	20-120	20-120	10-130
SPM	min^-1	170	145	125	60	55	50	45
Max. Die Height	mm	105	130	170	180	220	260	270
Die Height Adjustment	mm	20	35	30	45	70	80	80
Between Slide Center & Frame	mm	110	130	170	210	260	260	270
Bolster (FB×LR)	mm	200×310	240×360	320×480	400×600	480×710	480×710	520×860
Bolster Opening (Dia.×FB×LR)	mm	φ60	φ120×20×φ100	φ100	φ120	φ220×25×φ180	φ200×45×φ180	φ200×45×φ180
Bolster Thickness	mm	40	50	60	70	80	90	100
Bolster Opening (Dia.×FB×LR)	mm	φ140×110×160	φ130×90×180	φ210×160×240	φ180×130×260	φ200×150×300	φ250×200×340	φ250×200×340
Slide Area (FB×LR)	mm	120×140	150×170	180×200	210×250	270×320	280×320	280×380
Shank Hole (Dia.×Dpth)	mm	φ30×55	φ30×55	φ40×60	φ40×70	φ50×70	φ50×80	φ60×75
Max. Inclined Angle	°	30°	25°	25°	25°	25°	25°	20°
Between Columns	mm	150	180	220	260	300	350	410
Motor Power	kW	0.75	1.1	1.5	2.2	4	5.5	7.5
Outline Size (FB×LR×H)	mm	780×610	915×700	1150×900	1325×990	1600×1180	1810×1350	1810×1410
Outline Size (FB×LR×H)	mm	×1505	×1690	×1910	×2140	×2310	×2640	×2790
Net Weight	kg	360	600	1080	1900	3180	4218	5240
