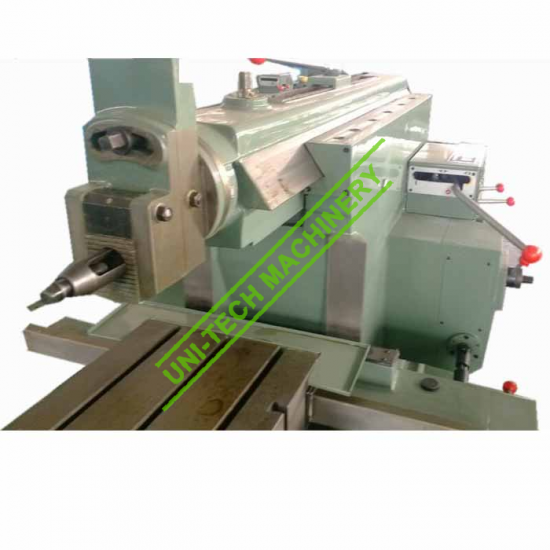

Name: Mechanical Type Shaping Machine BC6050,BC6063,BC6066
SKU: 1926
Availability: InStock

Mechanical Type Shaping Machine BC6050,BC6063,BC6066

Description

Model		BC 6050	BC 6063	BC 6066
Maximum cutting length(mm)		500	630	660
Max.range of the horizontal movement of the table		500	630	630
Max.distance between the ram bottom and table		370	385	385
Max.length of the vertical movement of table		270	360	360
Dimensions of table top(L×W)		440×360	630X400	660X400
Max.stroke length of the toolhead		120	120	120
Max.swivel angle of the toolhead		±60°	±60°	±60°
Max.section of tool(W×T)(mm)		20×30	20×30	20×30
Number of ram reciprocation per minute		14-80	14-80	14-80
Range of table feed:	horizontal	0.2-0.25 0.08-1.00	0.4-5.0	0.4-5.0
Range of table feed:	Vertical	0.2-0.25 0.08-1.00	0.08-1.00	0.08-1.00
Width of the T-slot for center positioning(mm)		18	18	18
Power of the main motor		3	3	3
N.W/G.W(kg)		1650/1760	1750/1870	1800/1920
Overall dimensions(L×W×H)(mm)		2160×1070×1194	2342×1225×1480	2357×1225×1480
