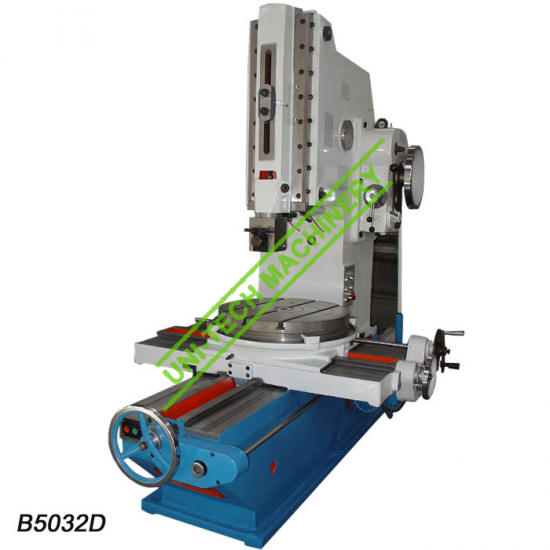

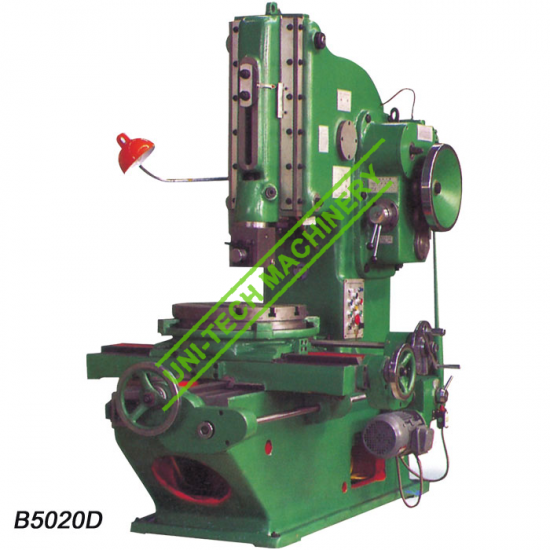

Slotting Machine B5020D,B5032D,B5050A,B5063

Name: Slotting Machine B5020D,B5032D,B5050A,B5063
SKU: 1961
Availability: InStock

Main Features:

1. This machine is used for slotting the flat and formed surface keyways, etc.

2. It is suitable for either single piece of small batch production

3. The main transmission mechanism is used for converting the rotating motion of the crank gear into reciprocating motion of rain

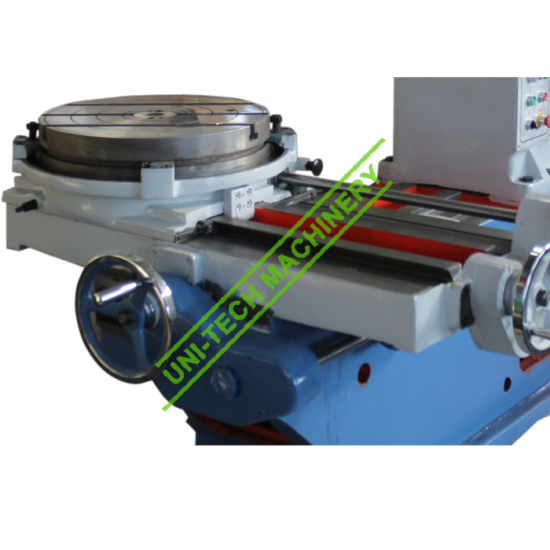

4. The worktable Is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually

5. The feed is stopped automatically, when the worktable is in case of trouble

Description

Specification	B5020D	B5032D	B5040	BC5050	B5063
Max slotting length	200mm	320mm	400mm	500mm	630mm
Max dimensions of workpiece (LxH)	485x200mm	600x320mm	700x320mm
Max weight of workpiece	400kg	500kg	500kg	2000kg	2000kg
Table diameter	500mm	630mm	710mm	1000mm	1120mm
Max longitudinal travel of table	500mm	630mm	560/700mm	1000mm	1120mm
Max cross travel of table	500mm	560mm	480/560mm	660mm	800mm
Range of table power feeds (mm)	0.052-0.738	0.052-0.738	0.052-0.783	3,6,9,12,18,36	3,6,9,36/16,12,24,29
Main motor power	3kw	4kw	5.5kw	7.5kw	10kw
Overall dimensions (LxWxH)	1836x1305x1995mm	2180x1496x2245mm	2450x1525x2535mm	3480x2085x3307mm	3580x2390x3660mm
