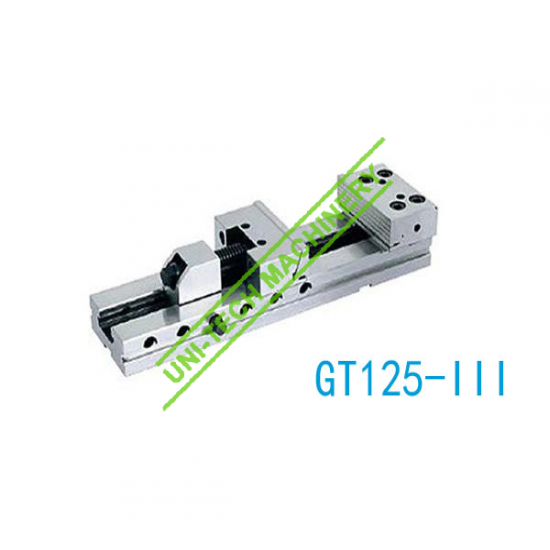

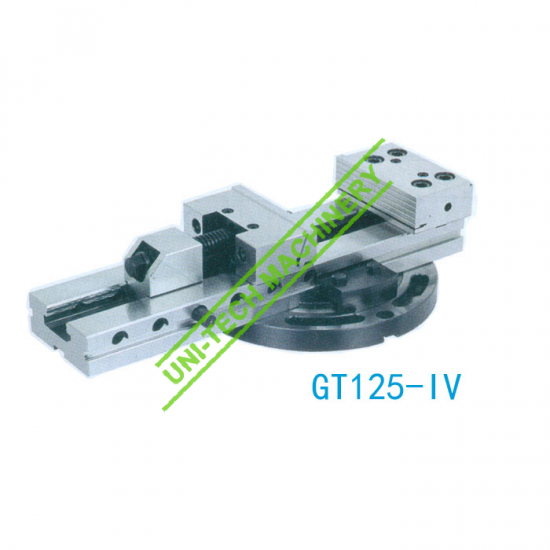

Precision Modular Vice GT125-III, GT125-IV

Features:

1.The vise is made of high-quality alloy steel carburized to surface hardness:HRC58-62

2.Parallelism is 0.005mm,100mm,squareness is 0.005mm

3.Locate position by pilot pin, adjust pin on body according to opening size, then clamp quickly.

4.It is widely used on machining center and other precision machine tools

Category:

Description

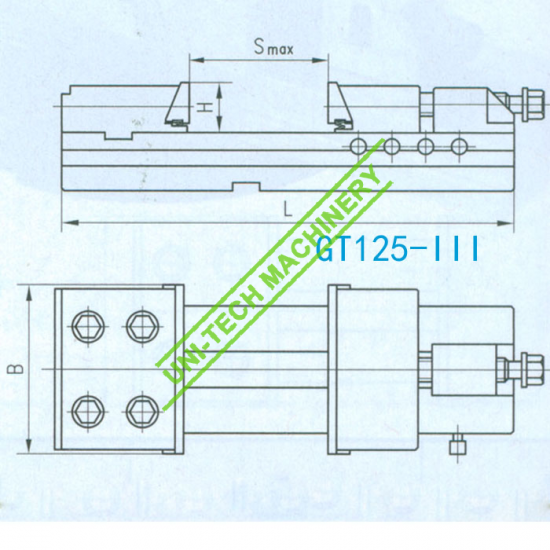

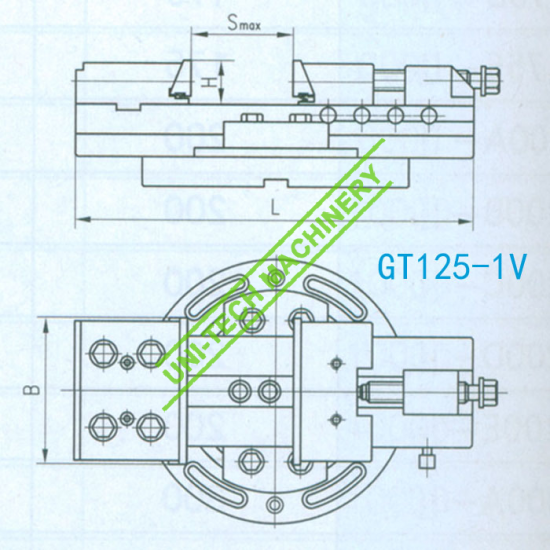

Model No. B(mm) H(mm) Smax(mm)     L(mm) Clamping Force
GT125-III   125    40     150      345       3000
GT150A-III   150    50     200      420       5000
GT150B-III   150    50     300      520       5000
GT175C-III   175    60     400      655       6000
