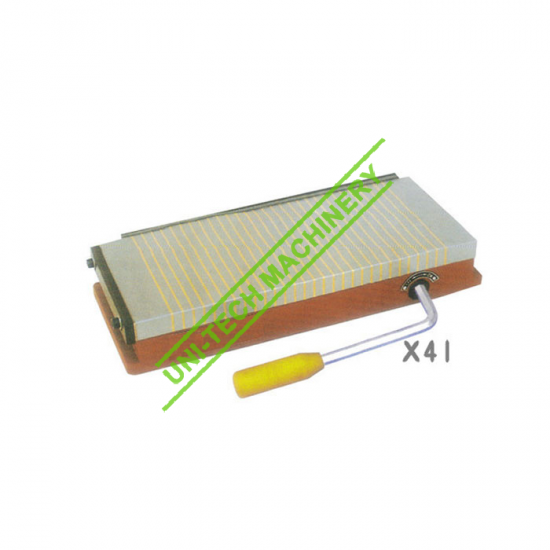

Permanent Magnetic Chuck X41

Permanent Magnetic Chuck X41

Features:

1. It is a kind of surface grinding machine rectangle grinder and tool grinder and lathe of main accessories.

2. Extra strong magnetic force and less remaining magnetism.

3. While turning magnetic for ON or OFF, the accuracy of magnetic force surface does not change and can keep high precision

processing surface.

4. Large effective area for machining the work pieces.

5. Constructed of hardened alloy tool steel.

6. Low height for more wheel clearance.

7. Positive locking at all angles without any distortion.

Category:

Description

Model British standard Dimensions（mm） Pole pitch（mm） Magnetic（N/C㎡） Weight（kg） Overall（cm）
L W H
X41 100*175 4*7 175 100 60 8+2 ≥ 60 6 29*20*12
X41 100*260 4*10 260 100 60 8+2 ≥ 60 7.3 39*20*12
X41 125*250 5*10 250 125 60 8+2 ≥ 60 10 35*23*12
X41 150*300 6*12 300 150 60 8+2 ≥ 80 17 40*25*12
X41 150*350 6*14 350 150 60 8+2 ≥ 80 19 45*25*12
X41 150*400 6*16 400 150 60 8+2 ≥ 80 20 50*25*12
X41 150*460 6*18 460 150 60 8+2 ≥ 80 29 57*25*12
X41 200*400 8*16 400 200 60 8+2 ≥ 80 31 53*30*12
X41 200*460 8*18 450 200 60 8+2 ≥ 80 34 57*30*12
X41 200*500 8*20 500 200 60 8+2 ≥ 80 36 64*30*12
X41 200*560 8*22 560 200 60 8+2 ≥ 80 42 67*30*12
X41 200*600 8*24 600 200 80 8+2 ≥ 80 54.4 71*30*14
X41 250*500 10*20 500 250 60 8+2 ≥ 80 51 64*35*12
X41 250*600 10*24 600 250 85 8+2 ≥ 80 68.5 75*35*15
X41 300*600 12*24 600 300 85 12+4 ≥ 80 90 75*40*15
