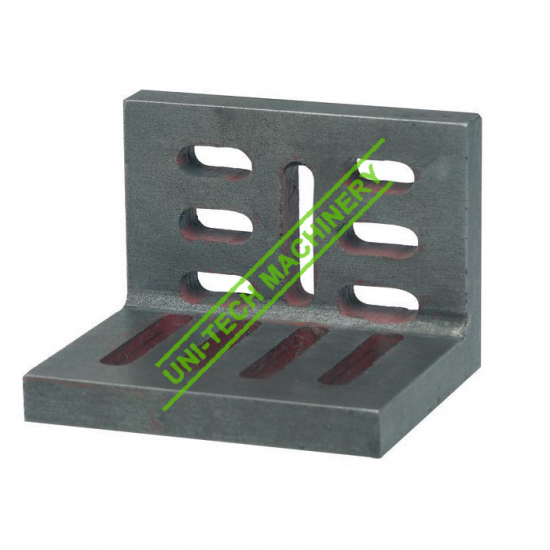

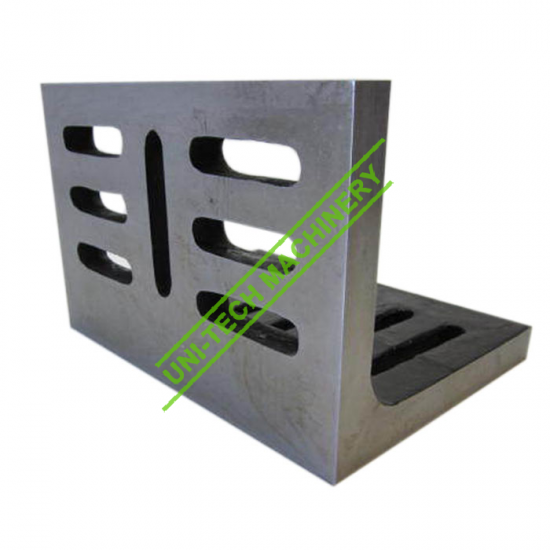

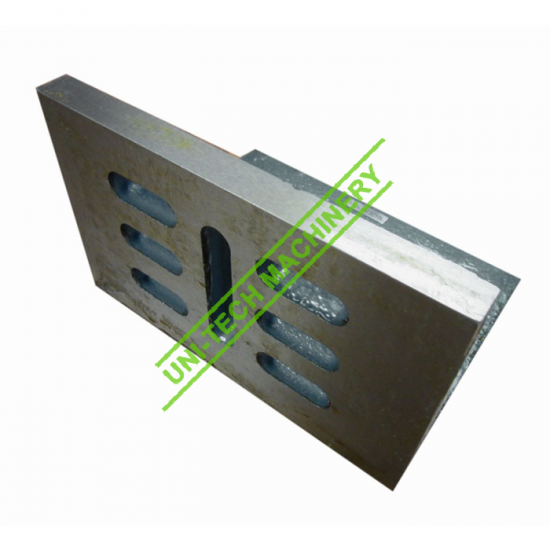

Slot Angle Plate SAP-45,SAP-60,SAP-80,SAP-100,SAP-120

Main Features:

1. Open-end style, accurately machined square and parallel on all faces

2. High tensile cast iron seasoned against distortion (HT200)

3. Convenient clamping slots for mounting and are widely used for machining, layout and inspection

4. Slot A is 90 degrees to slot C

5. All surface grinding precisely

Category:

Description

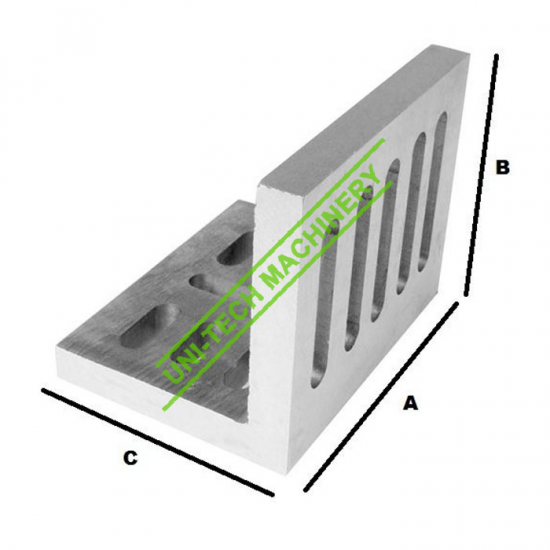

MODEL A(L) B(W) C(H) WEIGHT(kgs)
SAP-45 4~1/2″ 3-1/2″ 3″ 1.3
SAP-60 6″ 5″ 4-1/2″ 4
SAP-80 8″ 6″ 5″ 6
SAP-100 10″ 8″ 6″ 12
SAP-120 12″ 9″ 8″ 20
