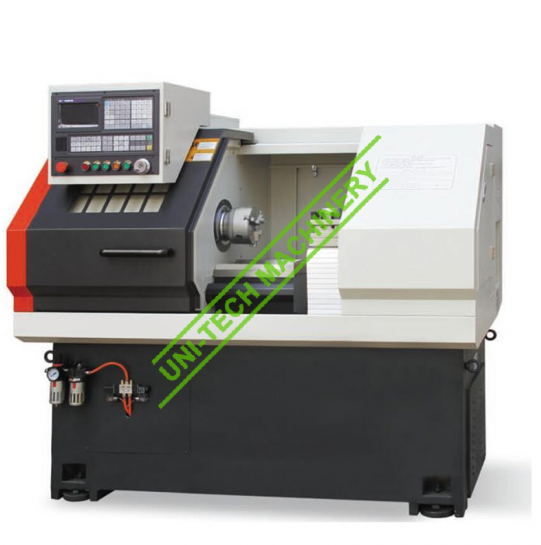

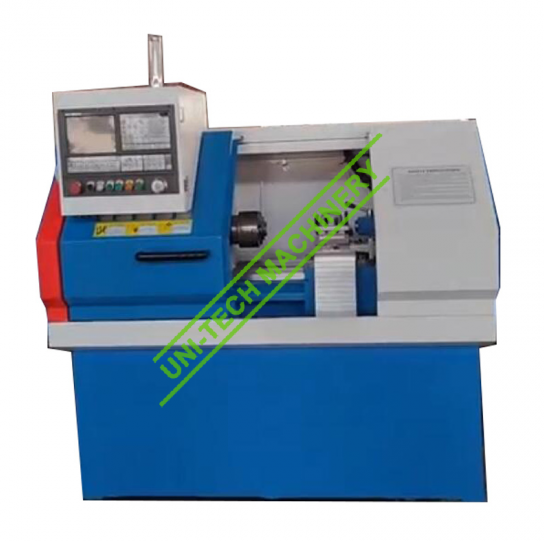

Model

CK6130

max swing over bed

300mm

X axis travel

300mm

Z axis travel

350mm

max swing over cross slide

100mm

max working length

320mm

spindle bore

48mm

bar capacity

40mm

spindle nose

A2-5

chuck size

collet

spindle speed

2500rpm

tailstock diameter

52mm

tailstock taper

MT4

tailstock travel

90mm

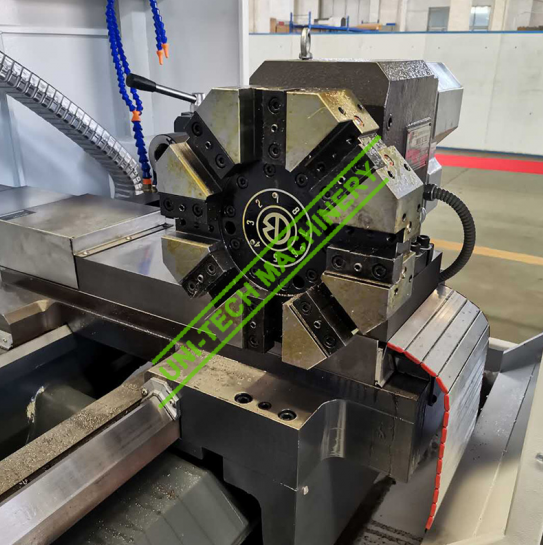

electric tool post pcs

4

tool size

16x16mm

X/Z rapid speed

8/10m/min

X /Z feed motor torque

4/4N.M

main motor

4kw

weight

950kg

dimension

1600x1100x1650mm
