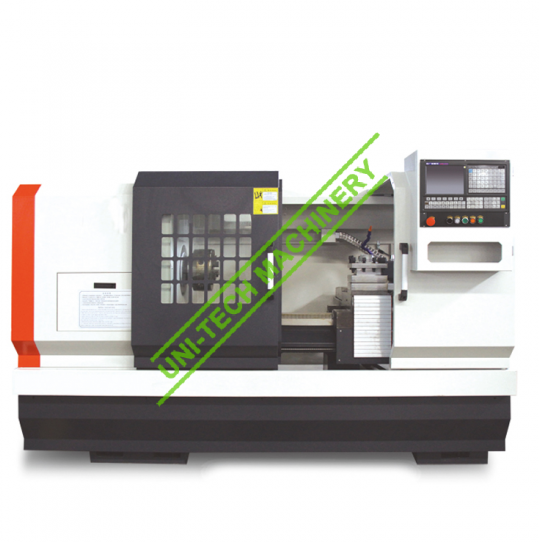

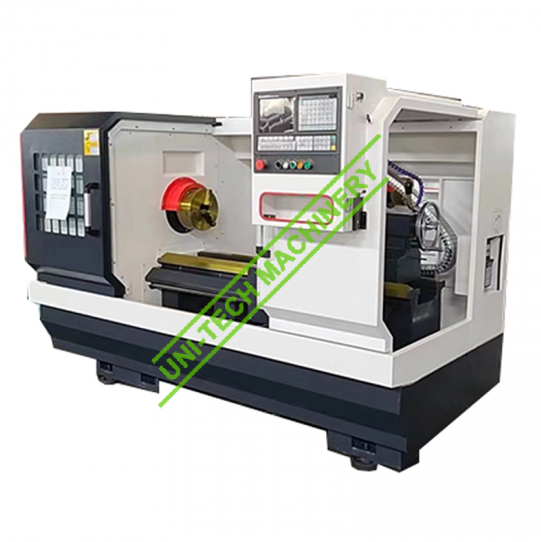

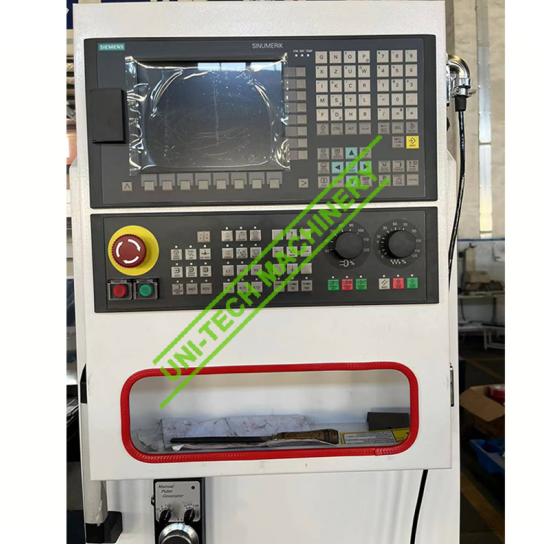

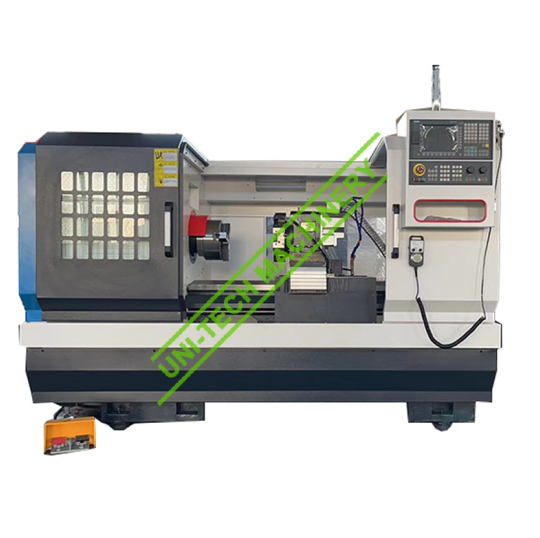

Model

Unit

CK6150

CK6160

max swing over bed

mm

Φ500

Φ600

X axis guide span

mm

210

210

Z axis guide span

mm

400

400

max swing over cross slide

mm

Φ250

Φ395

distance between centers

mm

1000/1500/2000

1000/1500/2000

max turning diameter for disc

500

600

max turning length

mm

850/1350/1850

850/1350/1850

center height

mm

276

spindle bore

mm

Φ82

Φ82(Φ130 as optional)

Through the bar diameter

mm

Φ80

Φ80(Φ128 as optional

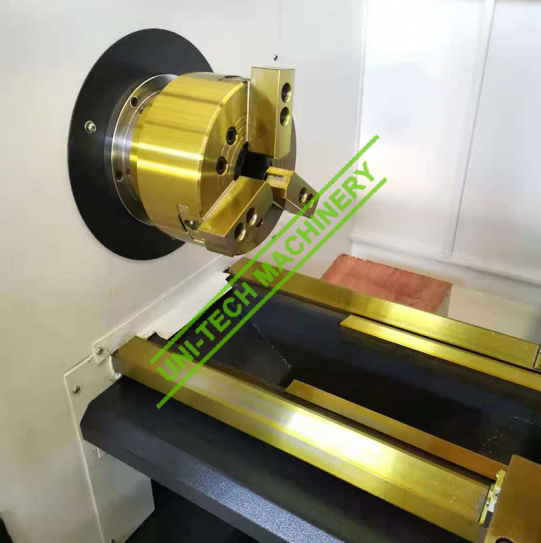

spindle nose

A2-8

A2-8/A2-11

chuck size

mm

Φ250

Φ250

spindle taper

metric 90，1：20

metric 90，1：20

spindle speed

rpm

1800

1600

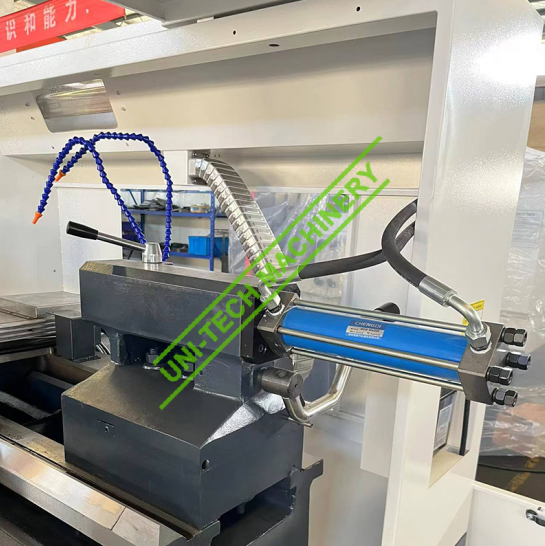

tailstock quill diameter

mm

φ75

φ75

tailstock quill taper

No

MT5#

MT5#

tailstock quill trave

mm

150

150

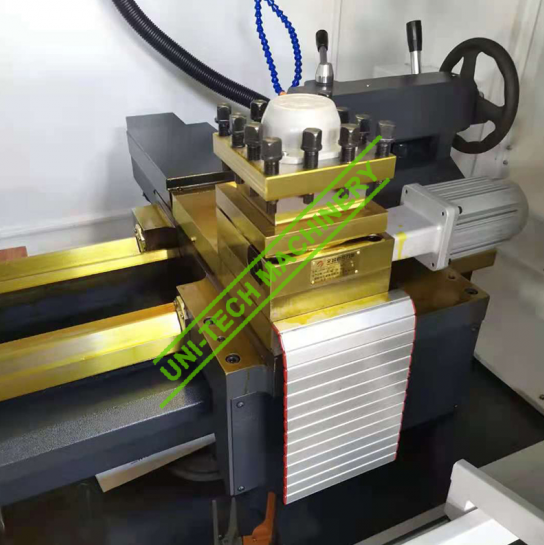

electric turret

4 station(6station or 8station as optional)

4 station(6station or 8station as optional)

cutting tool size

mm

□25×25

□25×25

X/Z rapid speed

m/min

‘6/8

‘6/8

X travel

mm

280

320

Z travel

mm

1000/1500/2000

1000/1500/2000

Repeat position

mm

X：±0.005；Z：±0.007

±0.005

spindle motor

KW

7.5

7.5

machine weight

Kg

2550/2860/3150

2652650/2930/3200

machine size

mm

2600/3150/3650×1650×1820

2650/3250/3750x1700x1820
