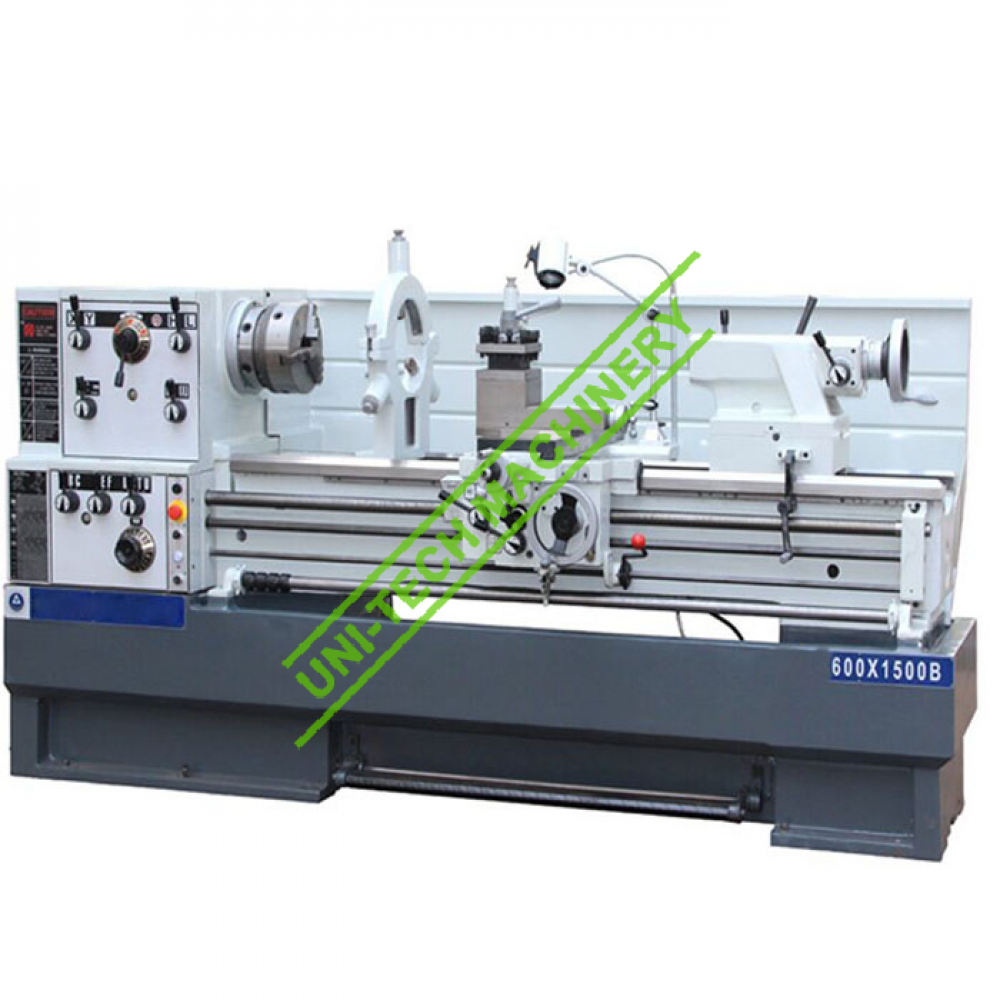

Name: Gap Bed Lathe Machine C6253B
SKU: 594
Availability: InStock

Gap Bed Lathe Machine C6253B

Features:

1. Triple bearings supporting headstock spindle

2. Adjustable taper roller bearings providing spindle accuracy

3. Precision V-beds & headstock gears are all hardened & ground

4. One piece cast iron base increases rigidity

5. Overload protection on drive motor and coolant system

6. Universal enclosed gearbox incorporating metric & imperial thread capabilities

7. Inching button incorporated on the control panel for convenient spindle speed selection

8. Foot operated spindle brake with safety cut out switch

9. 350mm wide induction hardened heavy duty cast iron bed

10. Removable gap bed allowing work piece to swing up to 785mm

11. Chuck guard fitted with safety microswitch

12. Powered longitudinal and cross feeds

13. Adjustable 4 position length-stop mechanism for accurate repetitive operation

14. Micro adjustable saddle stop

15. Dual calibrated dials incorporating metric & imperial graduations

16. Coolant system with flexible hose enabling operator to manipulate flow direction

17. Oil sight glass for head stock and gearbox

18. Low voltage halogen work light

19. Lubrication pump on saddle oiling slides

20. D1-8 camlock spindle for quick chuck removal

Description

Model	C6253B×1000/1500/2000
Swing over bed	Φ530mm（20 7/8″）
Swing over cross slide	Φ329mm(12 31/32″)
Swing in gap(D×W)	765mm×218mm(D1-8)/765mm×240mm(A1-8)
Height of center	265mm(10 7/16″)
Distance between centers	1015mm/1515mm/2015mm
Width of bed	400mm(15 3/4″)
Max. section of cutting tool	25mm×25mm(1″×1″)
Total travel of cross slide	320mm(12 5/8″)
Total travel of top slide	200mm(7 7/8″)
Spindle bore	Φ82mm(3 1/4″)
Spindle nose	D1-8 or A1-8
Spindle morse taper in nose,in sleeve	ME90/M.T.#5
Spindle speeds number	12
Spindle speeds range	20-1600 R.P.M
Leadscrew diameter&thread	40mm(1 9/16″)×4 T.P.I or pitch 6mm
Threads imperial pithches	4-112(50 NOS)
Threads metric pithches	0.25-7(24 NOS)
Diametral pitches DP/DP	4-112(50 NOS)
Diametral pitches MP/MP	0.25-14(34 NOS)
Longitudinal feeds(imperial/metric)	0.0011″-0.0316″(50Nos)/0.01mm-0.286mm(50Nos)
Cross feeds(imperial/metric)	0.00024″-0.0068″(50Nos)/0.01mm-0.286mm(50Nos)
Total travel of tailstock quill	180mm(7 5/64″)
Tails stock quill	Φ75mm(2 61/64″)
Taper tailstock quill	M.T.#5
Spindle drive motor	10.0HP
Coolant pump motor	1/8HP(0.1KW)
Machine dimension	94″×38″×52″/114″×38″×52″/134″×38″×52″
Packing dimension	98″×43″×71″/118″×43″×71″/138″×43″×71″
N.W	2490KG/2750KG/3010KG
G.W	2790KG/3090KG/3400KG
