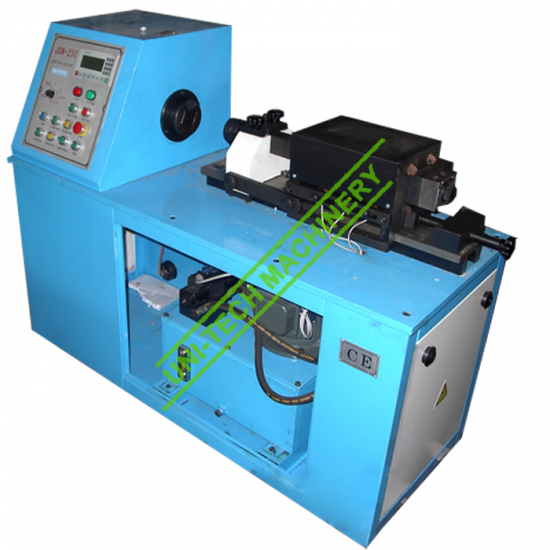

Metal Craft Twisting machine TM-25B,C

Main Features:

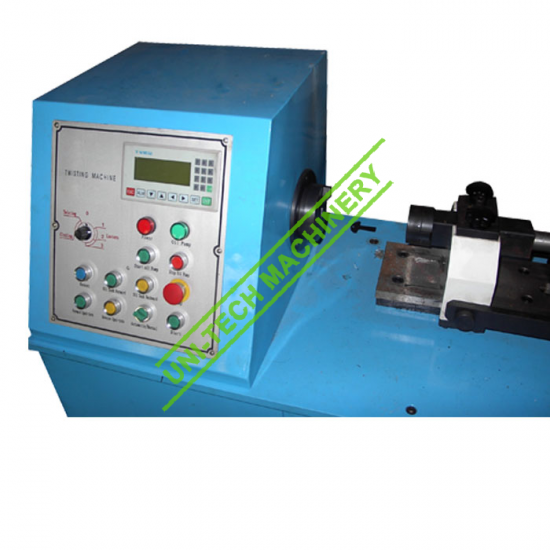

1. Semi-automatic control for maximum repeatability in series parts production.

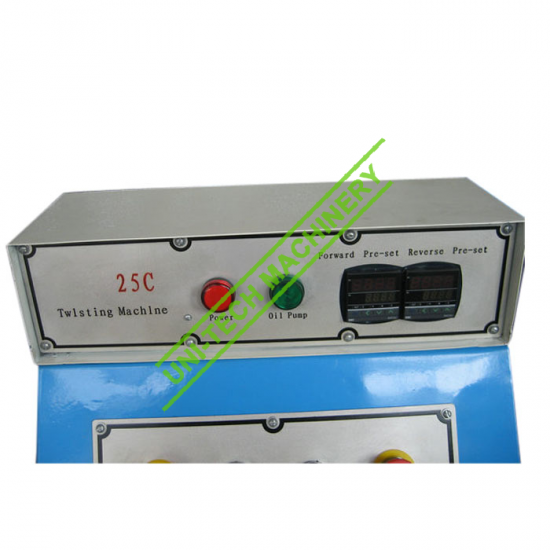

2. Number of Rotation, over-tensioning and dwell time pre-selected at the control unit for semi-automated operation.

3. Special for square or flat steel ornamental, twisting function for TM-25B,   twisting and lantern function for TM-25C

Description

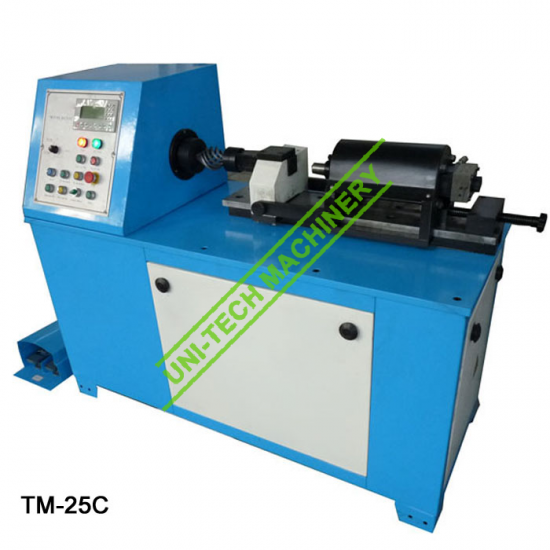

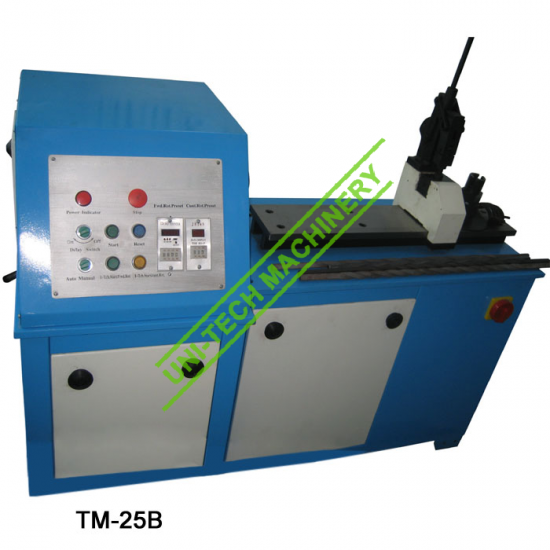

MODEL  TM-25B TM-25C
Max. Twisting size   (mm) Square bar 25X25 25X25

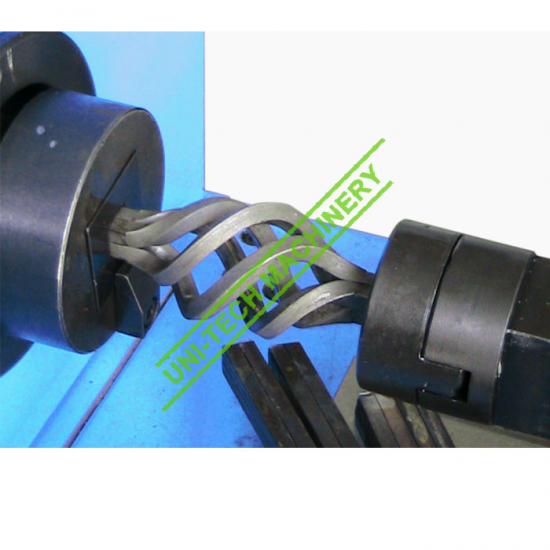

Lantern Twisting size (mm) Square Bar 6X6X170,8X8X190,
10X10X240
6X6X170,8X8X190,
10X10X240
Round Bar 6×170,8×190
10×210
6×170,8×190
10×210
Working Travel  (mm) \ 120mm
Oil pump motor Power \ 3HP
Out Rotational speed R/Min 13 13
Motor Power 3KW(50HZ/60HZ),  220/380V 3PH.
Packing size (cm) 157X72X123 157X72X123
N.G. Weight (kg) 480/500 550/600
