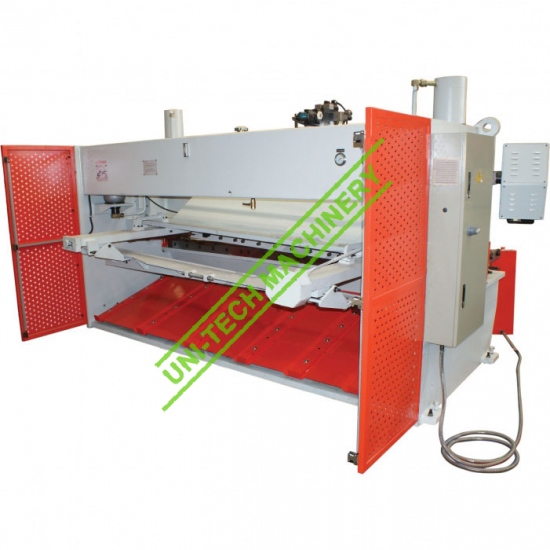

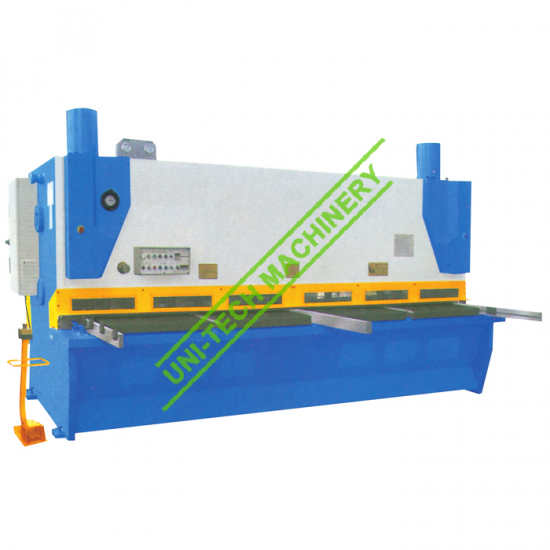

Name: Hydraulic Guillotine Shearing Machine QC11Y
SKU: 2535
Availability: InStock

Hydraulic Guillotine Shearing Machine QC11Y

Main Features:

1. The second generation of hydraulic shear

2. Welded steel plate construction, stress relieved

3. Advanced integrated hydraulic system with excellent reliability

4. 3-point support on the rolling guide with for improved shearing quality

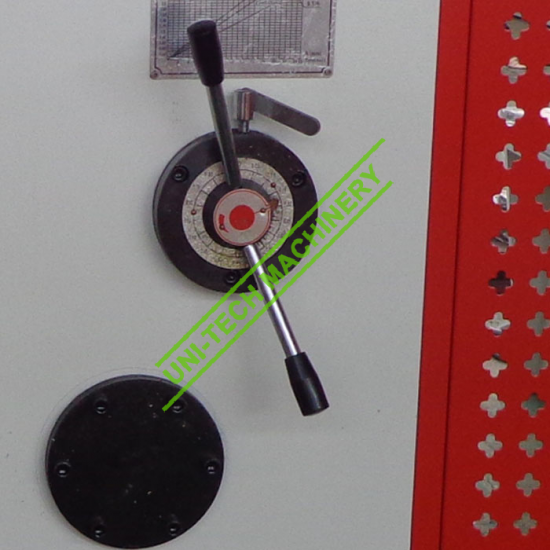

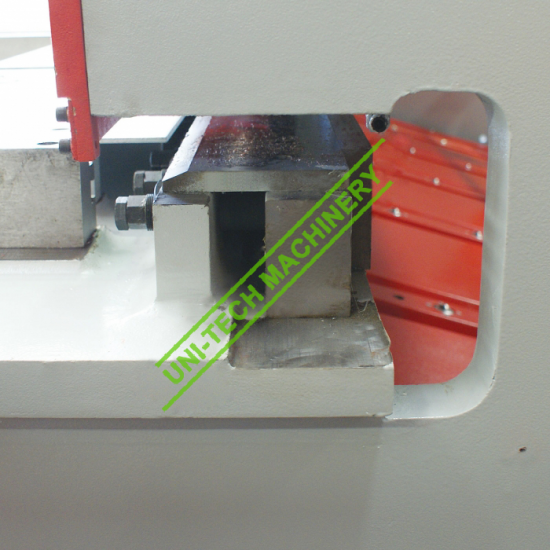

5. Rapid, accurate, and convenient adjustment of blade clearance with hand wheel

6. Rectangular blades with 4 cutting edges for long cutting life

7. Adjustable rake angle to minimize plate deformation

8. Cutting beam with inner-inclined structure provides easy fall down for plates and high accuracy

9. Shearing in section: Shadow-line cutting

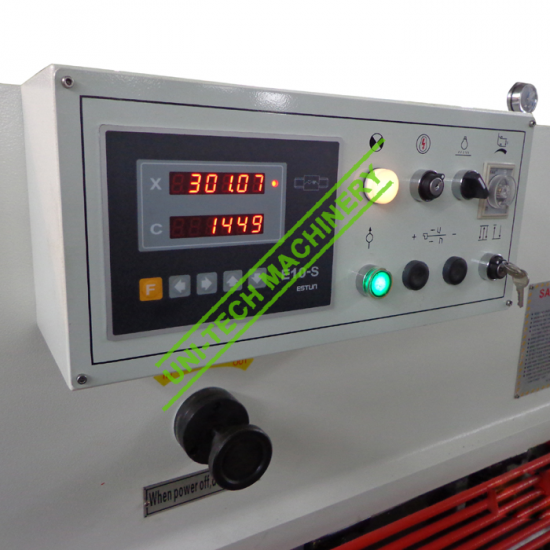

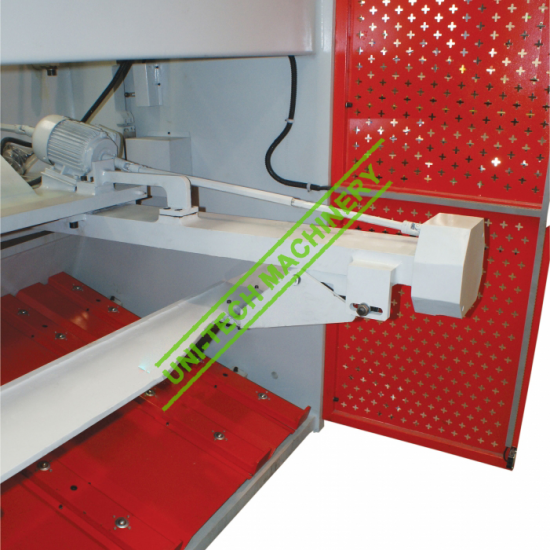

10. Counter for the motorized back gauge

Description

Model	Mild	Cutting	Depth of	Back Gauge	Rake Angle Adjustment	Strokes Per Minute	Main Motor	L×W×H(mm)	Weight(t)
	Steel	Length	Throat(mm)	Range(mm)
	(450MPA)	(mm)
4×2000	4	2000	80	350	0.5°～1°30′	14	5.5	2600×1350×1840	3.8
4×2500	4	2500	80	350	0.5°～1°30′	14	5.5	3125×1450×1765	4.5
6×2500	6	2500	80	600	0.5°～1°30′	14	7.5	3100×1725×1900	5.3
6×3200	6	3200	80	600	0.5°～1°30′	12	7.5	3935×1840×1995	6.5
6×4000	6	4000	80	600	0.5°～1°30′	10	7.5	4650×1840×2075	7.5
6×5000	6	5000	80	600	0.5°～1°30′	8	7.5	5650×1830×2250	10.5
6×6000	6	6000	80	600	0.5°～1°30′	8	7.5	6650×1980×2380	15.2
8×2500	8	2500	80	600	0.5°～1°30′	14	7.5	3135×1840×2075	6
8×3200	8	3200	80	600	0.5°～1°30′	12	7.5	3850×1750×1980	6.8
8×4000	8	4000	80	600	0.5°～1°30′	10	7.5	4650×1890×2075	8.5
8×5000	8	5000	80	600	0.5°～2°	7	15	5805×2000×2500	12.5
8×6000	8	6000	100	600	0.5°～2°	7	15	6805×2115×2715	19.8
10×2500	10	2500	120	600	0.5°～2°30′	10	15	3195×1915×2205	8.2
10×3200	10	3200	120	600	0.5°～2°30′	8	15	3895×1900×2235	9.15
10×4000	10	4000	120	600	0.5°～2°30′	6	15	4695×1970×2270	9.15
10×5000	10	5000	120	600	0.5°～2°30′	5	15	5905×2115×2715	16
10×6000	10	6000	120	600	0.5°～2°30′	5	15	6905×2115×2800	22
12×2500	12	2500	120	600	0.5°～2°30′	10	15	3195×1800×2210	8.7
12×3200	12	3200	120	600	0.5°～2°30′	8	15	3895×1800×2240	9.8
12×4000	12	4000	120	600	0.5°～2°30′	6	15	4710×1950×2485	13.4
12×5000	12	5000	120	600	0.5°～2°30′	5	18.5	5905×2115×2800	20
12×6000	12	6000	120	600	0.5°～2°30′	4	18.5	7000×2300×3100	29
16×2500	16	2500	120	600	0.5°～2°30′	8	15	3215×1970×2340	9
16×3200	16	3200	120	600	0.5°～2°30′	7	15	3915×1970×2455	11
16×4000	16	4000	120	600	0.5°～2°30′	6	15	4715×2010×2590	15
16×5000	16	5000	120	600	0.5°～3°	5	22	6000×2300×3000	23
16×6000	16	6000	120	600	0.5°～3°	4	37	7000×2300×3100	36
20×2500	20	2500	120	600	0.5°～3°	6	22	3235×2020×2465	10.5
20×3200	20	3200	120	600	0.5°～3°	5	30	4150×2065×2755	18
20×4000	20	4000	120	600	0.5°～3°	4	30	4955×2125×2885	21
20×5000	20	5000	120	600	0.5°～3°	4	37	6000×2300×3050	29
25×2500	25	2500	120	600	0.5°～3.5°	5	30	3465×2130×2710	15.3
25×3200	25	3200	120	600	0.5°～3.5°	5	30	4120×2200×3000	21
25×4000	25	4000	120	600	0.5°～3.5°	3	30	4950×2200×3150	26
30×2500	30	2500	120	600	1°～3.5°	4	30	3465×2170×2770	17
30×3200	30	2500	120	600	1°～3.5°	3	37	4200×2300×3200	23
