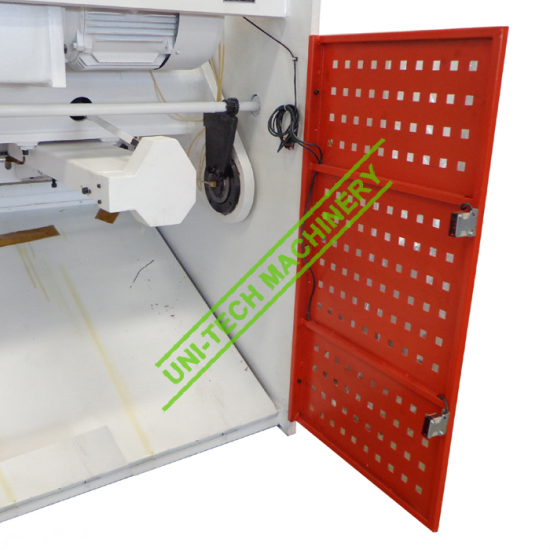

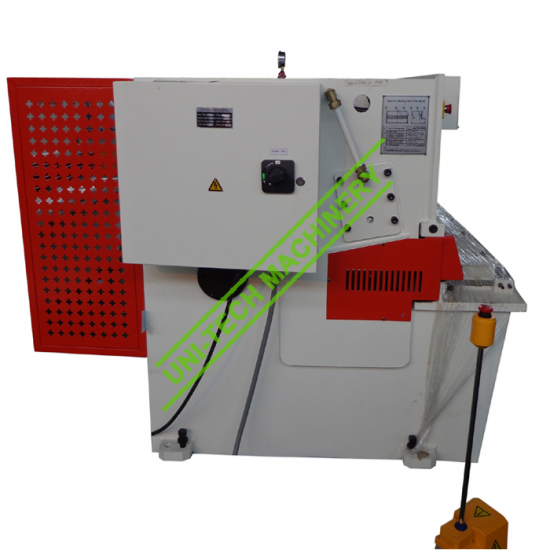

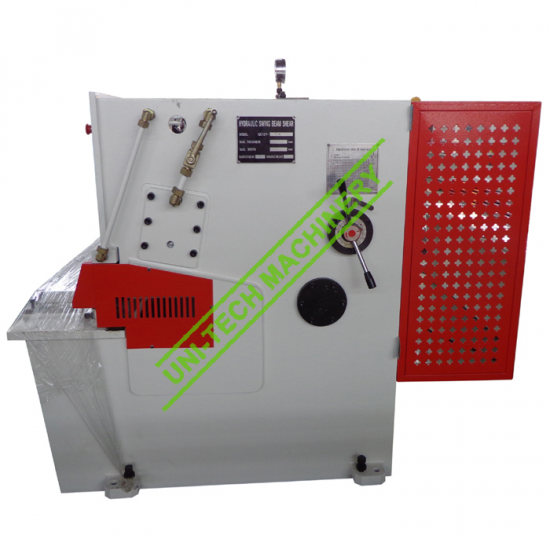

Hydraulic Swing Beam Shearing Machine QC12Y
Hydraulic Swing Beam Shearing Machine QC12Y - Image 2
Hydraulic Swing Beam Shearing Machine QC12Y - Image 3
Hydraulic Swing Beam Shearing Machine QC12Y - Image 4
Hydraulic Swing Beam Shearing Machine QC12Y - Image 5
Hydraulic Swing Beam Shearing Machine QC12Y - Image 6
Hydraulic Swing Beam Shearing Machine QC12Y - Image 7
Hydraulic Swing Beam Shearing Machine QC12Y - Image 8
Hydraulic Swing Beam Shearing Machine QC12Y - Image 9
Hydraulic Swing Beam Shearing Machine QC12Y - Image 10

Hydraulic Swing Beam Shearing Machine QC12Y

Main Features:

1. Completely welded with steel plates, the construction is firm and rigid

2. The front supports can hold and measure the workpiece

3. Piece receiver (can be equipped with pneumatic piece receiver)

4. Strong hydraulic pump

5. Hydraulic overload protection and LCL touch screen

6. Adjust the back-gauge, blades gap, cutting times automatically

7. A function to alarm the error

8. Foot pedal with emergency stop

Category:

Description

Model Shear size (TxW) (mm) Shear angle No load strokes Adjustment Main motor power(kw) Net weight Dimensions (LxWxH) (mm)
(times/min) range of back gauge (mm) (kg)
QC12Y-4X2000 4X2000 1°30′ 20 20-600 4 2800 2560X1400X1450
QC12Y-4X2500 4X2500 1°30′ 20 20-600 4 3500 3110X1400X1450
QC12Y-6×2500 6X2500 1°30′ 18 20-600 7.5 6000 3040X1610X1620
QC12Y-6×3200 6X3200 1°30′ 14 20-600 7.5 7200 3840X1610X1620
QC12Y-6×4000 6X4000 1°30′ 10 20-600 7.5 10000 4640X1705X1700
QC12Y-6×5000 6X5000 1°30′ 5 20-600 7.5 13000 5790X2155X1900
QC12Y-8×2500 8X2500 1°30′ 14 20-600 11 6500 3140X1610X1620
QC12Y-8×3200 8X3200 1°30′ 10 20-600 11 7800 3840X1610X1620
QC12Y-8×4000 8×4000 1°30′ 8 20-600 11 11000 4680X1705X1700
QC12Y10x2500 10×2500 1°48′ 10 20-600 15 7000 3350X2050X1950
QC12Y-10×3200 10×3200 1°48′ 8 20-600 15 11000 4050X2050X1790
QC12Y-10×4000 10×4000 1°48′ 8 20-600 18.5 14000 4920X2250X1790
QC12Y-12×2500 12×2500 1°48′ 10 20-800 18.5 7800 3320X2050X1790
QC12Y-12×3200 12×3200 1°48′ 8 20-800 18.5 12000 1020X2050X17900
QC12Y-12×4000 12×4000 1°48′ 7 20-800 18.5 16000 4850X2400X2200
QC12Y-16×2500 16×2500 2° 8 20-800 30 15000 3300X2300X2150
QC12Y-16×4000 12×4000 2° 7 20-800 30 23000 4800X2300X2150
QC12Y-16×3200 16×3200 2° 7 20-800 30 16000 4100X2300X2150
QC12Y-16×4000 16×4000 2° 6 20-800 30 23000 4800X2300X2150
QC12Y-20×2500 20×2500 2° 8 20-800 45 16000 3300X2300X2650
QC12Y-20×3200 20×3200 2° 5 20-800 45 25000 4100X2350X2710
QC12Y-20×4000 20×4000 2°30′ 4 20-800 45 30000 4850X2400X2200
