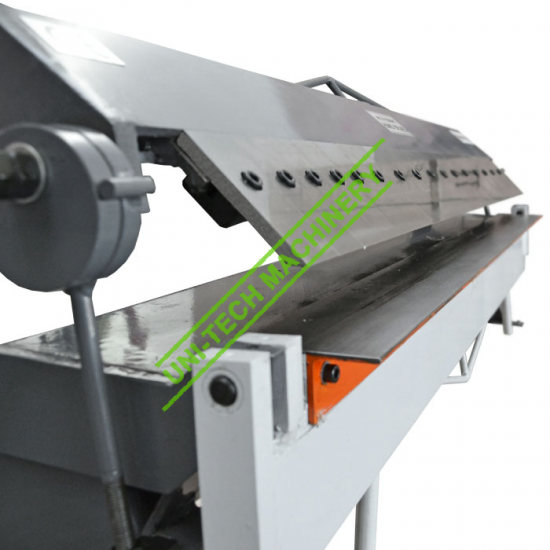

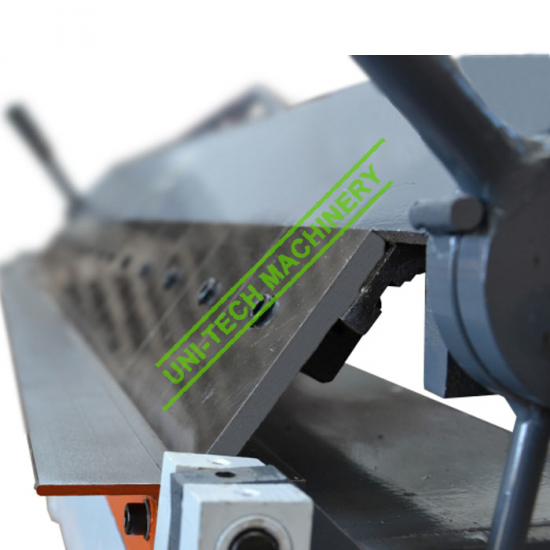

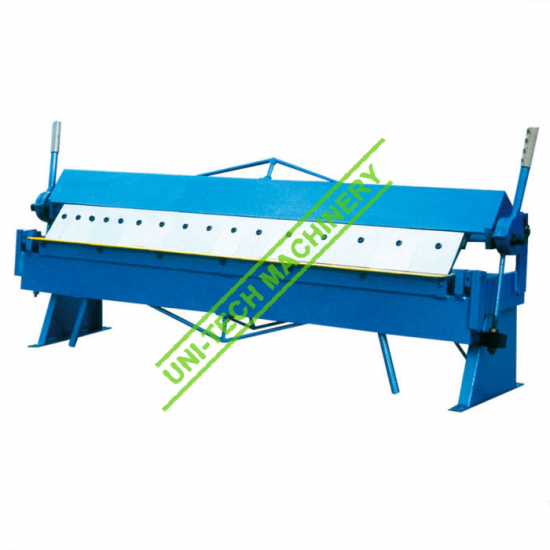

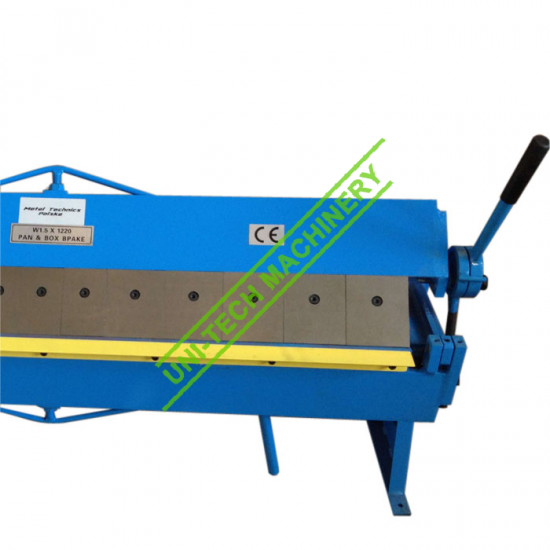

Pan & Box Brake W1.5×1220

Features:

1. The bending blade is a kind of folded box, featuring simple structure and easy operation.

2. Counterbalanced for ease of operation and precision aligned with cam action lever to raise the beam high over bed.

3. This brake also features angle indicator with adjustable stop for repeated bends.

4. Right hand beam control lever.

5. Large counterbalance brake handle.

6. Adjustable angles stop.

7. Its maximum bending thickness is 1.5 mm.

Category:

Description

Model W1.5X1220
Capacity Length 1220mm
Thickness 1.5mm
Angle 0-135°
Packing size(cm) 161x48x68
N.W./G.W.(kg) 135/151
