Pan & Box Brake W2.5X1220,W2.0X2040A,W2.5X2540A

Features:

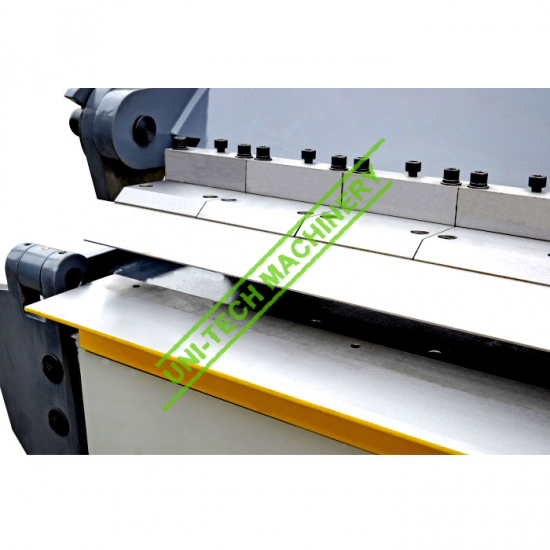

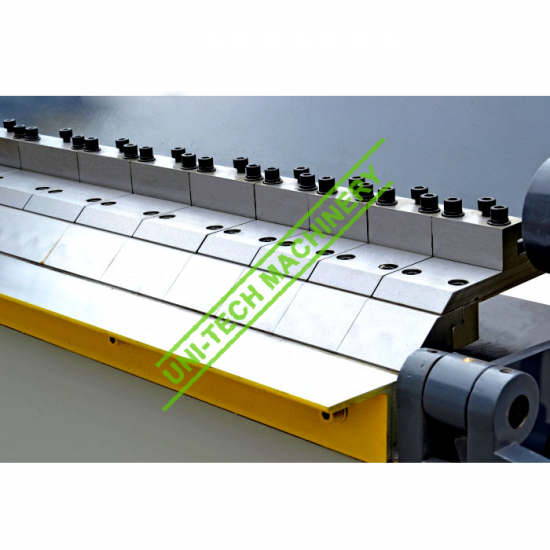

1. With segment bending blade for the bending of box section.

 2. Various widths segment shiftable setup.

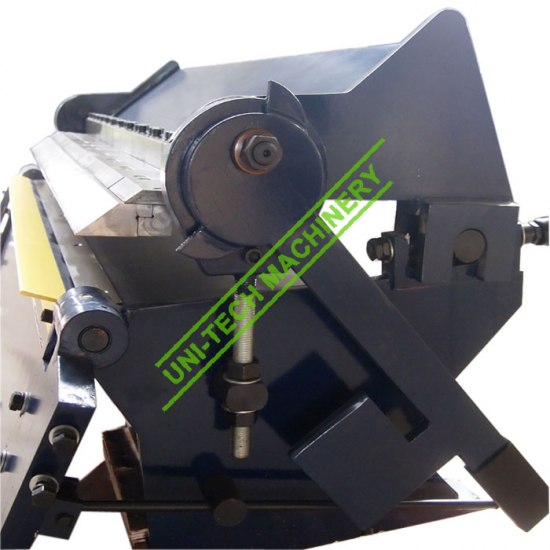

 3. With balanced hammer, it can be easy to operate and easy for folding.

 4. Have different models for optional.

Category:

Description

Model Capacity(mm) Packing size(cm) N.W./G.W.(kg)
Length Thickness Angle

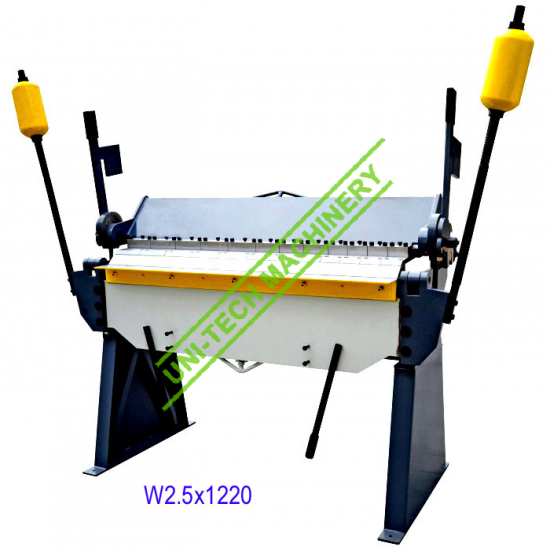

W2.5X1220 1220mm(48″) 2.5mm(12Ga) 0-135° 171x75x94 513/575

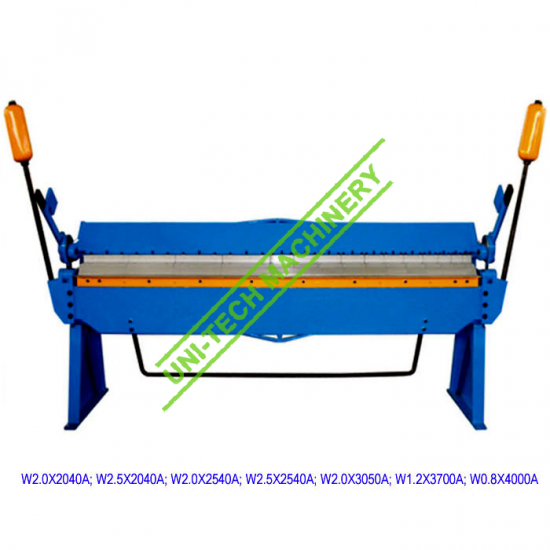

W2.0X2040A 2040mm(80″) 2.0mm(14Ga) 0-135° 255x76x100 850/1000
W2.5X2040A 2040mm(80″) 2.5mm(12Ga) 0-135° 255x76x100 1145/1295
W2.0X2540A 2540mm(100″) 2.0mm(14Ga) 0-135° 300x76x100 1190/1360
W2.5X2540A 2540mm(100″) 2.5mm(12Ga) 0-135° 300x76x100 1310/1480
W2.0X3050A 3050mm(120″) 2.0mm(14Ga) 0-135° 350x76x110 1490/1690
W1.2X3700A 3700mm(146″) 1.2mm(20Ga) 0-135° 425x85x120 2450/2670
W0.8X4000A 4000mm(157″) 0.8mm(22Ga) 0-135° 470x90x120 2700/2950
