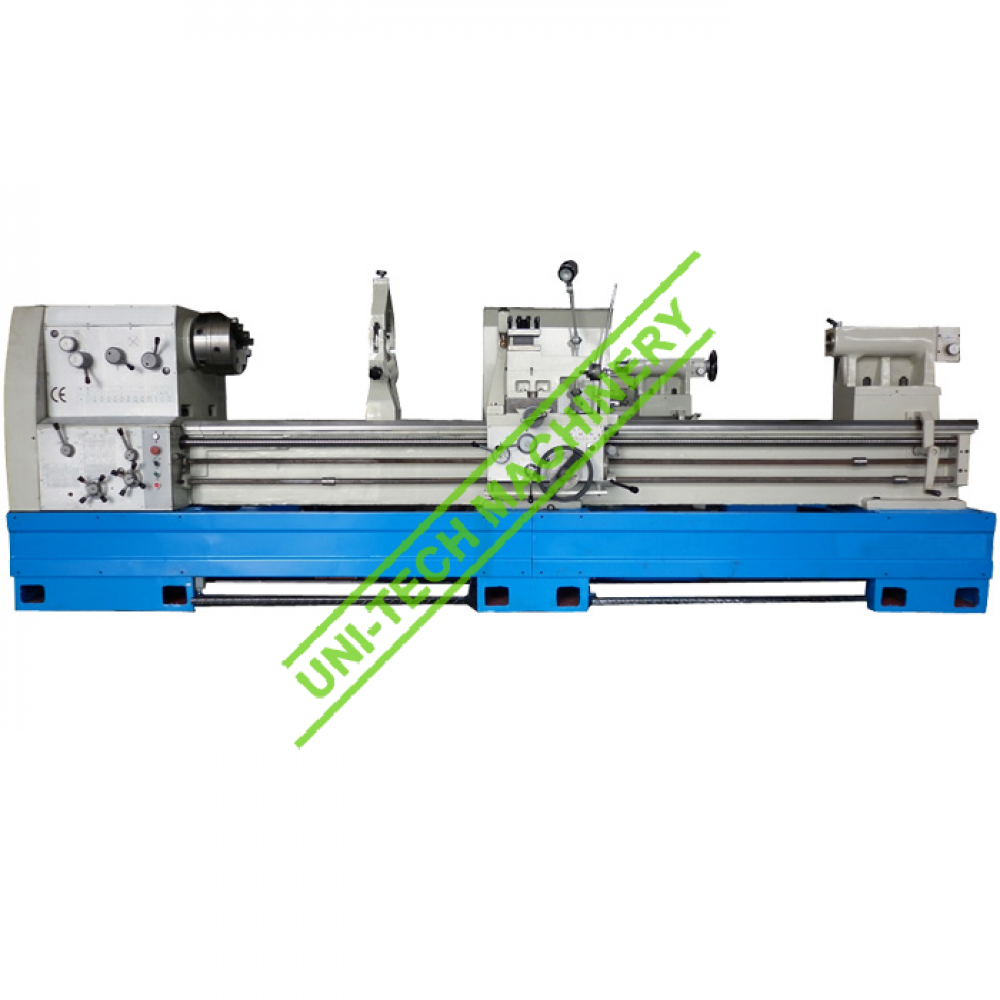

Gap Bed Lathe Machine CHY series

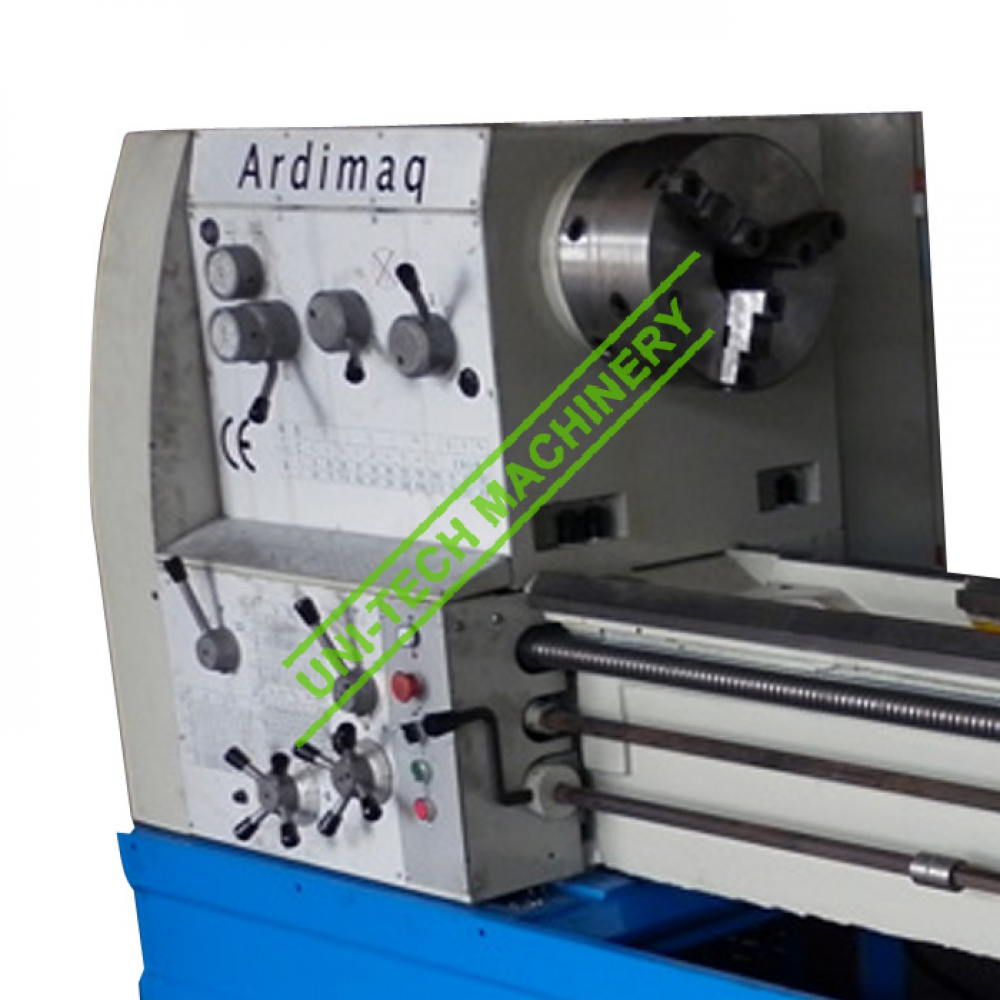

Gap Bed Lathe Machine CHY series - Image 2

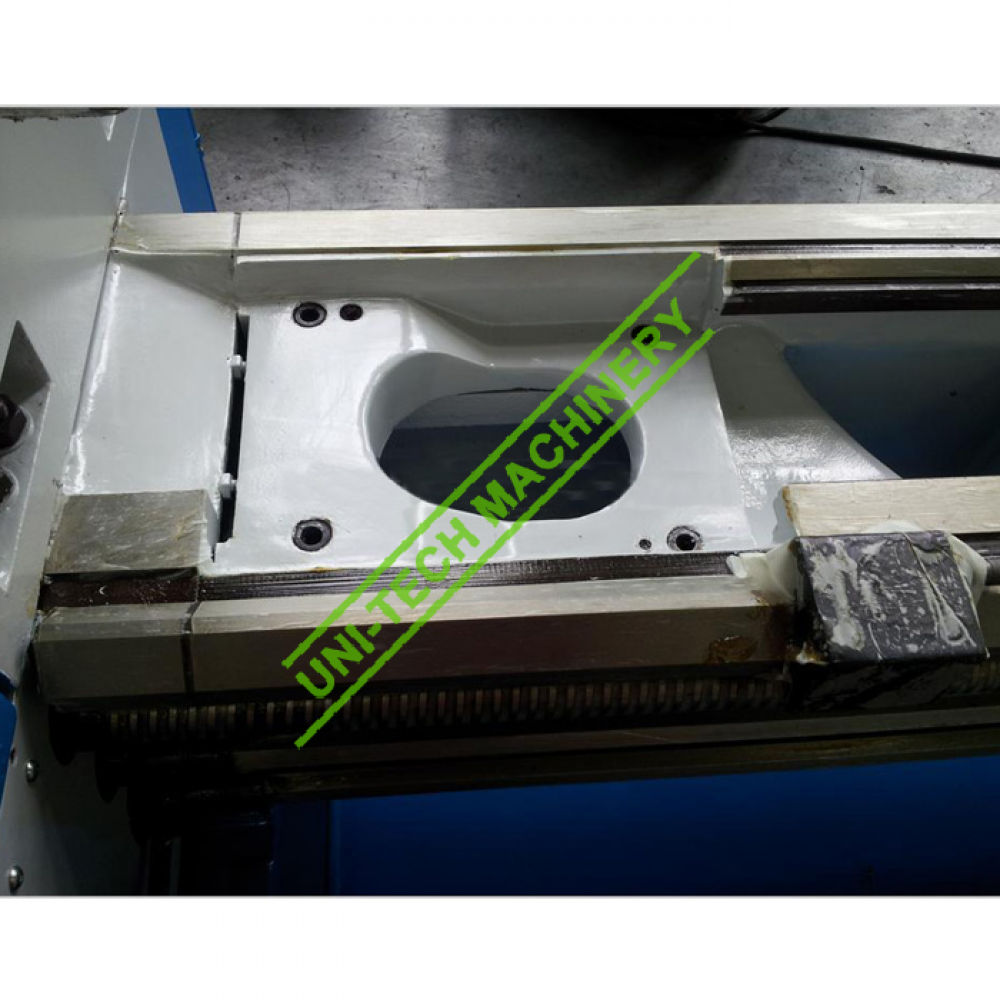

Gap Bed Lathe Machine CHY series - Image 3
Gap Bed Lathe Machine CHY series - Image 4
Gap Bed Lathe Machine CHY series - Image 5

Gap Bed Lathe Machine CHY series

Main features:

1. The surface of the bedways is supersonicfrequency hardened.

2. Gears precisely ground to reduce noise.

3. Spindle bore 103mm.

4. No need for change gear. the machine cantrun 72 kinds of metric, inch, module and d.p. Threads.

5. Clutch in headstock makes the lathe more safe and reliable.

Category:
Tags:

Description

Model CHY6266 CHY6280 CHY62100
CAPACITY Max.swing over bed 660mm 800mm 1000mm
Max.swing over cross slide 435mm 545mm 545mm
Max.swing over gap 860mm 1000mm 1200mm
Effective length of gap 280mm
Center Distance 1000\2000\3000\4000mm
Bed Width 400mm
HEADSTOCK Spindle hole 103mm
Spindle nose ISO-D11
Spindle taper Metric 115mm
Spindle speed(Number) (ccw/18)9-1275rpm(cw/6)16-816rpm
FEEDS Longitudinal feeds range 72kinds 0.073-4.066mm/rev
Cross feeds range 72kinds 0.036-2.033mm/rev
Metric threads range 72kinds 0.5-112mm
Inch threads range 72kinds 1/4-56inch
Moudle threads range 36kinds 0.5-7mπ
Diametral threads range 36kinds 4-56D.P
CARRIAGE Max.travel of top slide 110mm
Max.travel of cross slide 325mm
Max.size of toolshank 32*32m2
TAILSTOCK Dia.of tailstock sleeve 90mm
Taper of tailstock sleeve MT6
Max.travel of tailstock 150mm
MOTOR Main drive motor 7.5KW 11KW
Rapid traverse motor 250W
Coolant pump motor 125W
PACKING
L*W*H		 Center Distance(1000mm) 285*115*185cm
Center Distance(2000mm) 385*115*185cm
Center Distance(3000mm) 485*115*185cm
Center Distance(4000mm) 585*115*185cm
N.W/G.W Center Distance(1000mm) 3000/3500kg 3150/3650kg 3300/3700kg
Center Distance(2000mm) 3500/4000kg 3650/4150kg 3800/4200kg
Center Distance(3000mm) 3900/4400kg 4050/4550kg 4200/4600kg
Center Distance(4000mm) 4300/4700kg 4450/4950kg 4600/5000kg
