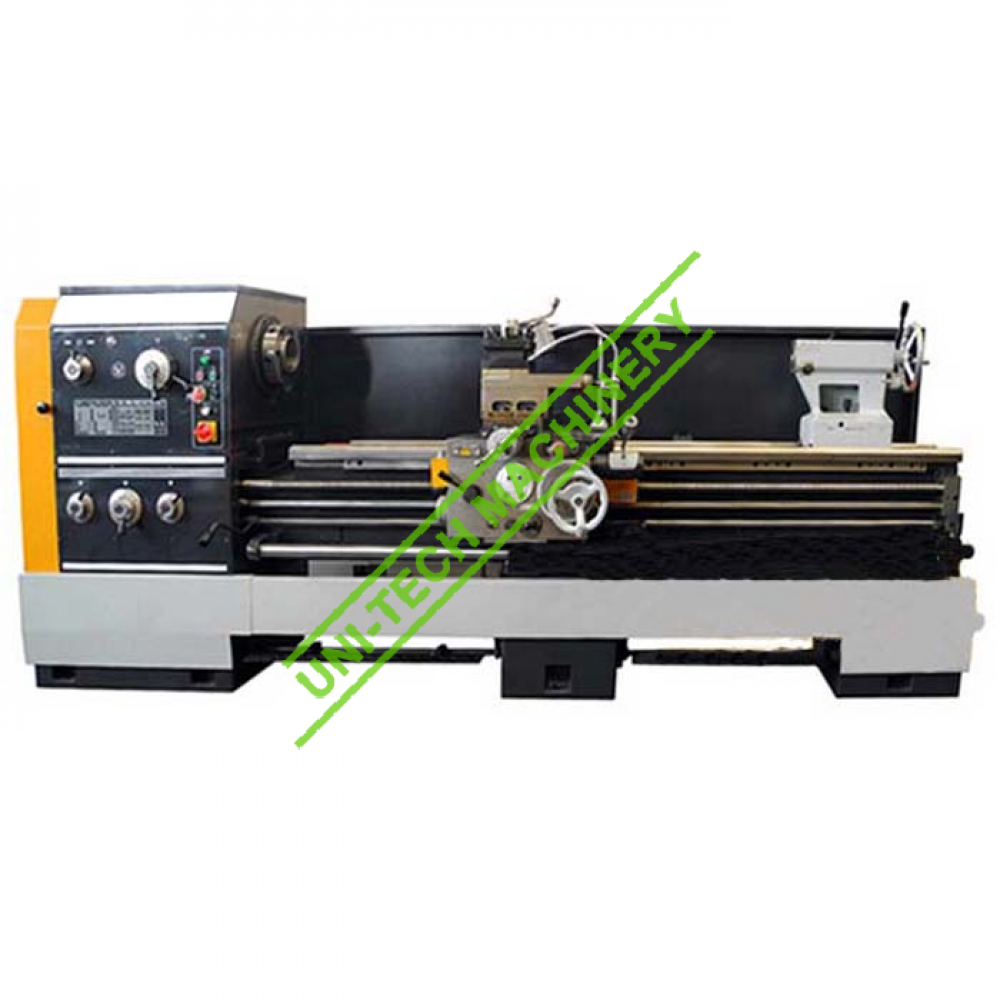

Gap Bed Lathe Machine CS6266C

Perform internal and external turning, taper turning, end facing,and other rotary parts turning;

Threading Inch, Metric, Module and D.P.;

Perform drilling, boring and groove broaching;

Respectively with through-hole spindle bore, that can hold barstocks in larger diameters;

Both Inch and Metric system are used on these series lathes, it 十 easy for people from differentmeasuring systems countries;

There are hand brake and foot brake for users to choose;

Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.

Description

Specifications		CS6240	CS6250B	CS6266B	CQ6280B	CS6250C	CS6266C	CQ6280C
Capacity	Max swing dia.over bed	400mm(16)	500mm(20)	660mm(26)	800mm(32)	500mm(20)	660mm(26)	800mm(32)
	Max swing dia in gap	630mm(24-34)	710mm(28)	870mm(34)	1000mm(40)	710mm(28)	870mm(34)	1000mm(40)
	Max swing dia.over slide	220mm(8)	300mm(12)	400mm(16)	560mm(22)	300mm(12)	420mm(16)	560mm(22)
	Max workpiece length	750 1000 1500 2000 3000mm(30 40 60 80 120 )		1000/1500mm(40/60)	2000/3000mm(80/120)	1000/1500mm(40/60)		2000/3000mm(80/120)
				2000/3000mm(80/120)		2000/3000mm(80/120)
Spindle	Spindle bore diameter	52mm(2)	82mm(3)			105mm(4)
	Tape of spindle nose	CS6240 TSO 702/NO.6 BAY LOCK,OTHER ISO 702 NO.8 CAM LOCK TYPE
	Spindle speed	24steps 9-1600rpm			24 steps 8-1400 rpm	12 steps 36-1000rpm		12 steps 30-1400rpm
	Spindle metor power	7.5kw
Tailstock	Diameter of quill	75mm(3)			90mm(3)
	Max travel of quill	150mm(60)
	Taper of quill(morse)	MT5
Turret	Tool O.D. size	25mm ×25mm(1×1)
Feed	Max.x travel	145mm（5）
	Max.z travel	320mm(13)					310mm(12)	320mm(13)
	x feed range	93kinds 0.028-6.43mm/r				65kinds 0.063-2.52mm/r
	z feed range	93kinds 0.012-2.73mm/r				65kinds 0.027-1.07mm/r
	Metrie threads	48kinds 0.5-224mm				22kinds 1-14mm
	Inch threads	48kinds 72-1.4t.p.i				25kinds 28-2t.p.i
	Modor threads	42kinds 0.5-112 mm				18kinds 0.5-7 mm
	Diametric pitch threads	42kinds 56-1 t.p.i				24kinds 56-1 t.p.i
Other	Cooling pump	0.06kw
	Length	2382/2632/3132/3632/4632mm		2632/3132mm	3365/4365mm	2632/3132mm		3365/4365mm
				3632/4632mm		3632/4632mm
	Width	975mm		1050mm	1340mm	975mm		1340mm
	Height	1230mm		1350mm	1430mm	3365mm	4365mm	1490mm
	Weight	1795/2050kg	2050/2100kg	2400/2600kg	3300/3700kg	2100/2300kg	2200/2400kg	3000/3200kg
		2250/2450/2850kg	2300/2500/3000kg	2800/3000kg		2500/2900kg	2600/3000kg
