Name: Gap Bed Lathe Machine GH1340G/1
SKU: 540
Availability: InStock

Gap Bed Lathe Machine GH1340G/1

Feature

Supersonic frequency hardened bed ways

Precision roller bearing for spindle

High quality steel, ground and hardened gear inside headstock

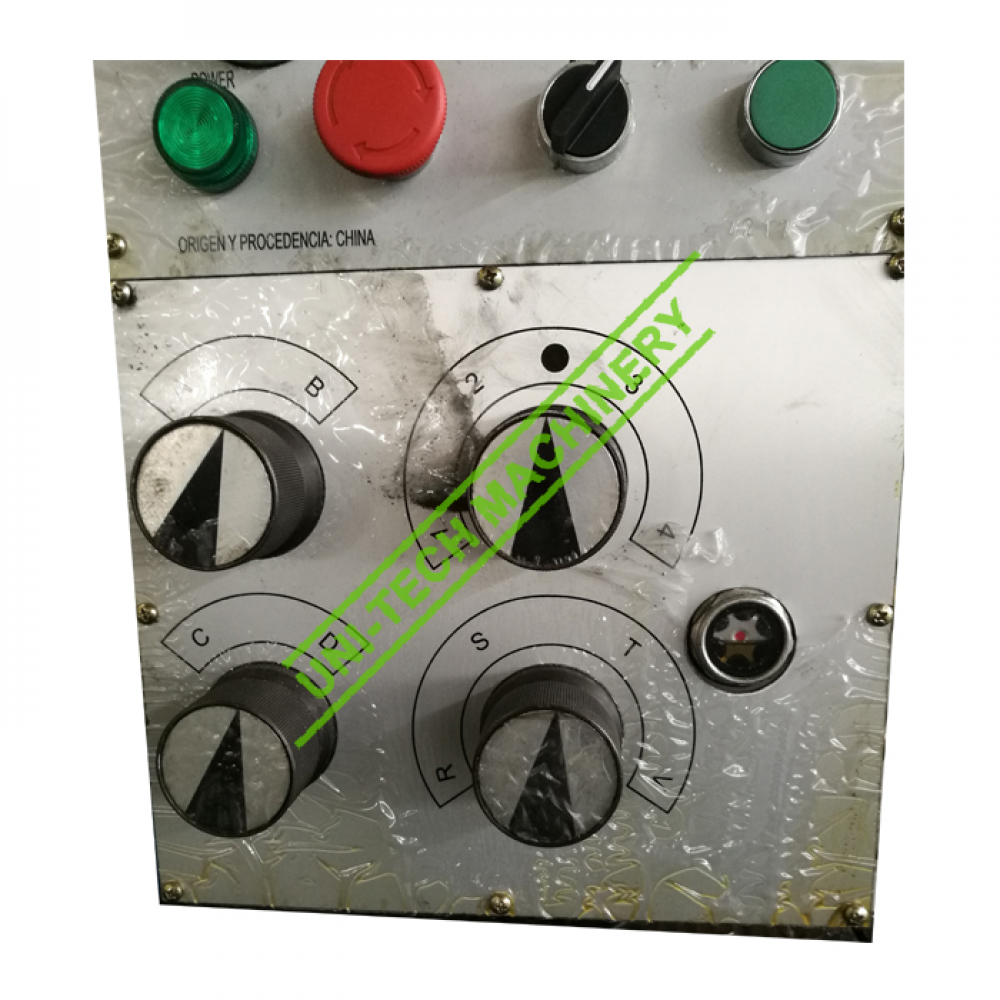

Easy and fast operating gearbox

Enough strong power motor

ASAD4 camlock spindle nose

Various threads cutting function available

Description

MODEL	GH1340G/1
Swing over bed	mm	φ330
Swing over carriage	mm	φ195
Swing over gap	mm	φ476
Width of bed-way	mm	186
Distance between centers	mm	1000
Taper of spindle	M.T.5
Spindle diameter	mm	φ38
Step of speed	8
Range of speed	rpm	70~2000
Head	D1-4
Metric thread	26kinds (0.4~7mm)
Inch thread	34kinds(4~56T.P.I)
Moulder thread	16 kinds(0.35~5M.P)
Diametral thread	36 kinds(6~104D.P)
Longitudinal feeds	mm/r	0.052~1.392 (0.002”~0.0548”)
Cross feeds	mm/r	0.014~0.38 (0.00055”~0.015”)
Diameter of lead screw	mm	φ22(7/8”)
Pitch of lead screw	3mm or 8T.P.I
Saddle travel	mm	1000
Cross travel	mm	170
Compound travel	mm	74
Barrel travel	mm	95
Barrel diameter	mm	φ32
Taper of center	mm	M.T.3
Motor power	Kw	1.5(2HP)
Motor for coolant system’s power	Kw	0.04(0.055HP)
Machine(L×W×H)	mm	1920×750×760
Stand(left) (L×W×H)	mm	440×410×700
Stand(right) (L×W×H)	mm	370×410×700
Machine	Kg	500/560
Stand	Kg	70/75
Loading amount	22pcs/20’container
