Heavy Duty and Horizontal Lathe Machine CW6280A

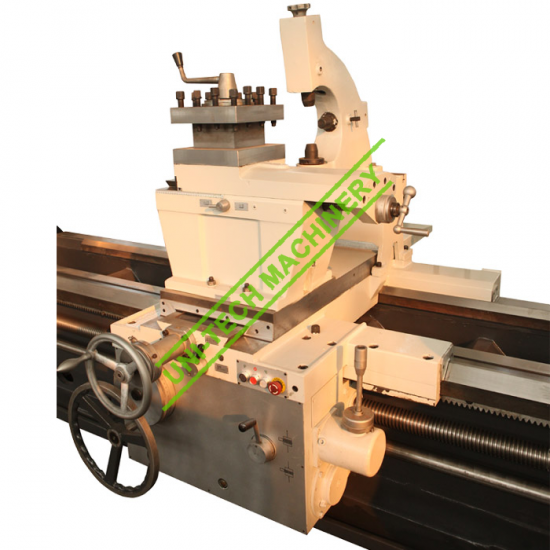

Heavy Duty and Horizontal Lathe Machine CW6280A - Image 2

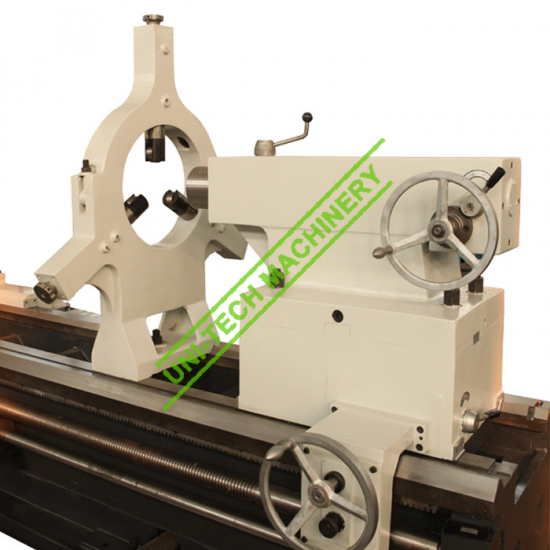

Heavy Duty and Horizontal Lathe Machine CW6280A - Image 3
Heavy Duty and Horizontal Lathe Machine CW6280A - Image 4

Heavy Duty and Horizontal Lathe Machine CW6280A

Main features:

1. The bed guide and gears of spindle box have been processed by hardening and precision grinding with long life and low noise.

2. The spindle system has a good rigidity and high precision.

3. This carriage has the fast forward and retreat feeding device.

4. Hydraulic clutch institutions have been adopted inthe spindle box with smooth start and quick brake.

5. Bed body has stop retreat groove of the tailstock.



Category:
Tags:

Description

MODEL CW6163 CW6180(A) CW61100(A) CW61120(A)
CW6263 CW6280(A) CW62100(A) CW62120(A)
CAPACITY Max swing over bed 630mm 800mm 1000mm 1200mm
Max swing over gap 830mm 1000mm 1200mm 1400mm
Max swing over cross slide 345mm 480mm 680mm 680mm
Center distance 850 1350 1850 2850 3850 4850 5850 7850 9850 11850m
Width of bed 600mm
HEAD STOCK Spindle hole φ105mm (φ130mm, model>=CW6180)
Spindle taper φ120mm 1:20 (φ140mm, model>=CW6180)
Spindle speeds 0.75-1000r/min 5.5-730r/min (grade 18)
GEAR Box-THREADS &FEEDS Metric threads mm 1-240mm (52)
Inch threads TPI 1-14 (26)
Moudle threads mm 0.5-120mm (53)
Diametral threads DP 1-28 (24)
Longitudinal feeds range 0.1-24.3mm/r
Cross feed range 0.05-12.15mm/r
Rapid feed: long/cross 4000mm/min,2000mm/min
TOOL-POST Tool section 32*32mm
CARRIAGE Cross slide travel 370mm 430mm
Compound rest travel 200mm(A Auto feed 170mm)
TAILSTOCK Sleeve diameter 100mm 120mm
Sleeve taper Morse 6#
Sleeve travel 240mm
STEADY REST Steady rest 20-200mm
Follow rest 20-135mm
MOTOR Main motor 11kW or 15kW
Rapid feed motor 1.1kW
CW6163.Net weight(kg) 1000mm 4600kg 3000*1170*1250mm
Dimension (L*W*H) 1500mm 5000kg 3500*1170*1250mm
2000mm 5200kg 4000*1170*1250mm
3000mm 5800kg 5000*1170*1250mm
4000mm 6400kg 6000*1170*1250mm
5000mm 7000kg 7000*1170*1250mm
6000mm 7600kg 8000*1170*1250mm
8000mm 9000kg 10000*1170*1250mm
10000mm 10400kg 12000*1170*1250mm
12000mm 11700kg 14000*1170*1250mm
