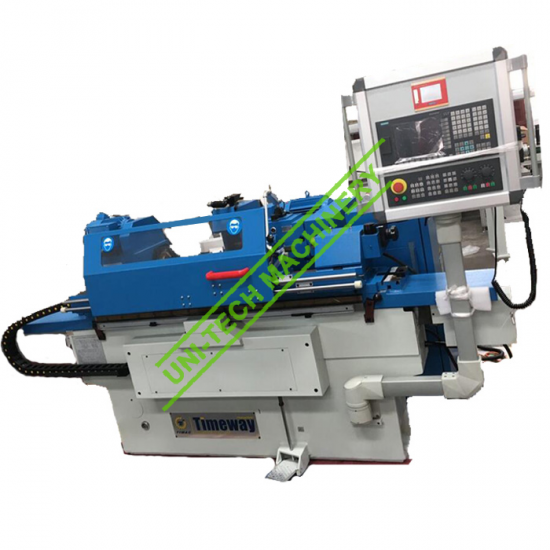

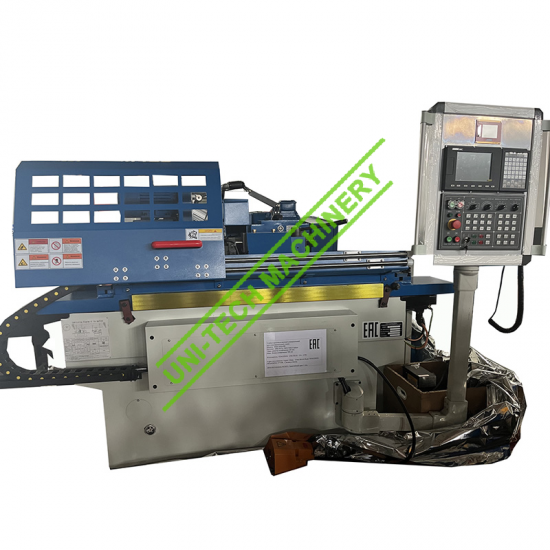

Name: CNC Cylindrical Grinding Machine
SKU: 1355
Availability: InStock

CNC Cylindrical Grinding Machine

Description

MODEL MKE1420/500
Max. Grinding length： 500mm
Max. Grinding diameter： 200mm
Min. Grinding diameter： 8mm
Center height： 135mm
Max. Workpiece’s weight： 50Kg
Feed of wheel stock (X axis）： 0.05～400mm/min
Feed of worktable （Z axis）： 0.1～4000mm/min
Min. resolution of CNC axes 0.001mm
Size of grinding wheel: Φ400 x 50 x φ203mm or Φ280 x 50 x φ203
Wheel peripheral speed (m/s) 35m/s
Wheel spindle speed (r/min)： 1660r/min

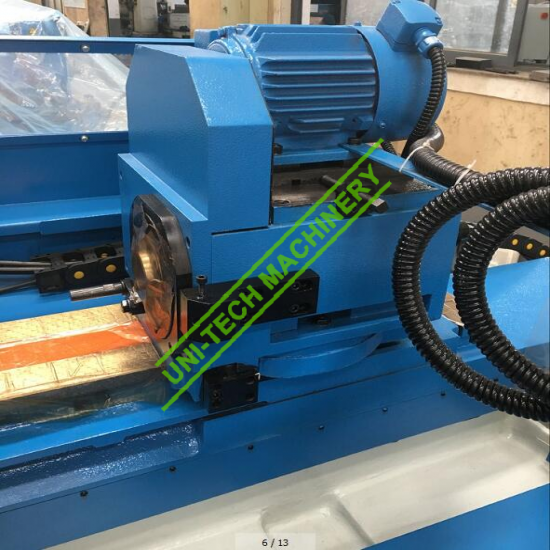

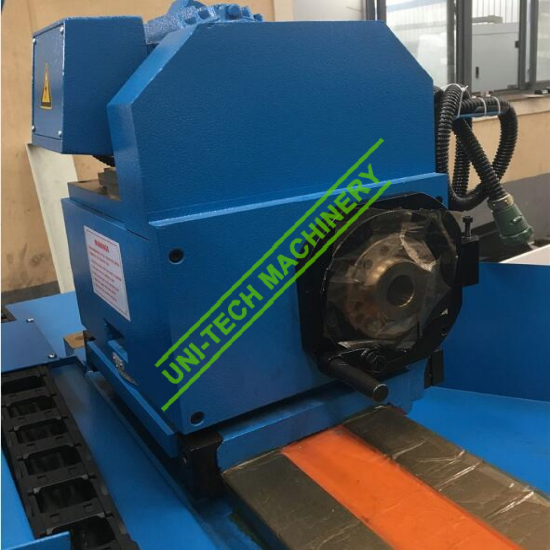

Work head Spindle speeds (r/min) stepless
Work head center (Morse) #4
Tailstock center (Morse) #4

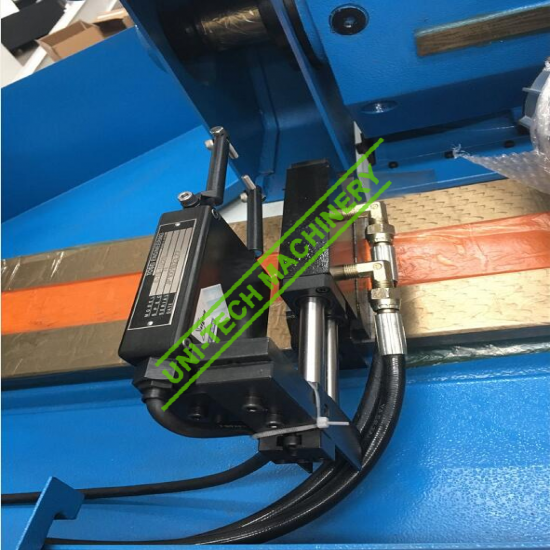

tail stock sleeve movement 30mm
Maximum rotation angle of worktable: -9 to 3 degree

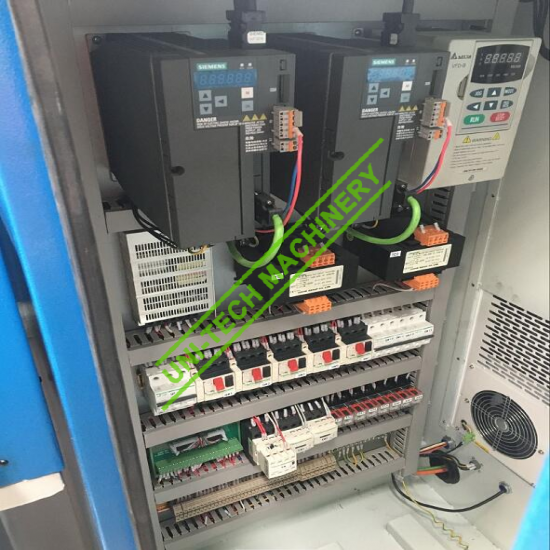

Total power 9.22KW
Wheel stock motor 4.0KW
Headstock motor 0.75KW
X axis servo motor 1.8KW
Z axis servo motor 1.8KW
Oil pump motor 0.75KW
Cooling pump motor 0.12KW
Hydraulic and lubrication system
Oil pump
main oil pressure adjustment 6L/min、2.5MPa 0.9～1.1Mpa
Lubricating oil pressure adjustment 0.05～0.1Mpa
Cooling system
Cooling pump 50L/min
Machine Dimension
L×W×H 2000×1450×1800
L×W×H （With automatic loading and unloading device） 3000×1450×2100
Machine weight 2500）kg
