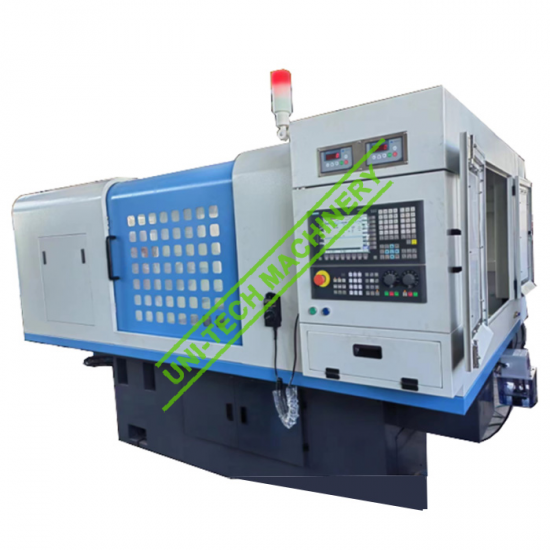

Name: CNC Internal Grinding Machine M2110CNC
SKU: 1386
Availability: InStock

CNC Internal Grinding Machine M2110CNC

Feature
NC control with English display
Belt driven spindle
lighting system LED type, IP65
facility of auto lubrication system for guide ways and screw
coolant tank
coolant flow from work spindle end facility
backlight in operator panel
cross roller guide ways for feeding axis
machine should be suitable for tool rom work and production work
roll dressing system for profile dressing

Description

Model	M2110CNC
working accuracy
roundness of inner hole	≤ 0.002mm
cylindricity of inner hole	≤ 0.004mm
roughness of inner hole	≤ Ra0.4
capacity
inner grinding diameter	5— Φ100 mm
grinding depth	150mm
workpiece max swing diameter	Φ350mm
weight of job on chucking	50mm
job holding length	200mm
work head swivel angle	0°～+20°
work head spindle taper	MT4
spindle speed	180-500r/min
grinding wheel speed	24000r/min
table travel	Z axis 400mm/X axis 100mm
table transverse speed：	Z axis /X axis 0.1～5m/min
wheel head （X axis ）minimum resolution	0.001mm
table （Z axis ）minimum resolution	0.001mm
wheel head （X axis ） position accuracy	0.01mm
wheel head （X axis ）repeat position accuracy	0.003mm
table （Z axis ） position accuracy	0.01mm
table （Z axis ）repeat position accuracy	0.005mm
work head motor	1.5KW
grinding wheel motor	1.5KW
coolant motor	200W
central lubrication motor	200W
hydraulic system motor	1.5kw
total power	20kw
dimension	2500x1700x1150mm
weight	3000kg
