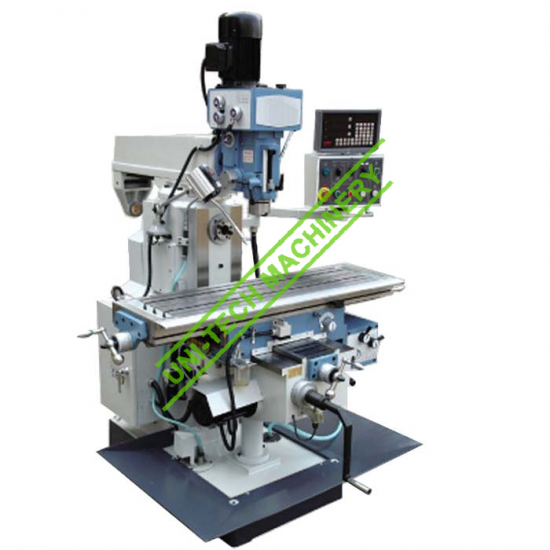

Drilling and Milling Machine
Main Features:
1. Complete with automatic table feed in X,Y and Z-axis including rapid feed
2. Z-axis with auto lifting
3. Surface treated, large table includes T-slots
4. Heavy cast-iron machine stand eliminates vibrations
5. Dovetail guiding in all three axes – adjustable by gibs
6. Positioning motor for z-axis comes standard
7. Wide speed and feed range
8. Ideal for single and small-series production
9. Tapered roller bearings ensure high concentricity
10. Left and right rotation allows thread cutting
Description
| Model | ZX6350A | ZX6350ZA | |
| Max. drilling dia. (mm) | 50 (2”) | 50 (2”) | |
| Spindle taper | M.T.4;ISO30 | ISO40 | |
| Max. horizontal milling dia. (mm) | 100 | 100 | |
| Max. vertical milling dia. (mm) | 25 | 25 | |
| Max. boring dia. (mm) | 120 | 120 | |
| Distance spindle to table surface (mm) | 150-650 | 80-460 | |
| Spindle speeds range (r.p.m.)(steps) | Vertical | 115-1750(8) | 115-1750(8) |
| Horizontal | 40-1300(12) | 40-1300(12) | |
| Spindle travel (mm) | 120 | 120 | |
| Table size (mm) | 1250×320 | 1120×280 | |
| Table travel (mm) | 600×300 | 600×300 | |
| Motor | Vertical | 0.8/1.5 | 0.8/1.5 |
| Horizontal | 2.2 | 2.2 | |
| N.W/G.W | 1400/1550 | 1300/1450 | |
