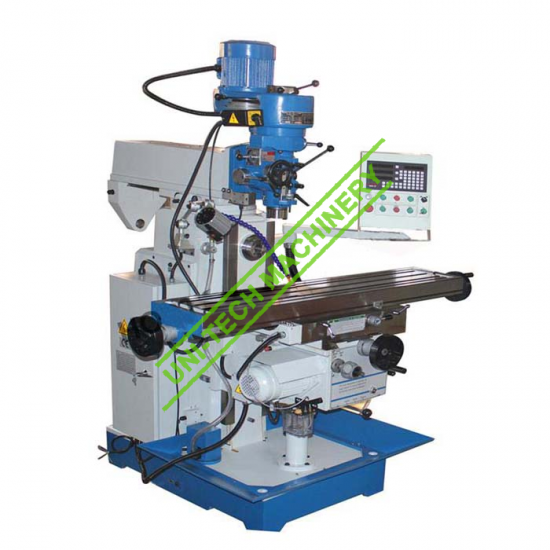

Name: Drilling and Milling Machine HV28B
SKU: 1195
Availability: InStock

Drilling and Milling Machine HV28B

Main Features:

1. Complete with automatic table feed by SERVO motor.

2. Surface treated, large table includes T-slots

3. Heavy cast-iron machine stand eliminates vibrations

4. Dovetail guiding in all three axes – adjustable by gibs

5. Wide speed and feed range

6. Gear-drive mill head., rotate left-right 45 degree.

7. Turret mill head with auto-feeding spindle available.

8. Vertical and Horizontal Milling.

9. Left and right rotation allows thread cutting

10. For horizontal machining, the top beam including the head can be rotated by

+-180 degree on column. Spindle speed change by gear.

Description

Specification	Unit	HV28B	HV28B-1
Table size	mm	1200X280
Table travel(X. Y. Z)	mm	620/260/400
T-slots(NO: /width/pitch)	mm	3/14/70
Spindle nose to table surface	mm	90-490	70-470
Distance between horizontal spindle and table surface	mm	0-280
Spindle speed range	r/min	8steps,	Standard:
		115-1750 (V)	16steps80~5520
			Optional:
			variable speed
		12steps, 45-1350 (H)
Spindle taper		MT4(V)	R8/IS040(V)
		IS040(H)
Automatic feed of spindle	Manual	0.04/0.08/0.15
Table feed	mm/min	30-855
Take-off and landing platform feed	mm/min	9-270
Distance between horizontal spindle and ram surface	mm	215
Main motor power	kw	1.85/1.5(V)	2.2(V)
		2.2(H)
Rapid motor power	kw	0.75
Overall size	mm	1750x1450x2200
Net weight	kg	1420
