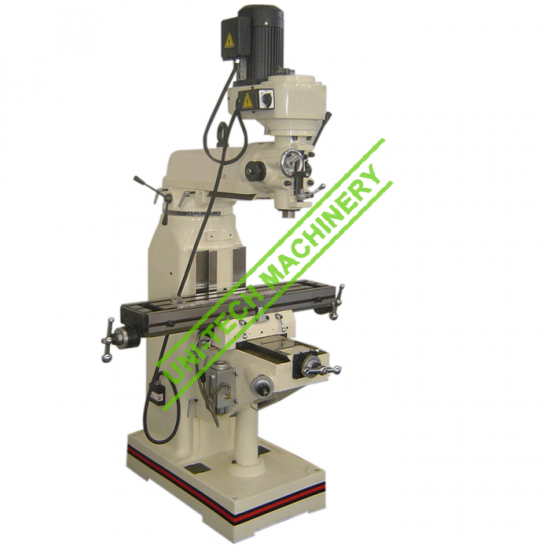

Turret Milling Machine UTM-OS,MDM-2SS

Main features:

1. Machine base, knee and table are made by MEEHANITE cast iron construction

2. Equipped with cooling system

3. Slide ways are hardened, precision ground

4. All castings are FC25 high quality material, anneal treated to relieve internal stress

5. Centralized control panel minimizes operation fatigue while permitting efficient operation

6. The spindle runs on precision bearings for long term high speed running, heavy duty cutting and maximum stability

7. The gears from the head assembly are hardened and precision ground

8. Milling head can tilts 90 degrees right and left

9. X,Y,Z axis are dovetail way

Description

Item	UTM-OS	UTM-0SS	UTM-0VS	UTM-0EVS	MDM-2SS	MDM-2VS	MDM-2EVS	MDM-3SS	MDM-3VS	MDM-3EVS
Drilling capacity in cast iron (mm)	15	18	15	18
Drilling capacity in steel (mm)	13	15	13	15
Capacity face milling (mm)	75/5
Capacity end milling (mm)	20/6
Single taper	R8	R8/NT-30
Diameter of quill (mm)	86
Number of spindle speeds	10	16	Variable	Electrical variable	16	Variable	Electrical variable	16	Variable	Electrical variable
Range of spindle speeds(50HZ)(RPM)	100-1250	65-4550	50-3500	0-2000	65-4550	50-3500	0-4000	65-4550	50-3500	0-4000
Range of spindle speeds(60HZ)(RPM)	120-1500	80-5440	60-4200	0-2000	80-5440	60-4200	0-4000	80-5440	60-4200	0-4000
Number of power feeds	None	3	3	None	3
Spindle travel (mm)	127
Head movements (L to R)	90
Head tilt	None				45
Max. distance spindle to table (mm)	25-380	15-370		25-380	45-450			75-485
Max. distance spindle to column (mm)	400				440			690
Min. distance spindle to column (mm)	134				213			250
Collet capacity (mm)	3-16				3-16
Size of table (mm)	200X910				230X1245			254×1115
Longitudinal table travel/X-axis (mm)	560				730			610
Crol table travel/Y-axis	240				315			400
Number of T-slots	3				3
T-slot size (mm)	16				16
T-slot centers (mm)	64				64
Max. weight of workpiece (kg)	250				330			380
Travel of knee (mm)	350				405			410
Overarm travel (mm)	266				227			440
Overall dimensions WxDxH (mm)	1400X1320X1950				1670X1600X2200			1570x1560x2200
Horse power for main motor (kw/hp)	1.1(1.5)	2.2(3)		1.5(2)	2.2			2.2(3)
N.W/G.W (kg)	730/840	785/895	785/895	800/900	1000/1150	1000/1280		1130/1280	1185/1335	1190/1350

Item	MDM-4SS	MDM-4VS	MDM-4EVS	MDM-4HS	MDM-4HVS	MDM-4HEVS	MDM-5SS	MDM-5VS	MDM-5EVS
Drilling capacity in cast iron (mm)	18			24
Drilling capacity in steel (mm)	15			20
Capacity face milling (mm)	75/5			100/5
Capacity end milling (mm)	20/6			20/6
Single taper	R8/NT-30			NT-40
Diameter of quill (mm)	86			105
Number of spindle speeds	16	Variable	Electrical variable	10	Variable	Electrical variable	8	Variable	Electrical variable
Range of spindle speeds(50HZ)(RPM)	65-4550	50-3500	0-4000	70-3600	50-3000	0-4000	70-3600	50-3000	0-4000
Range of spindle speeds(60HZ)(RPM)	80-5440	60-4200	0-4000	80-4300	60-3600	0-4000	80-4300	60-3600	0-4000
Number of power feeds	3
Spindle travel (mm)	127
Head movements (L to R)	90
Head tilt	45						None
Max. distance spindle to table (mm)	80-465						80-500
Max. distance spindle to column (mm)	620						645
Min. distance spindle to column (mm)	260						130
Collet capacity (mm)	3-22
Size of table (mm)	254×1270						305×1370
Longitudinal table travel/X-axis (mm)	700
Crol table travel/Y-axis	380						400
Number of T-slots	3
T-slot size (mm)	16
T-slot centers (mm)	64
Max. weight of workpiece (kg)	380						420
Travel of knee (mm)	385						420
Overarm travel (mm)	360						515
Overall dimensions WxDxH (mm)	2433x1750x2200						2750x2030x2340
Horse power for main motor (kw/hp)	2.2(3)						3.75(5)
N.W/G.W (kg)	1310/1490	1365/1545	1380/1560	1320/1500	1375/1555	1390/1570	1650	1675/1875
