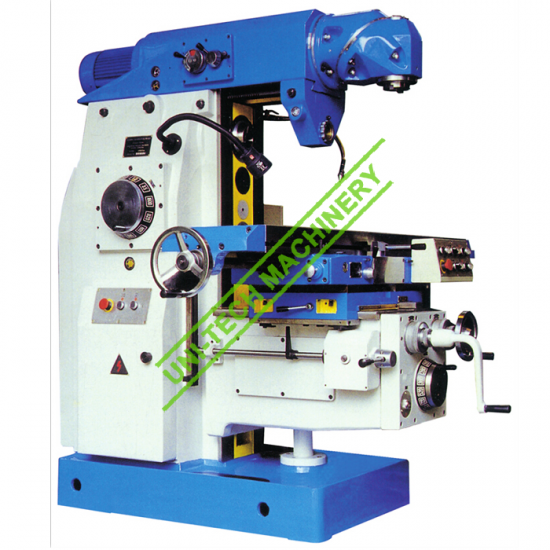

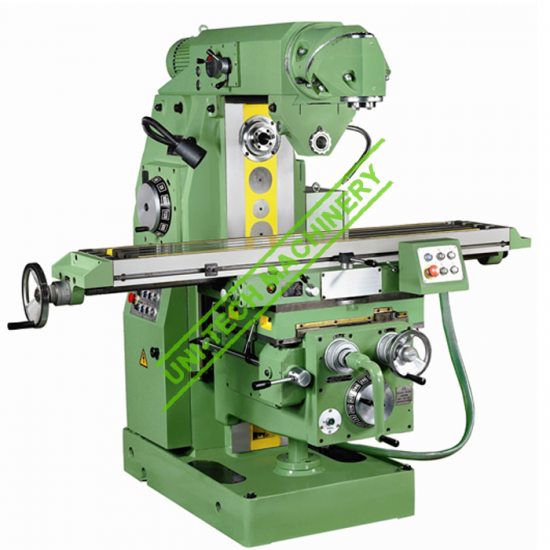

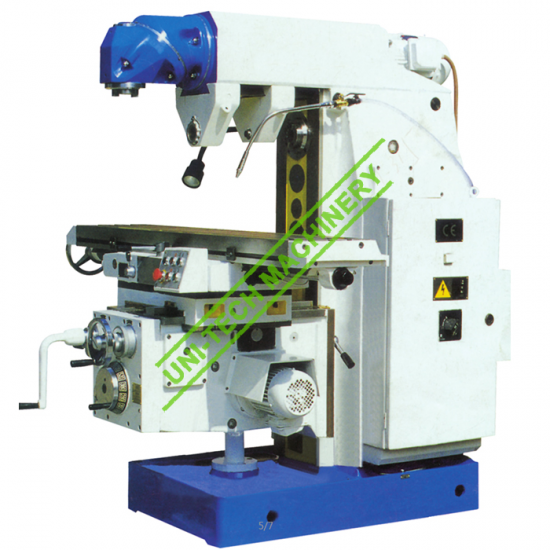

Universal Milling Machine LM1260
Main Features：
1. Machine frame features a box-shaped, heavy-ribbed construction.
2. This design allows the machine to absorb all static and dynamic forces ensuring maximum rigidity.
3. Ground gears ensure very quiet operation

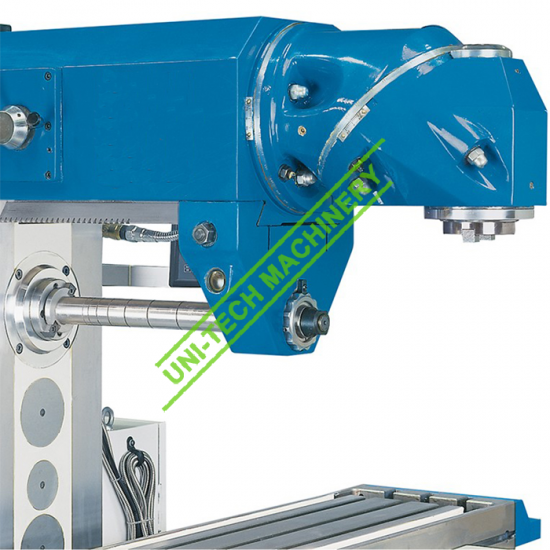

4. Cutterhead swivels for horizontal, vertical and angular cutting high intrinsic rigidity convenient lay out of all controls
5. Automatic feeds and rapid feeds on all 3 axes
6. Universal cutter head on 2 levels
7. Worktable rotates ± 45°
8. Simultaneous machining of a workpiece with horizontal and vertical spindle is possible
Description
| Model | Unit | LM-1260 |
| Table surface | mm | 300×1500 |
| Numbers, width & spacing between T – slot | mm | 3×18×70 |
| Max longitudinal travel | mm | 780 |
| Max transverse travel | mm | 235 |
| Max vertical travel | mm | 400 |
| Travel of arm | mm | 470 |
| Swivel angle of the milling head | degree | ±360° |
| Max rotary angle of table | degree | ±45° |
| Level spindle taper | taper | 7:24 NO:40 |
| Milling head spindle taper | taper | 7:24 NO:40,Morse NO:3# |
| Level spindle grade of speed | steps | 12 |
| Level spindle range of speed | rpm | 35-1600 |
| Milling head spindle grade of speed | steps | 8 |
| Milling head spindle range of speed | rpm | 67-1600 |
| Grade of the work-table feeds | steps | 14 |
| Range of feed speeds | mm/min | 12-720 ,4-240 mm/min |
| Speed of rapid travels longitudinal, transverse, vertical | mm/min | 2100 mm/min,700 mm/min |
| Main drive motor milling head spindle | kw | 2.2 |
| Main drive motor level spindle | kw | 4 |
| Feed motor | kw | 0.75 |
| Coolant pump | w | 40 |
| Net weight of machine | kg | 2750 |
| Overall dimensions (L×W×H) | mm | 1535×1935×1728 |
